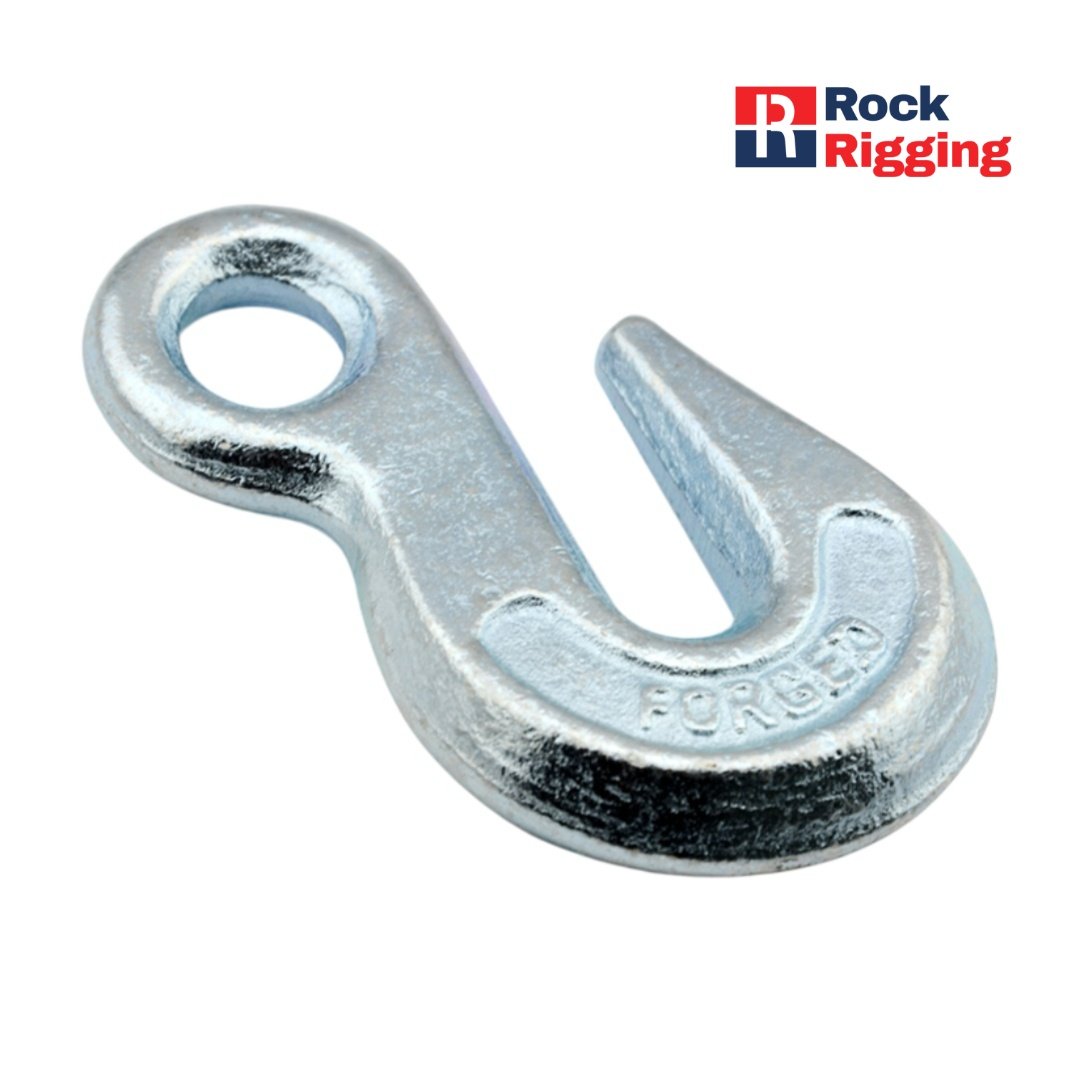

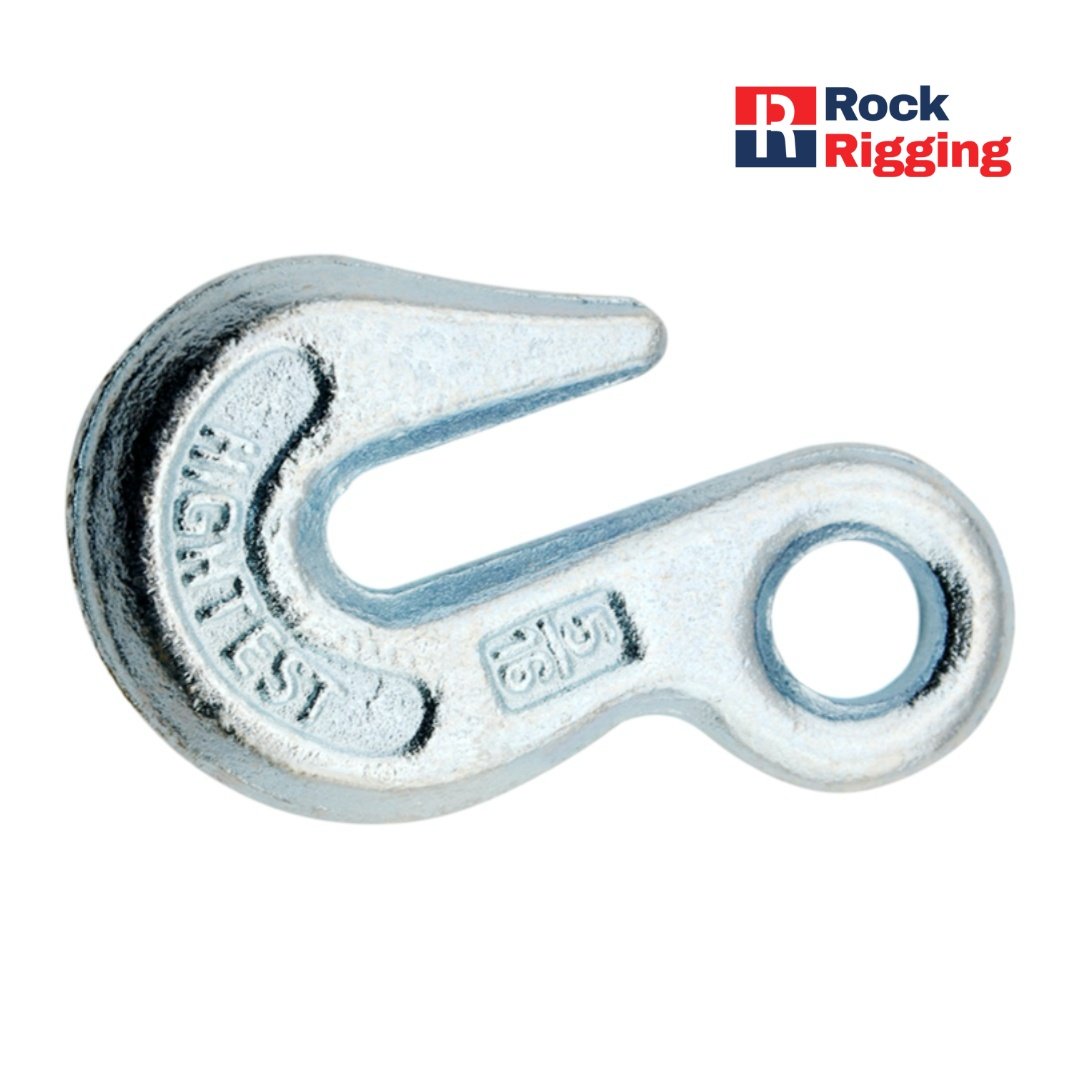

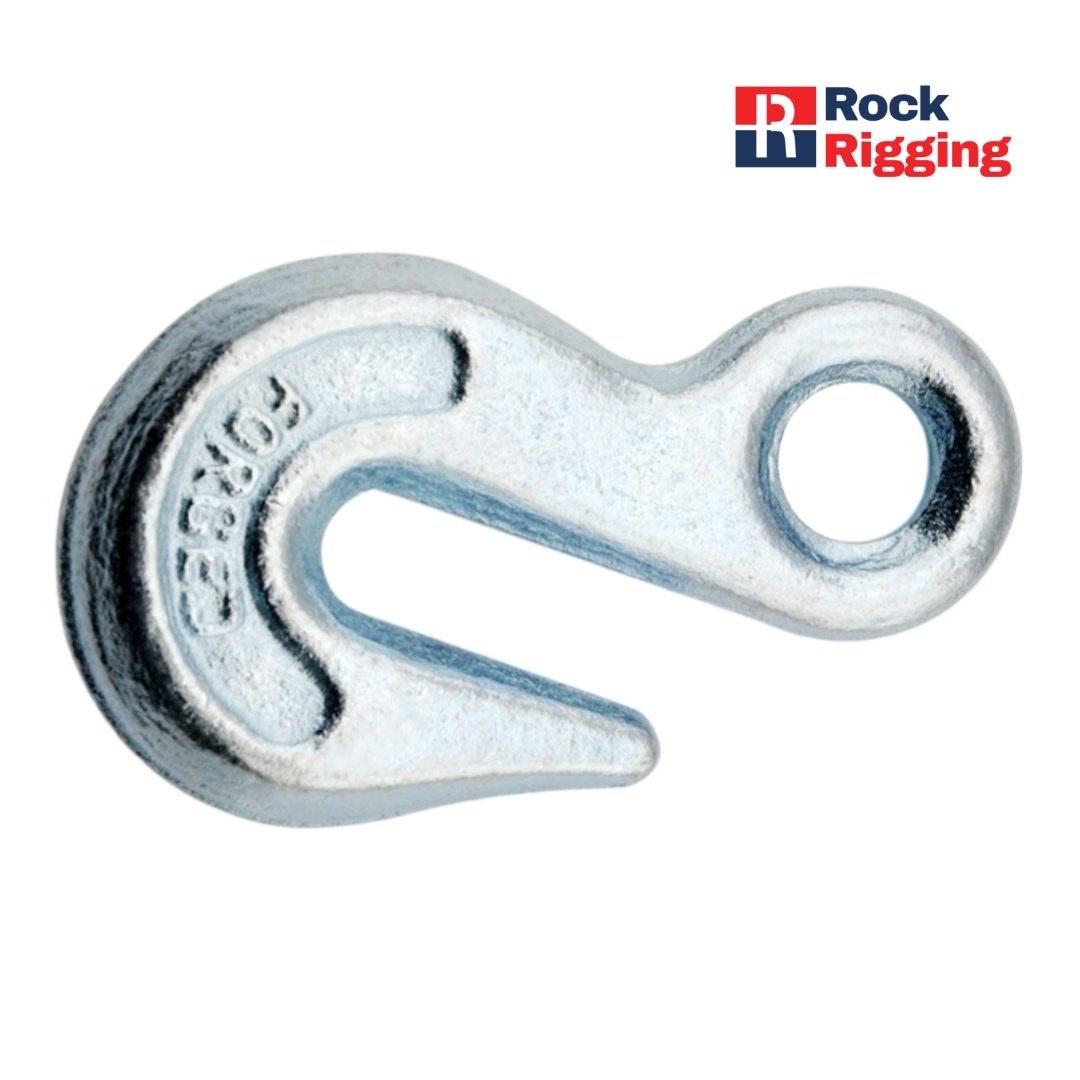

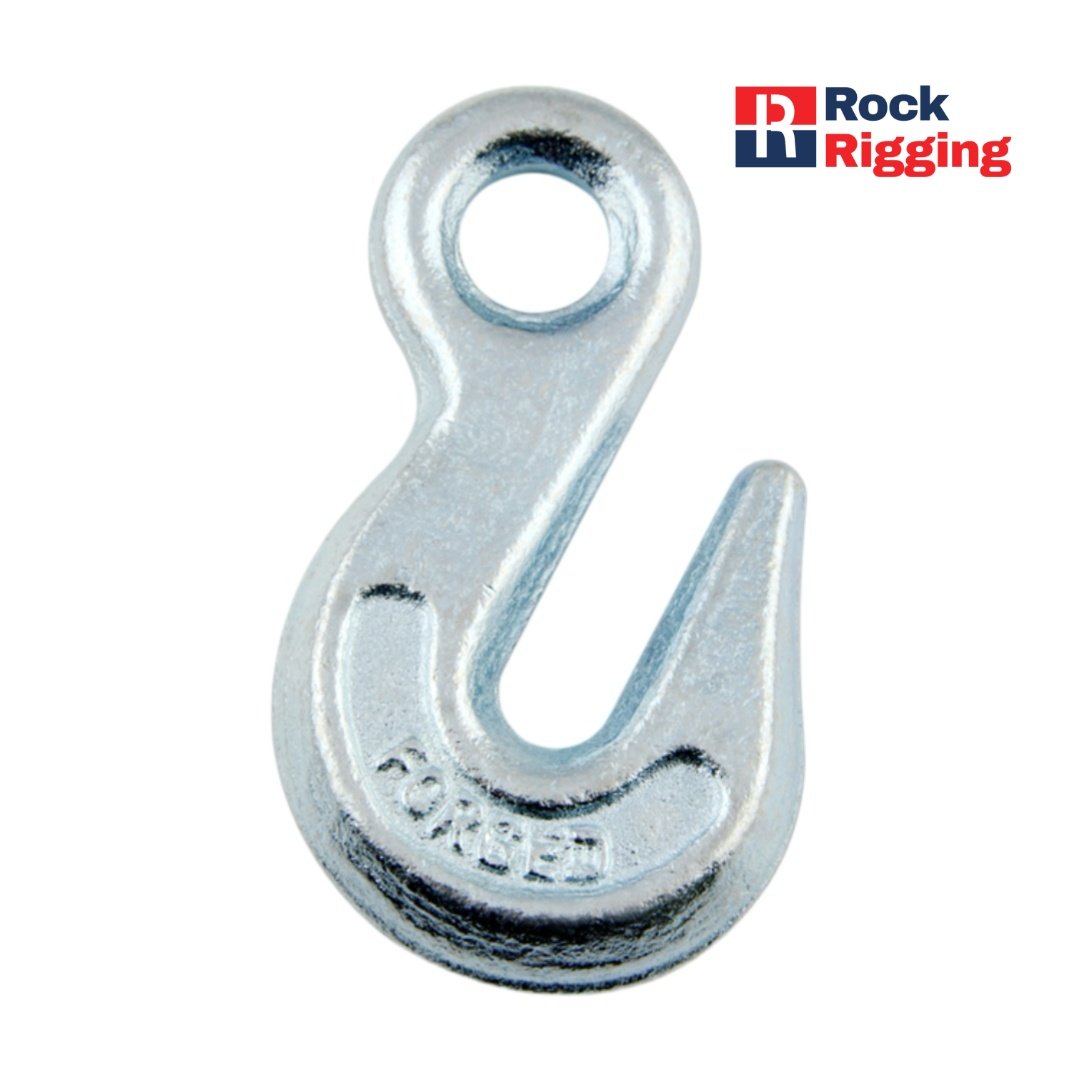

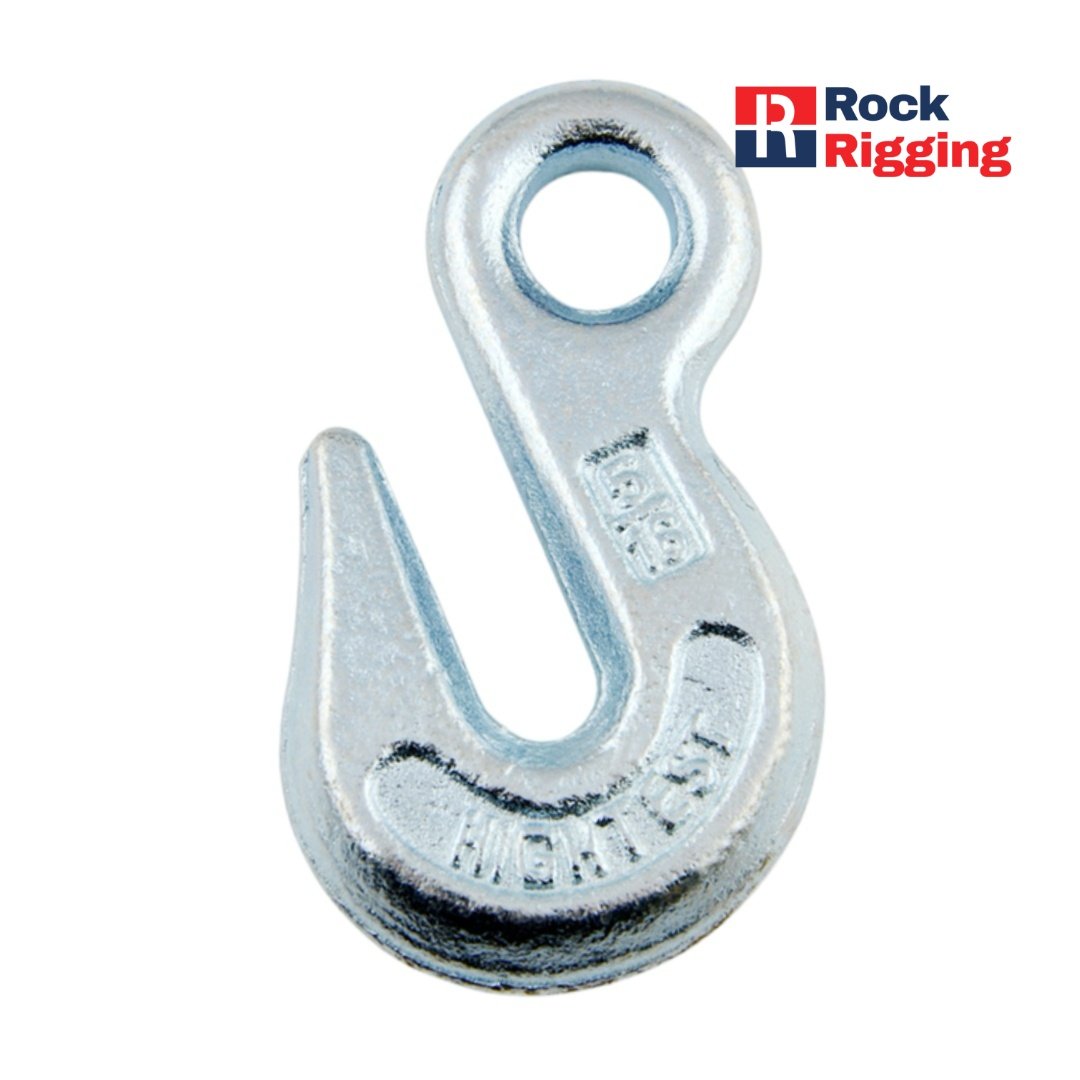

US Type Eye Grab Hook Electro Galvanized #RRHK007

Features:

  • Material:45# Carbon Steel or 40Cr Alloy Steel
  • Technology: Drop Forged
  • Surface Finish: Powder Coated / Electro Galvanized
  • Ultimate Load:4 times of the WLL (Working Load Limit)
  • Class:Carbon Steel G43,Alloy Steel G70
  • WARNING: Do not exceed the Working load limit.

Main Applications:

  • Construction sites
  • Marine and offshore lifting
  • Industrial manufacturing
  • Warehousing and logistics
  • Material handling and transportation

Partner with Rock Rigging:

  • Low MOQ: Small trial orders are welcome.
  • Fast Lead Time: Quick production & delivery.
  • OEM & Customization: Logo, packaging, and special sizes available.
  • Strict Quality Control: 100% inspection before shipment
  • Global Export Experience: Serving 30+ countries
  • 24H Quick Response: Professional sales support.
用于产品页面
SKU： RRHK007 分类： 品牌：

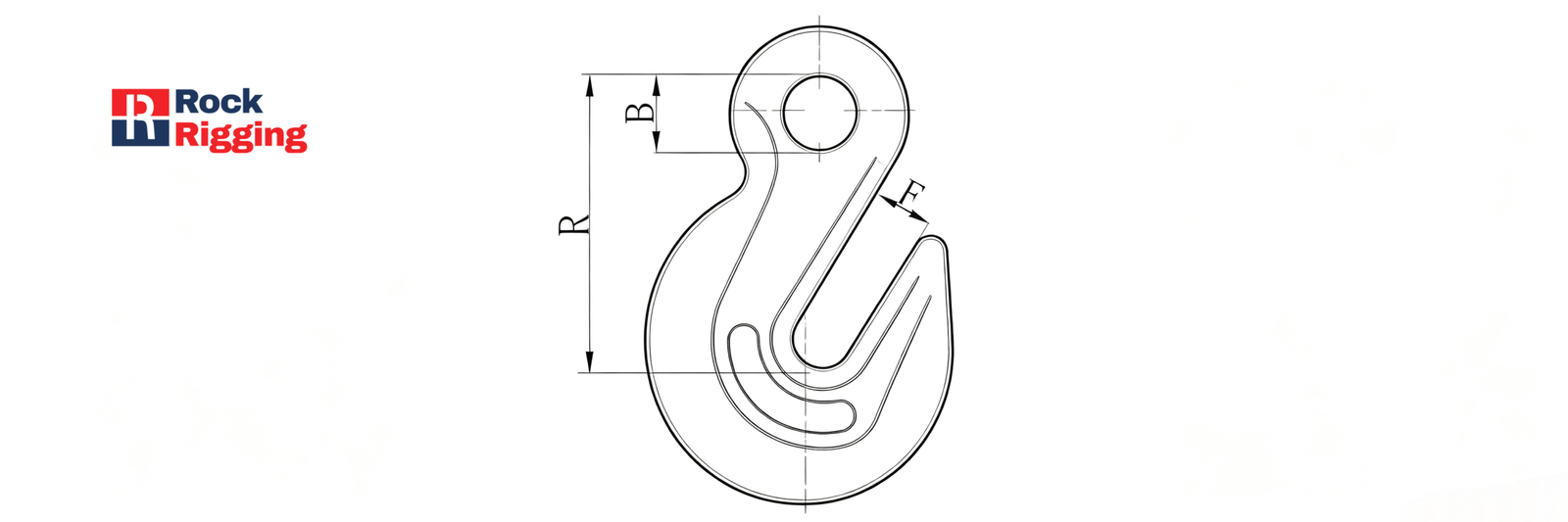

Size(in) WLL(lbs)‑H‑323 WLL(lbs)‑A‑323 B(in) E(in) R(in) Weight(lbs)
1/4 2600 3600 0.50 0.34 1.97 0.28
5/16 3900 5400 0.56 0.44 2.25 0.45
3/8 5400 7500 0.66 0.50 2.56 0.79
7/16 7200 10000 0.75 0.56 2.94 1.19
1/2 9200 12750 0.88 0.66 3.38 1.80
5/8 12750 19000 1.06 0.78 4.11 3.30
3/4 18500 27000 1.38 0.94 5.16 6.00

Noted:

Units: Dimensions in inches (in); WLL in tons (lbs); weight in pounds (lbs)

H‑323‑Carbon Steel; A‑323‑Alloy Steel
