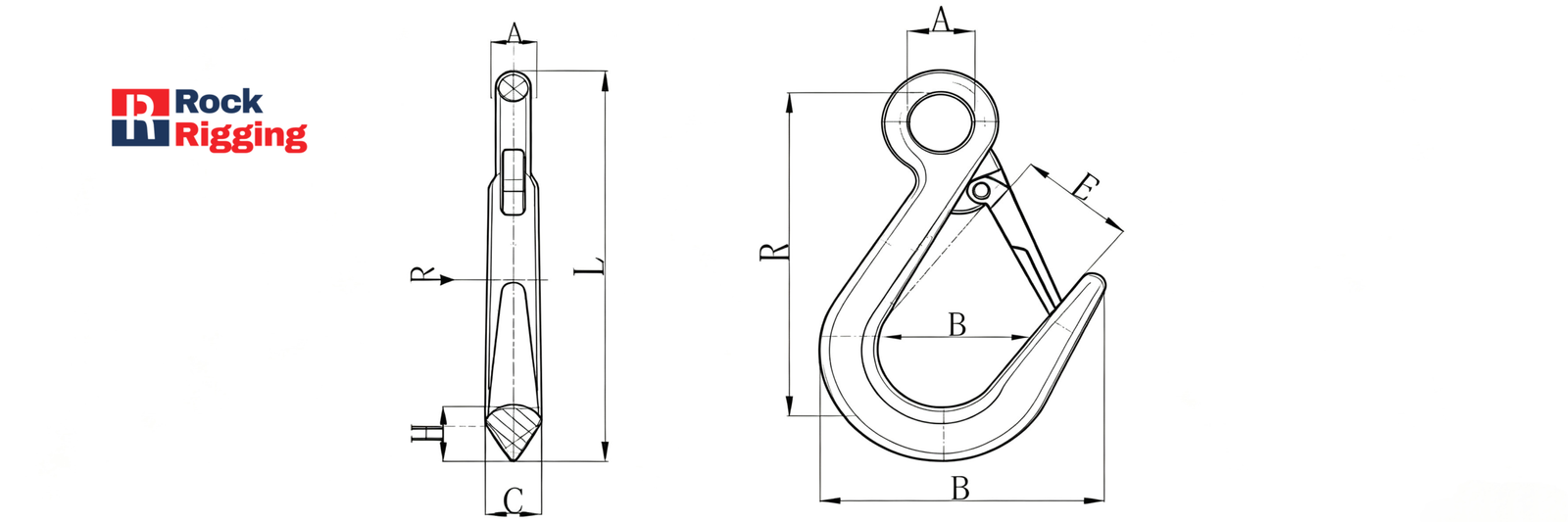

| Size(lbs) | WLL(t) | B.L(t) | A(mm) | B(mm) | C(mm) | L(mm) | R(mm) | E(mm) | H(mm) | Weight(lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5000 | 2.27 | 4.4 | 23 | 97 | 16 | 162 | 133 | 37 | 20.6 | 1.10 |
| 7000 | 3.17 | 6.2 | 22 | 108 | 20.3 | 168 | 133.5 | 40 | 24 | 1.63 |
Noted:
Units: Dimensions in inches (in); WLL in tons (t); weight in pounds (lbs)
Hooks

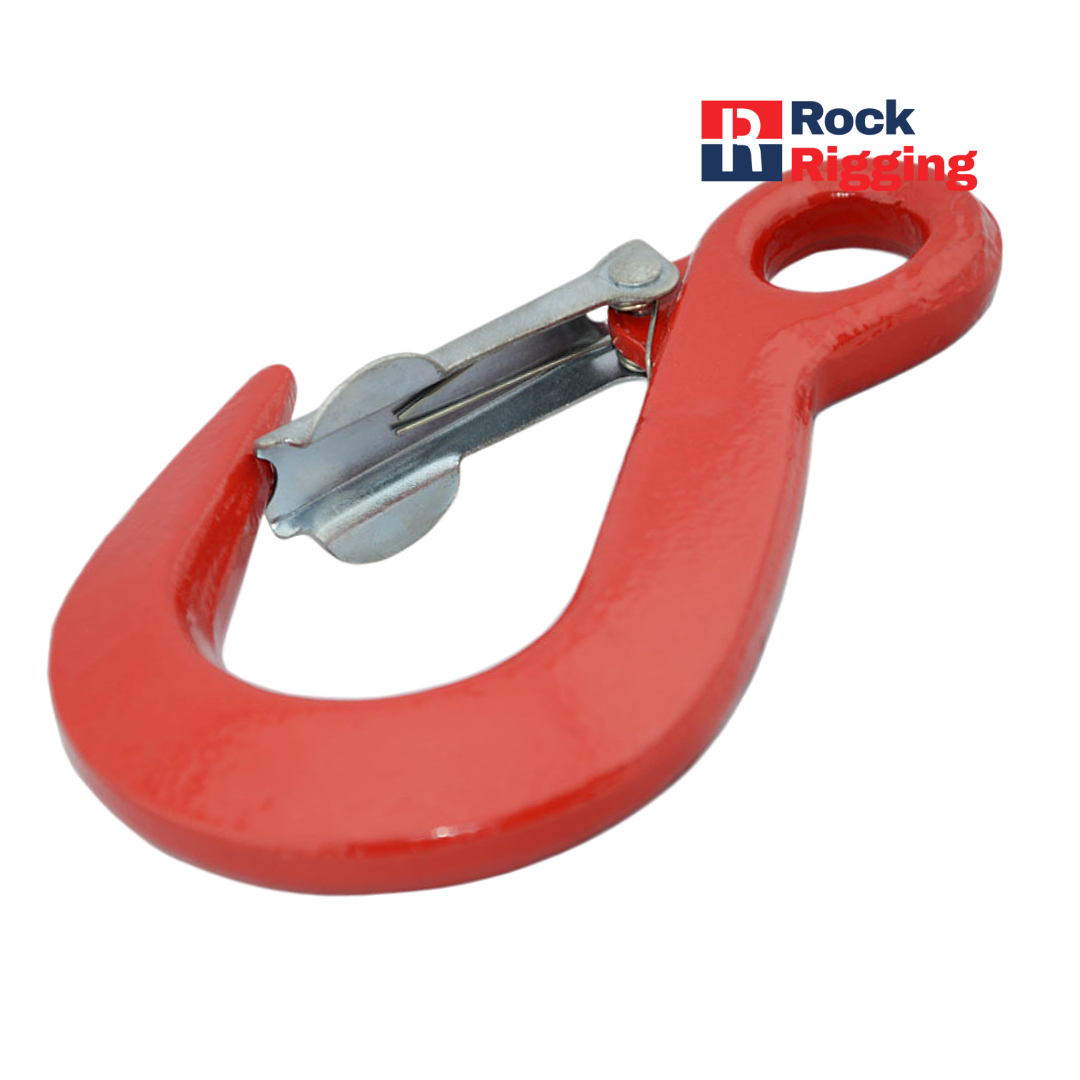

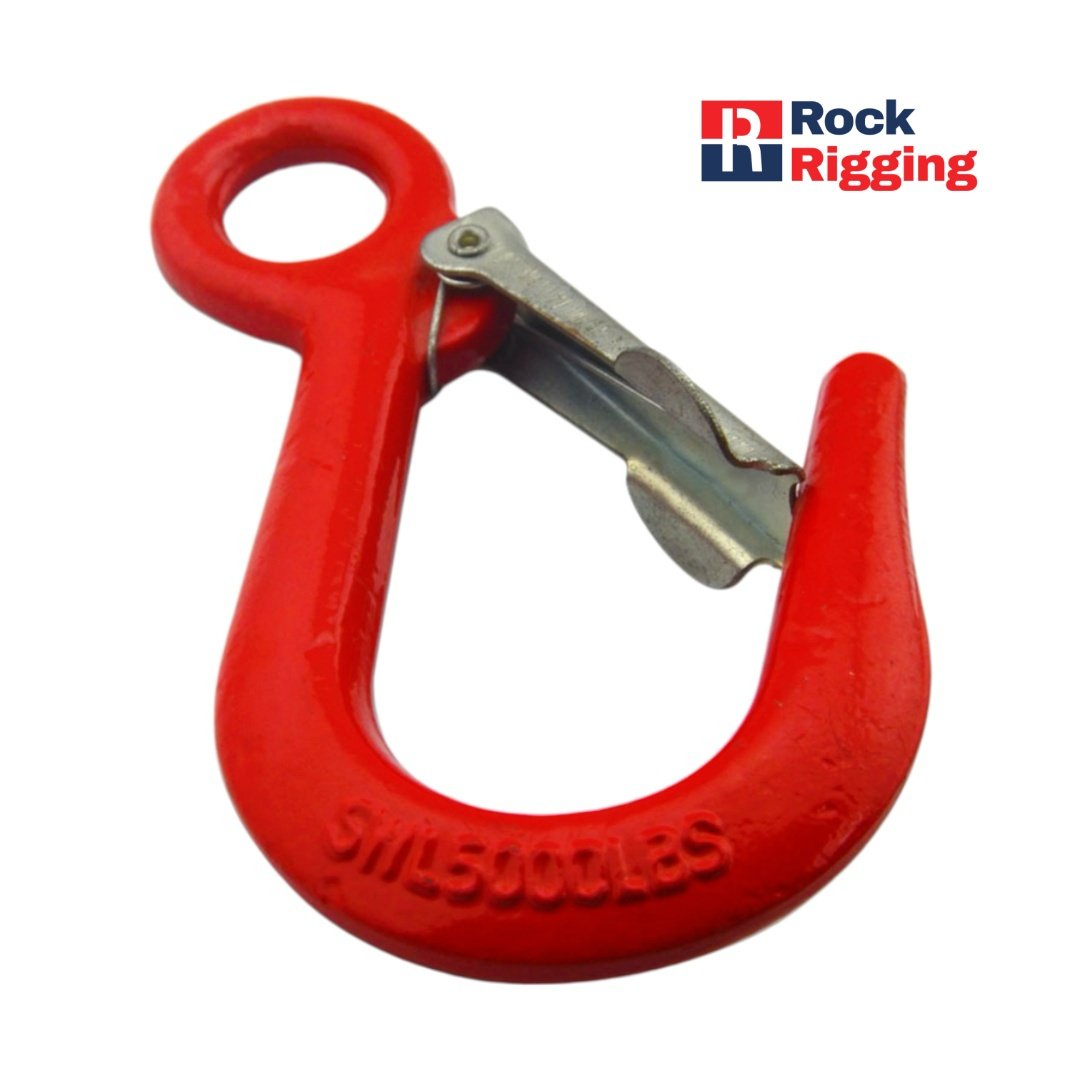

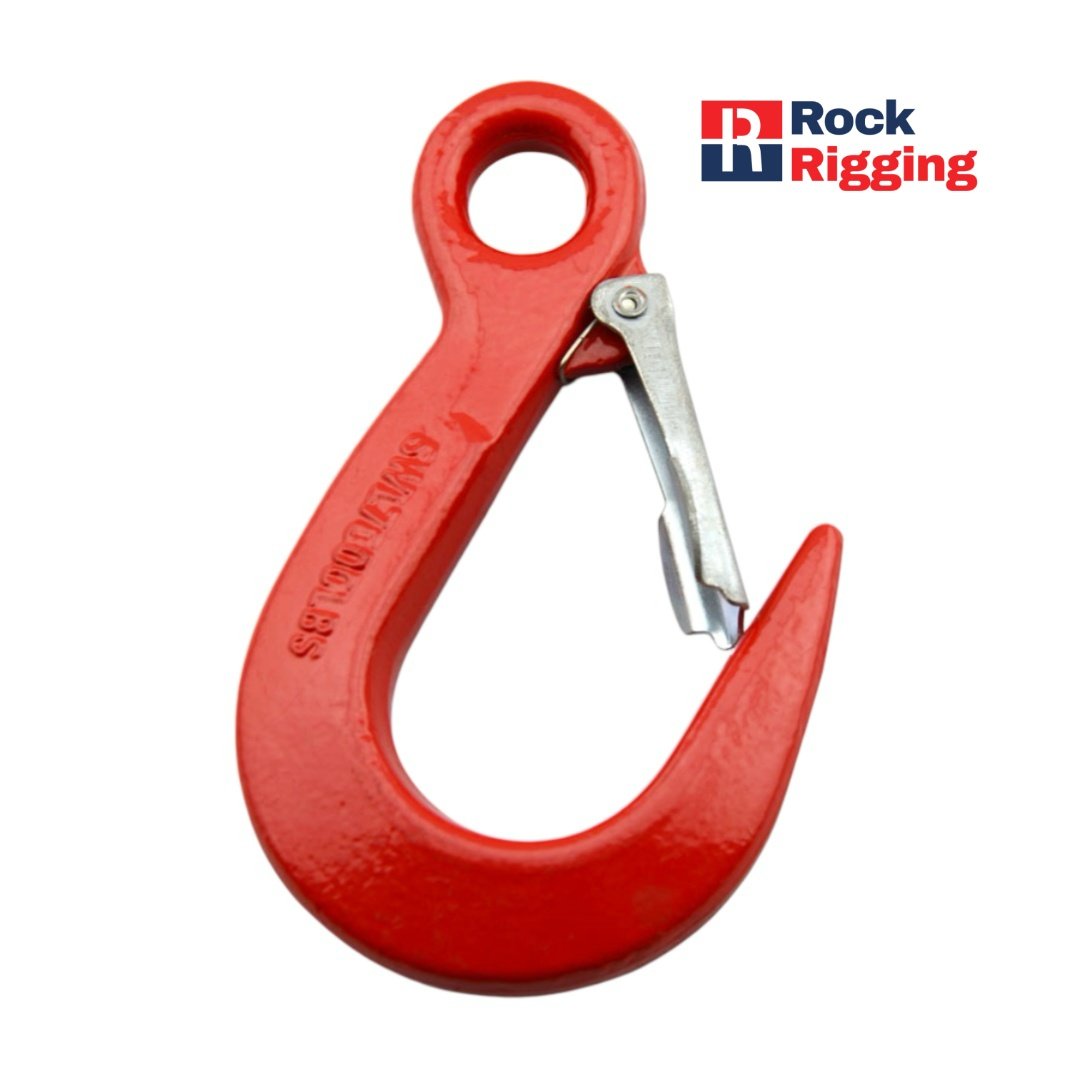

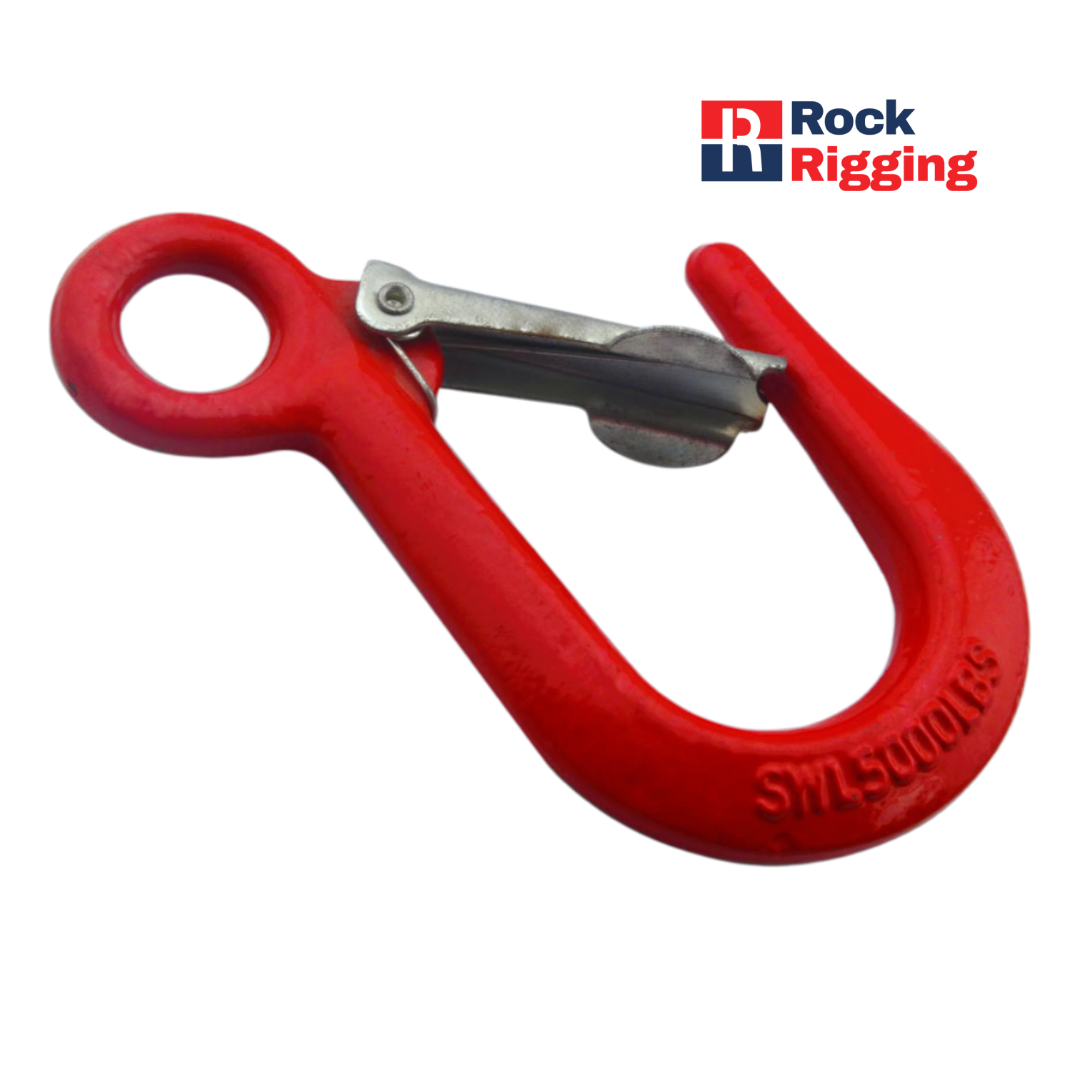

Slef-Lock Big Opening Hook Powder Coated #RRHK009
Features:
- Material: Alloy Steel
- Technology: Drop Forged
- Surface Finish: Powder Coated
- Ultimate Load:5 times of the WLL (Working Load Limit)
- Class:Carbon Steel G43,Alloy Steel G70
-
Note: Only for general hoists, not for overhead lifting
Main Applications:
- Construction sites
- Marine and offshore lifting
- Industrial manufacturing
- Warehousing and logistics
- Material handling and transportation
Partner with Rock Rigging:
- Low MOQ: Small trial orders are welcome.
- Fast Lead Time: Quick production & delivery.
- OEM & Customization: Logo, packaging, and special sizes available.
- Strict Quality Control: 100% inspection before shipment
- Global Export Experience: Serving 30+ countries
- 24H Quick Response: Professional sales support.
