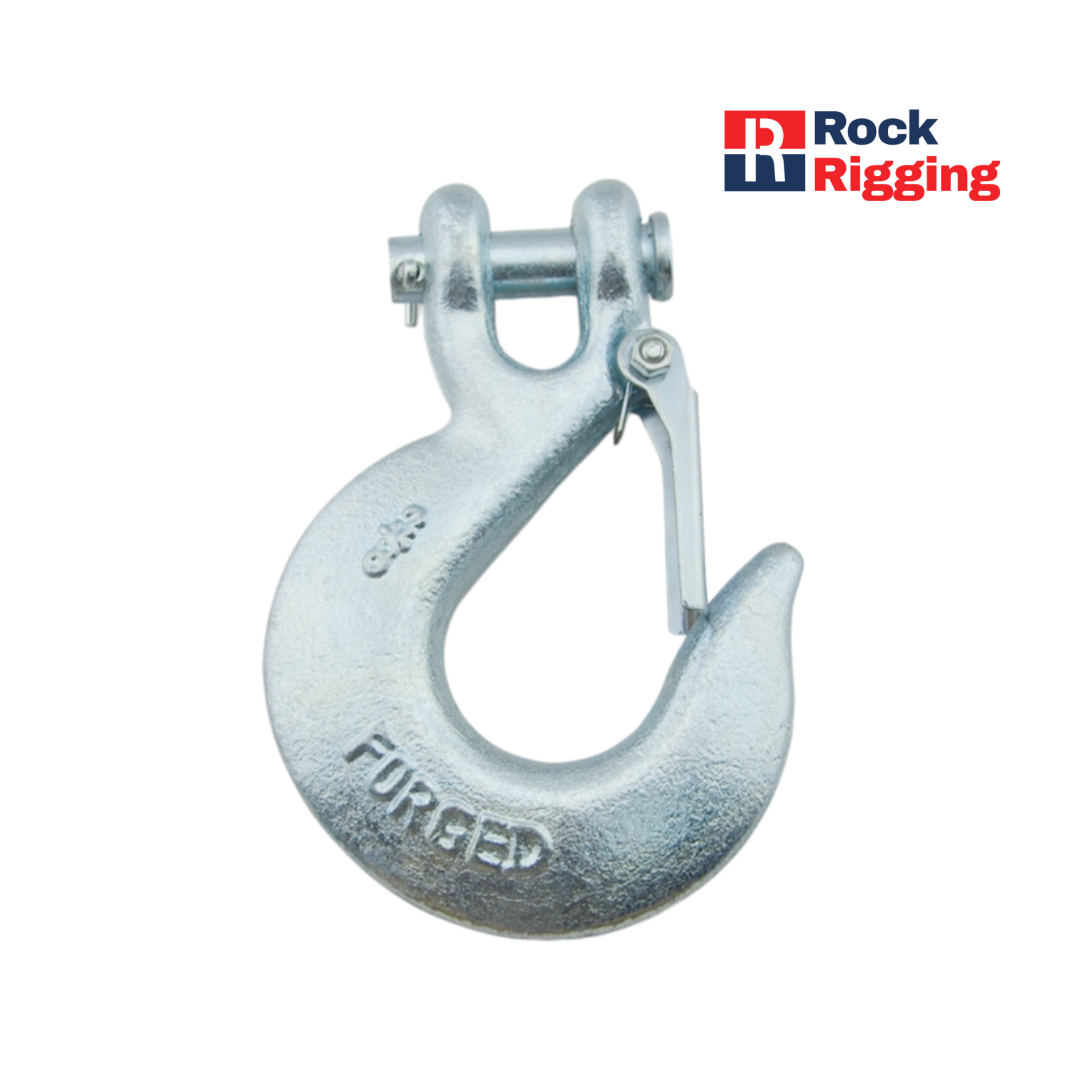

US TYPE CLEVIS SLIP HOOK WITH LATCH Electro Galvanized #RRHK003

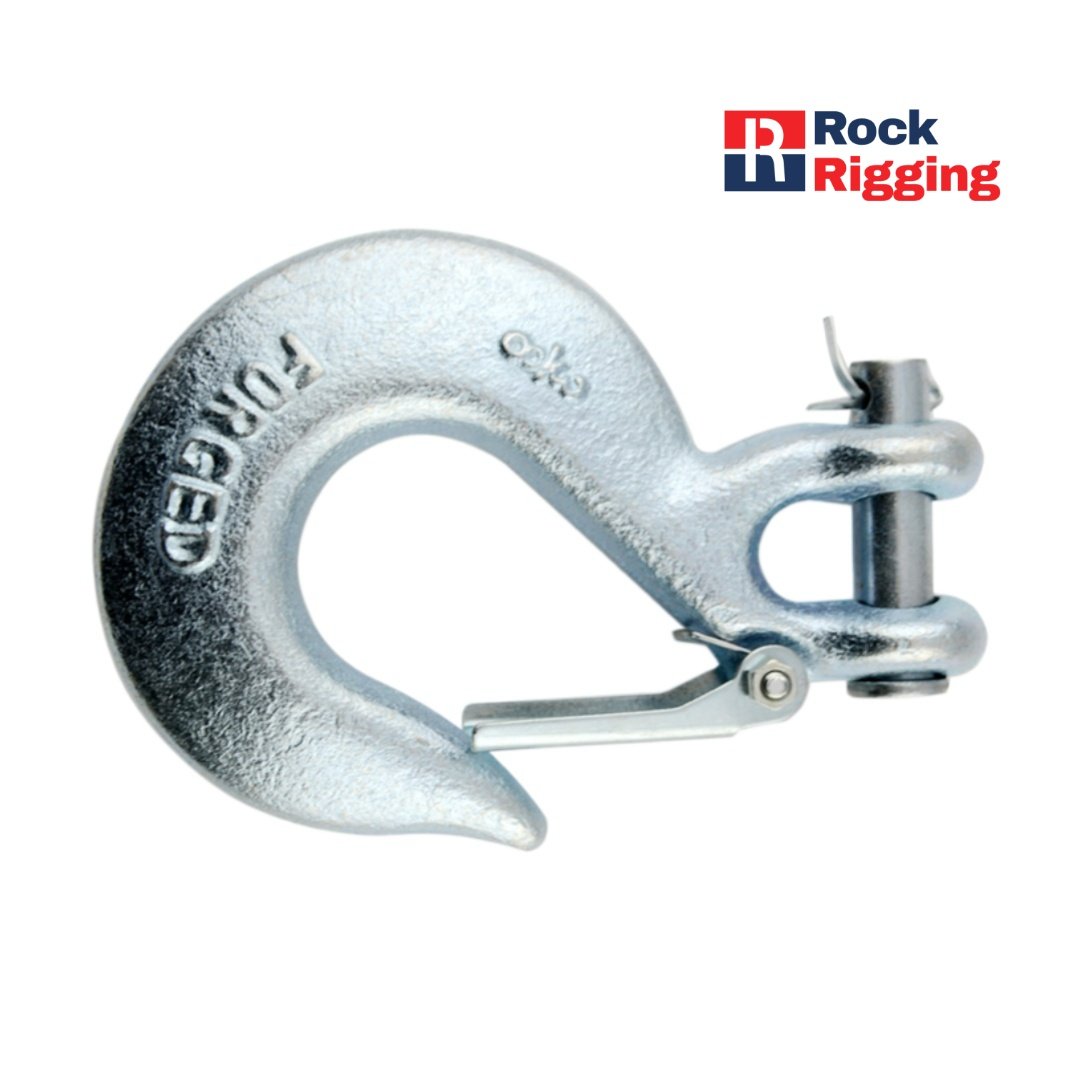

US TYPE CLEVIS SLIP HOOK WITH LATCH Electro Galvanized #RRHK003 - 图片 2

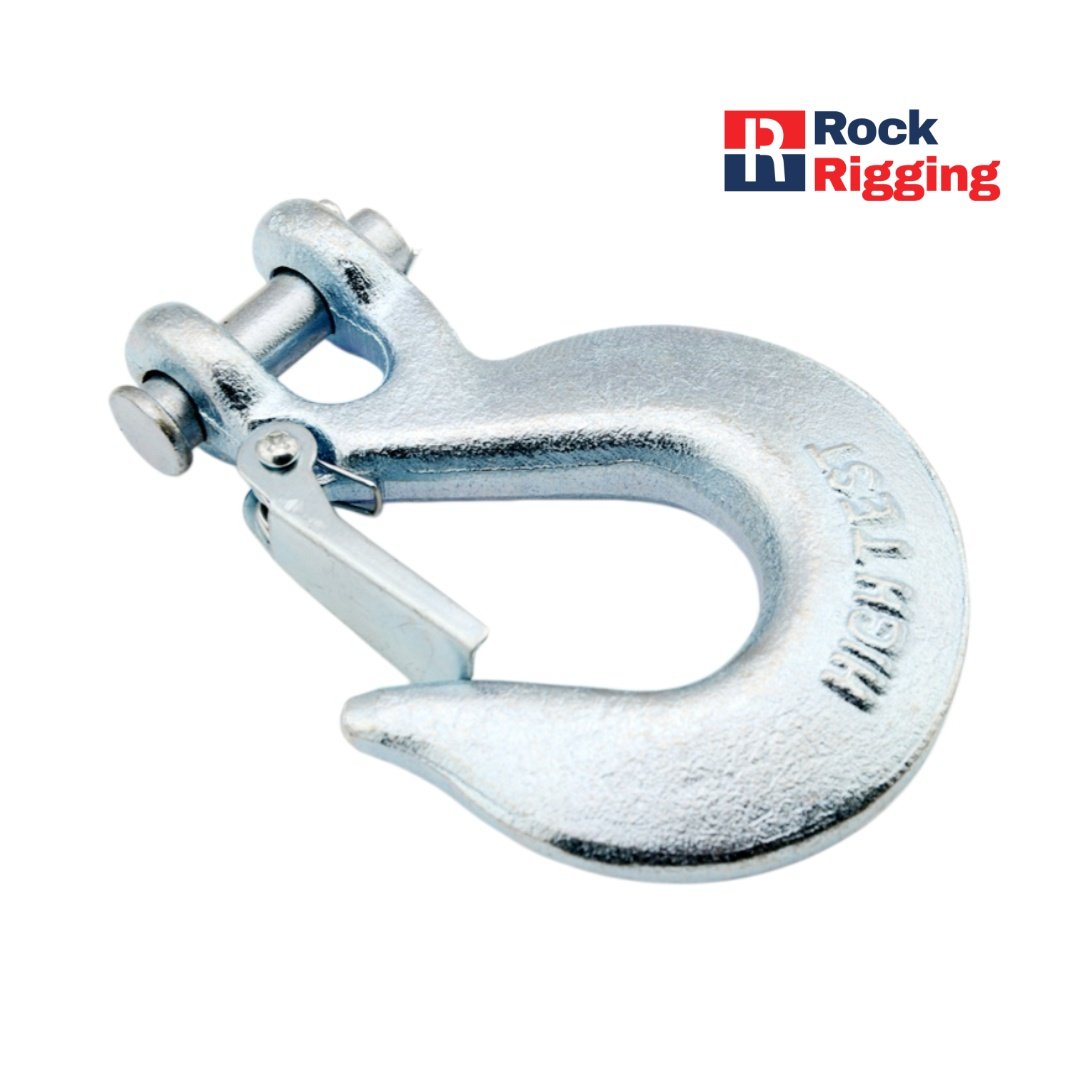

US TYPE CLEVIS SLIP HOOK WITH LATCH Electro Galvanized #RRHK003 - 图片 3

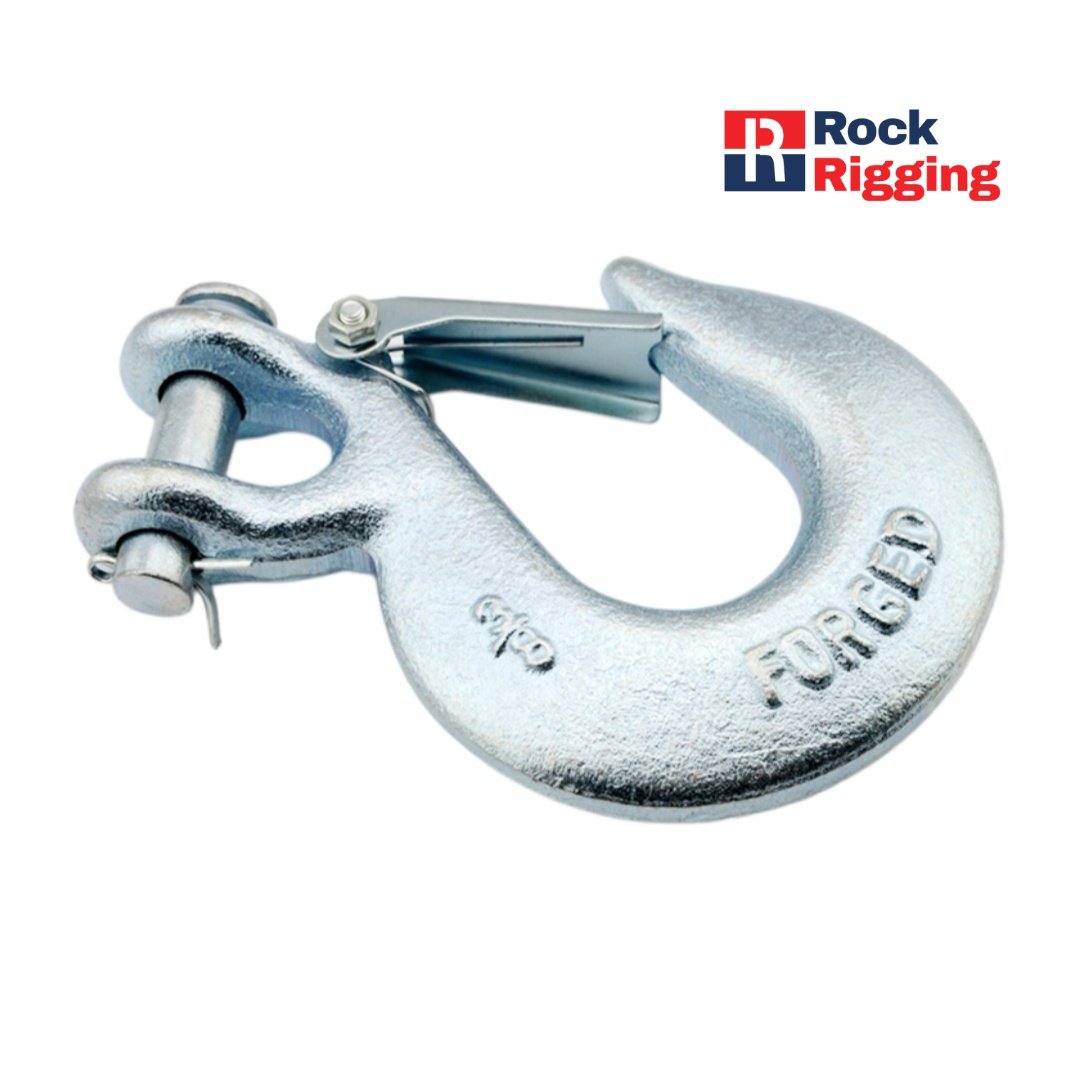

US TYPE CLEVIS SLIP HOOK WITH LATCH Electro Galvanized #RRHK003 - 图片 4

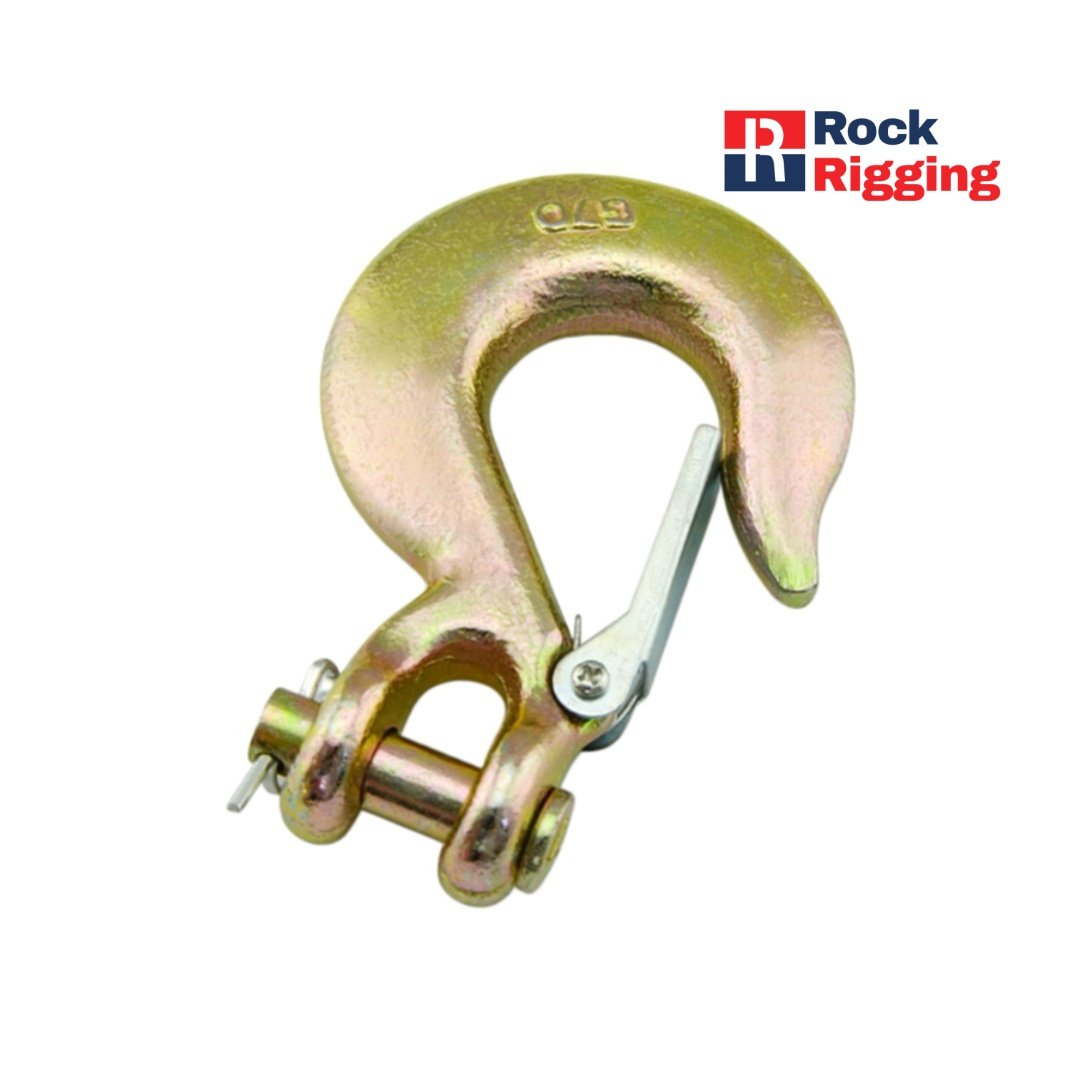

US TYPE CLEVIS SLIP HOOK WITH LATCH Electro Galvanized #RRHK003 - 图片 5

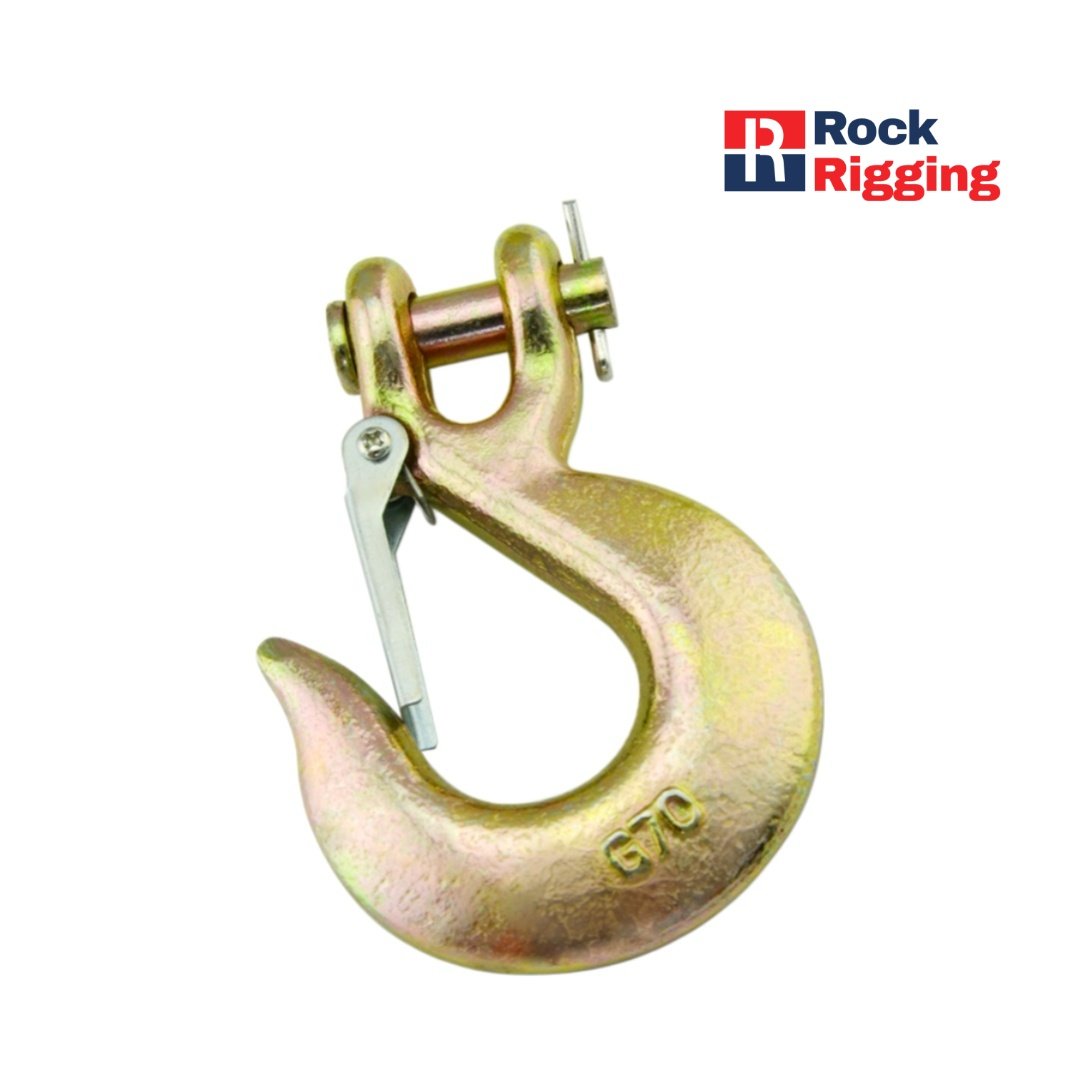

US TYPE CLEVIS SLIP HOOK WITH LATCH Electro Galvanized #RRHK003 - 图片 6

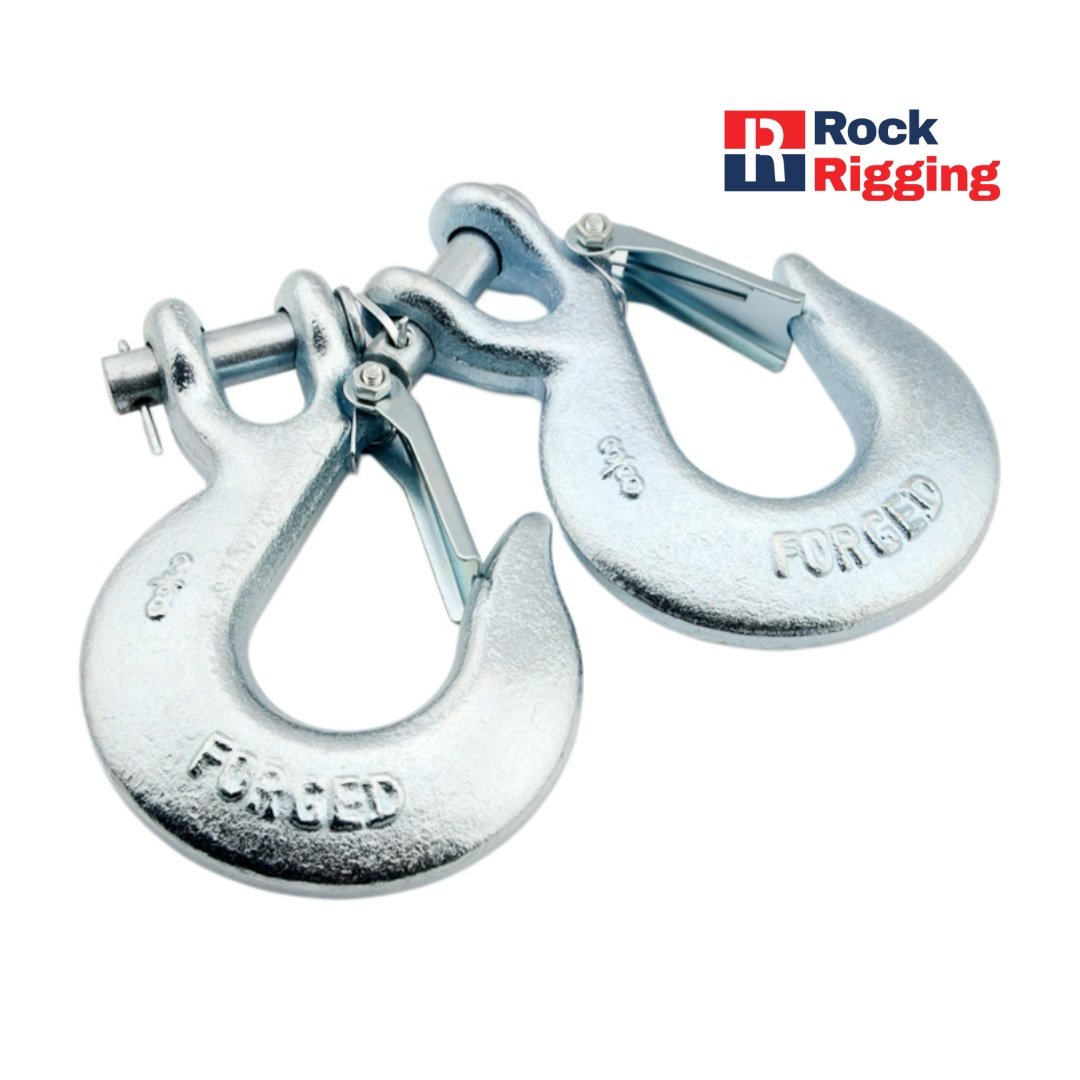

US TYPE CLEVIS SLIP HOOK WITH LATCH Electro Galvanized #RRHK003 - 图片 7

US TYPE CLEVIS SLIP HOOK WITH LATCH Electro Galvanized #RRHK003

Features:

  • Material:45# Carbon Steel or 40Cr Alloy Steel
  • Technology: Drop Forged
  • Surface Finish: Powder Coated / Electro Galvanized
  • Ultimate Load:4 times of the WLL (Working Load Limit)
  • Class:Carbon Steel G43,Alloy Steel G70
  • WARNING: Do not exceed the Working load limit.
  • Can’t be Rotated when Loading

Main Applications:

  • Construction sites
  • Marine and offshore lifting
  • Industrial manufacturing
  • Warehousing and logistics
  • Material handling and transportation

Partner with Rock Rigging:

  • Low MOQ: Small trial orders are welcome.
  • Fast Lead Time: Quick production & delivery.
  • OEM & Customization: Logo, packaging, and special sizes available.
  • Strict Quality Control: 100% inspection before shipment
  • Global Export Experience: Serving 30+ countries
  • 24H Quick Response: Professional sales support.
用于产品页面
SKU： RRHK003 分类： 品牌：





Size (in) WLL(lbs)‑H‑331 WLL(lbs)‑A‑331 B (in) E (in) P (in) R (in) T (in) Weight(lbs)
1/4 1950 2750 0.44 0.79 0.38 2.56 0.79 0.52
5/16 2875 4300 0.50 0.93 0.44 2.87 0.79 0.77
3/8 4000 5250 0.59 1.14 0.47 3.25 1.02 1.23
7/16 5000 7000 0.66 1.18 0.56 3.70 1.06 2.10
1/2 6500 9000 0.75 1.42 0.63 4.00 1.38 2.85
5/8 9250 13500 0.91 1.65 0.75 4.94 1.69 5.18

Noted:

Units: Dimensions in inches (in); WLL in tons (t); weight in pounds (lbs)

H‑331‑Carbon Steel; A‑331‑Alloy Steel
