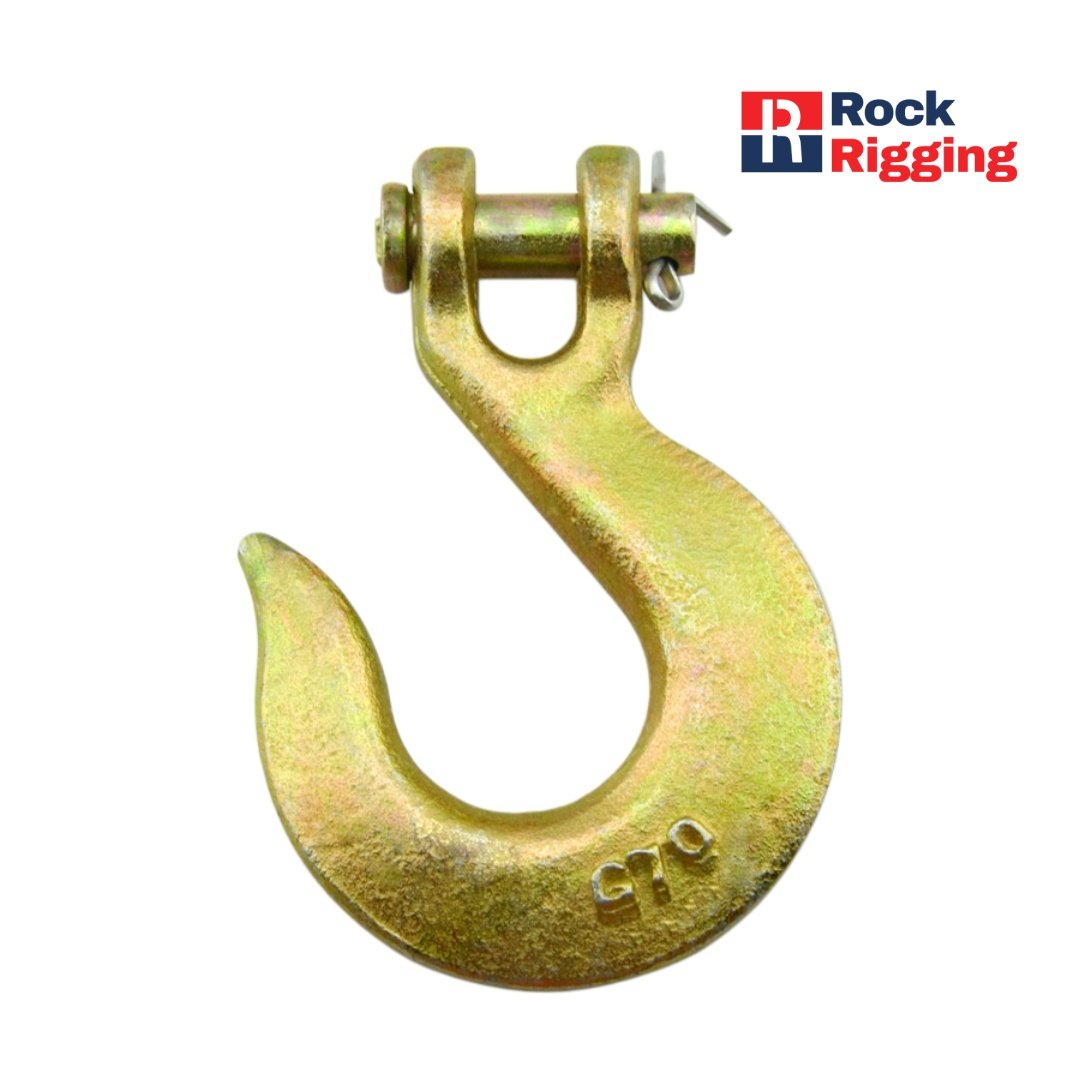

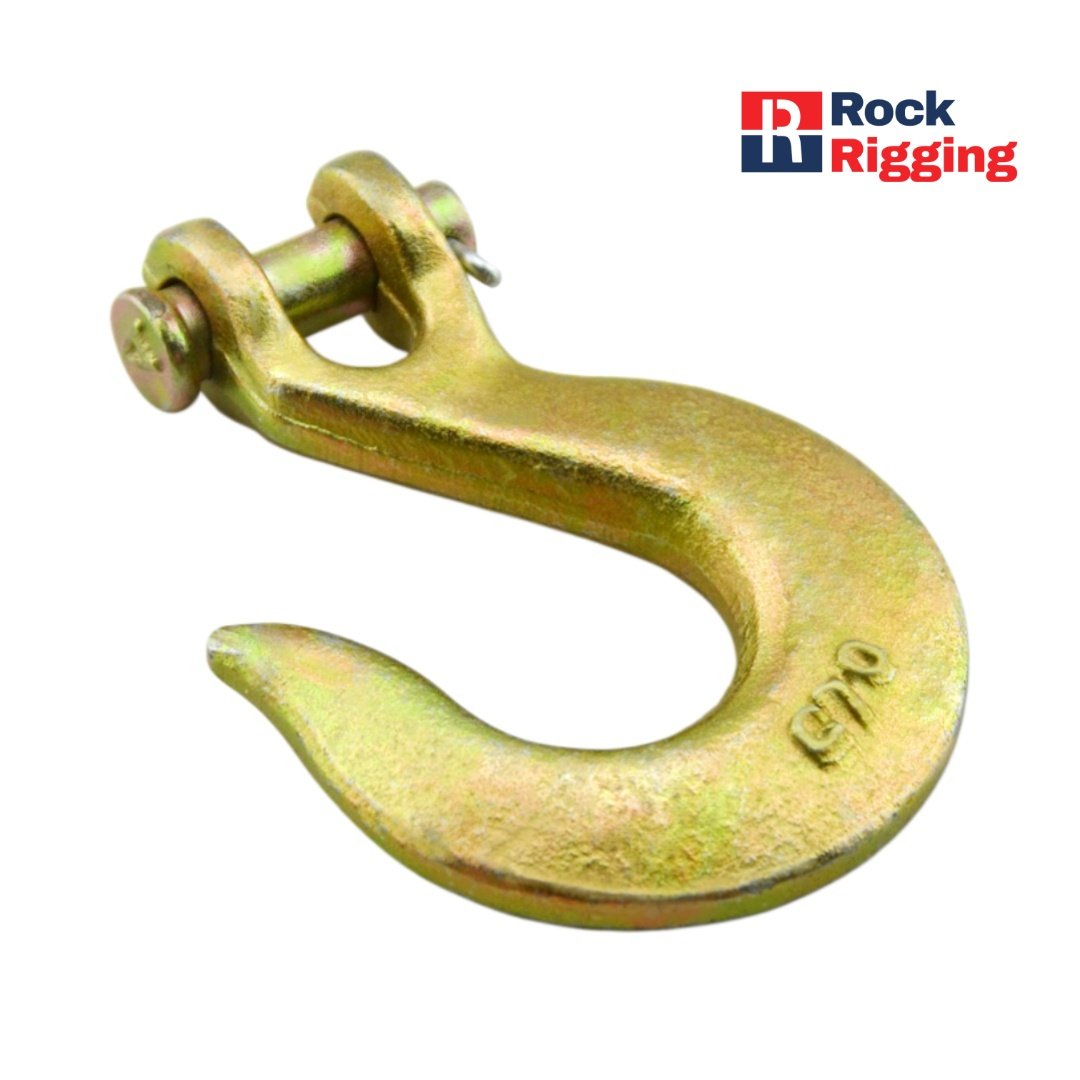

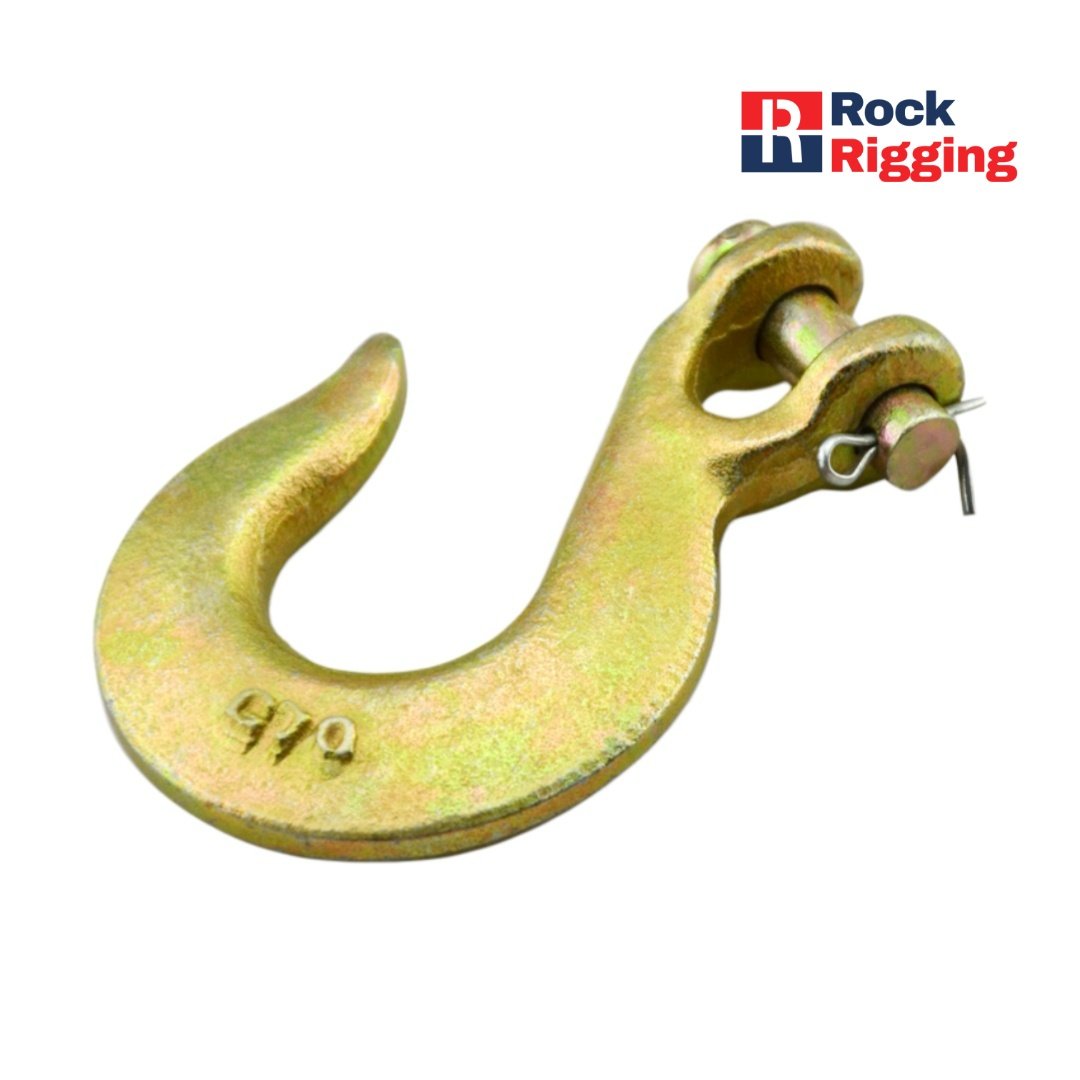

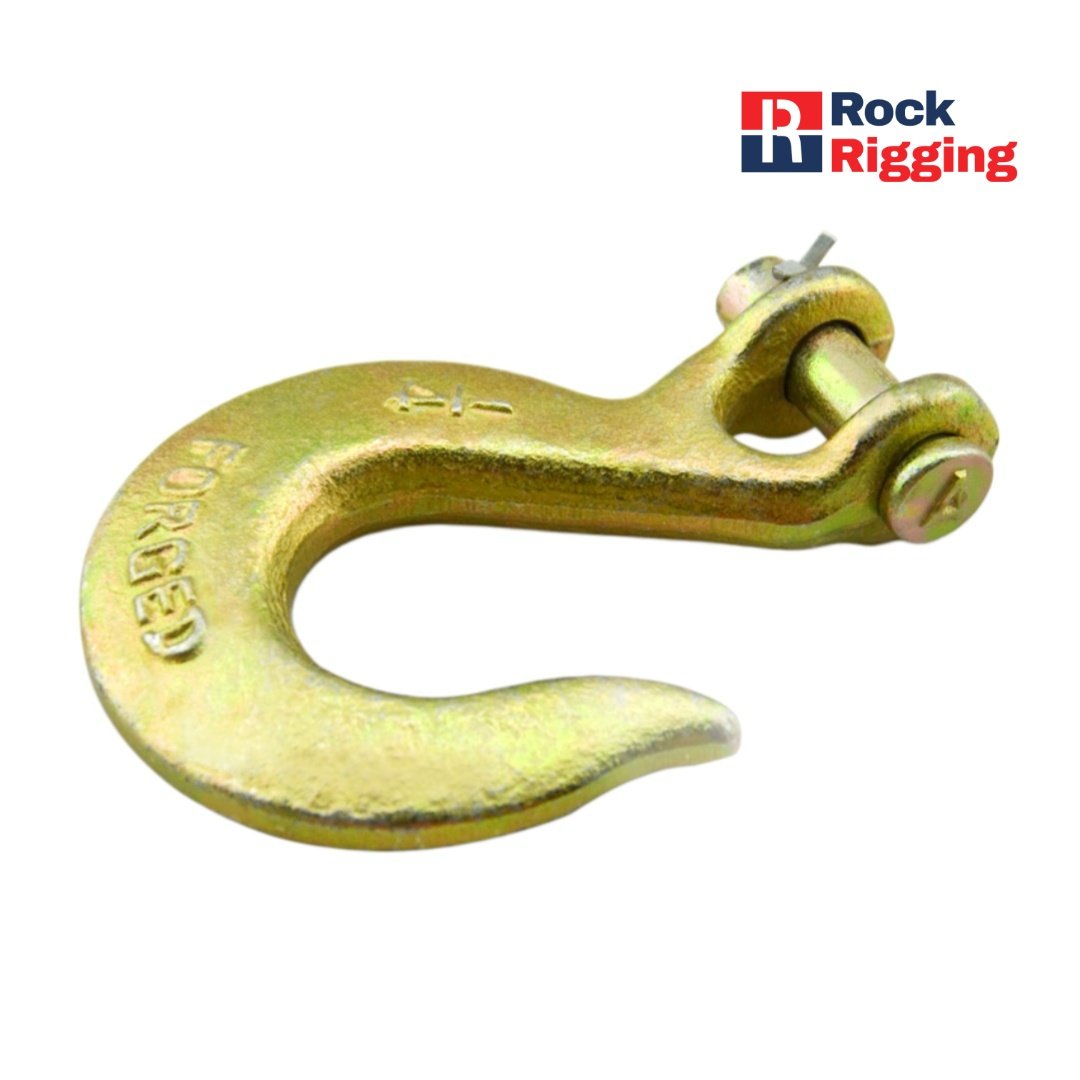

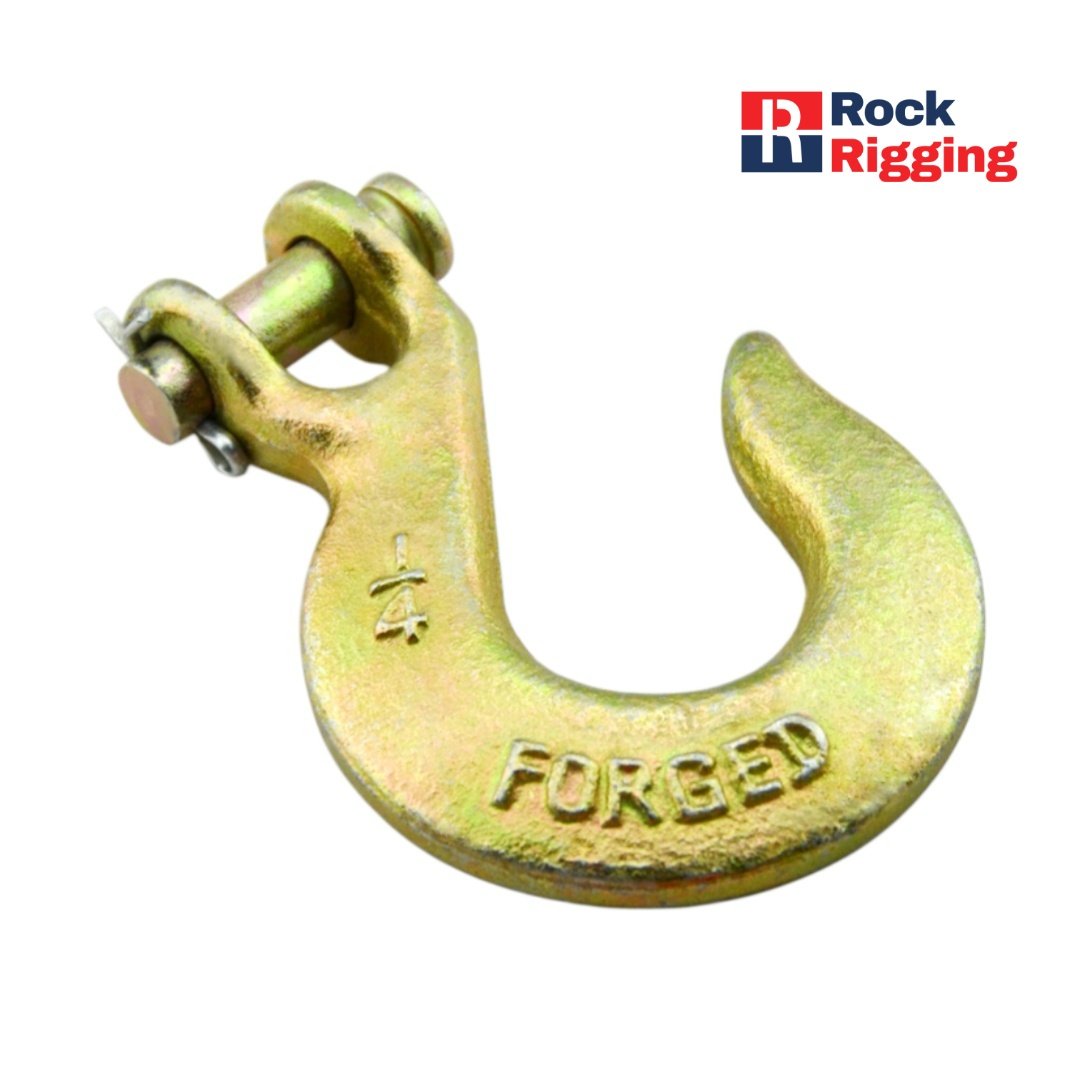

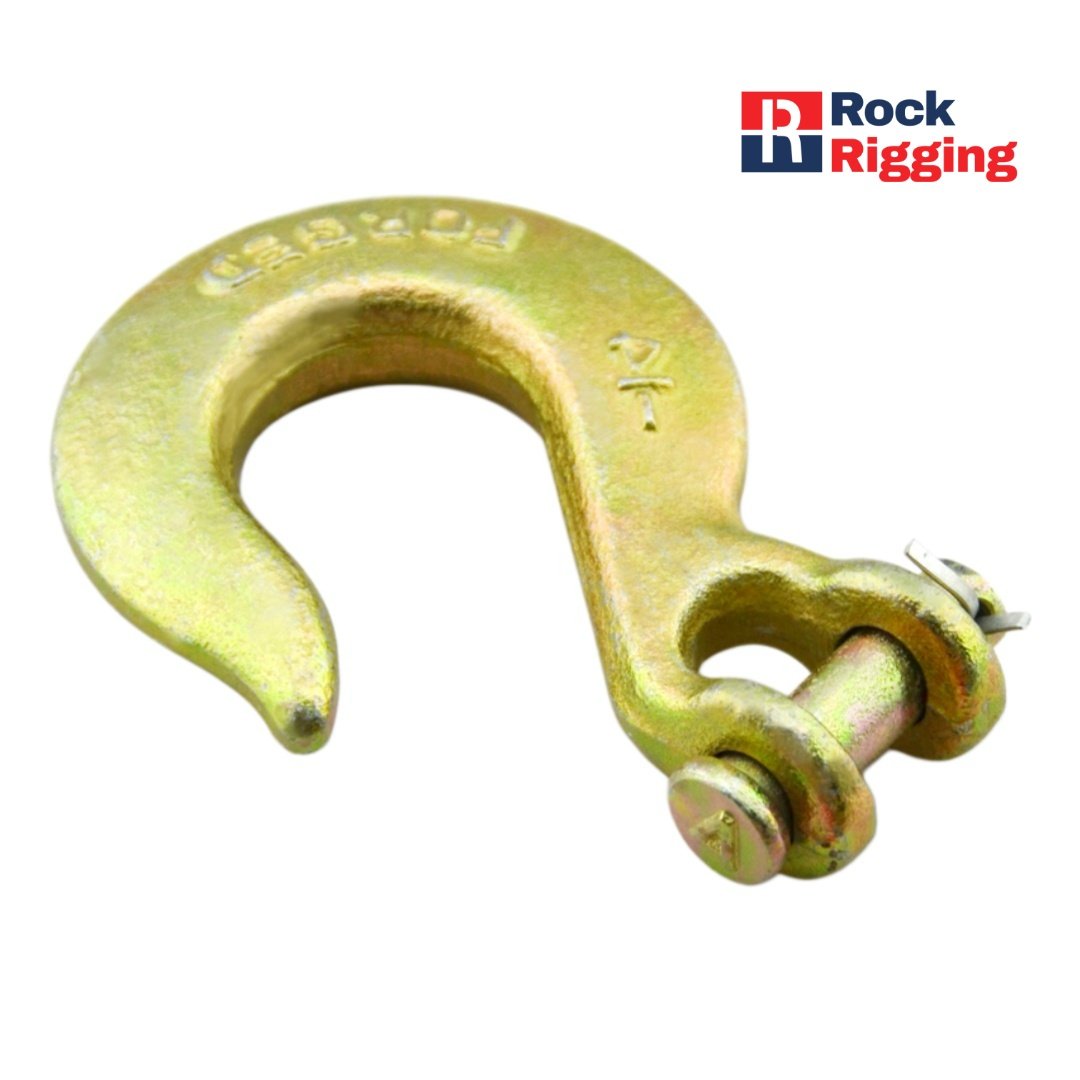

US TYPE CLEVIS SLIP HOOK Electro Galvanized #RRHK004
US TYPE CLEVIS SLIP HOOK Electro Galvanized #RRHK004 - 图片 2
US TYPE CLEVIS SLIP HOOK Electro Galvanized #RRHK004 - 图片 3
US TYPE CLEVIS SLIP HOOK Electro Galvanized #RRHK004 - 图片 4
US TYPE CLEVIS SLIP HOOK Electro Galvanized #RRHK004 - 图片 5
US TYPE CLEVIS SLIP HOOK Electro Galvanized #RRHK004 - 图片 6

US TYPE CLEVIS SLIP HOOK Electro Galvanized #RRHK004

Features:

  • Material:45# Carbon Steel or 40Cr Alloy Steel
  • Technology: Drop Forged
  • Surface Finish: Powder Coated / Electro Galvanized
  • Ultimate Load:4 times of the WLL (Working Load Limit)
  • Class:Carbon Steel G43,Alloy Steel G70
  • WARNING: Do not exceed the Working load limit.
  • Can’t be Rotated when Loading

Main Applications:

  • Construction sites
  • Marine and offshore lifting
  • Industrial manufacturing
  • Warehousing and logistics
  • Material handling and transportation

Partner with Rock Rigging:

  • Low MOQ: Small trial orders are welcome.
  • Fast Lead Time: Quick production & delivery.
  • OEM & Customization: Logo, packaging, and special sizes available.
  • Strict Quality Control: 100% inspection before shipment
  • Global Export Experience: Serving 30+ countries
  • 24H Quick Response: Professional sales support.
用于产品页面
SKU： RRHK004 分类： 品牌：

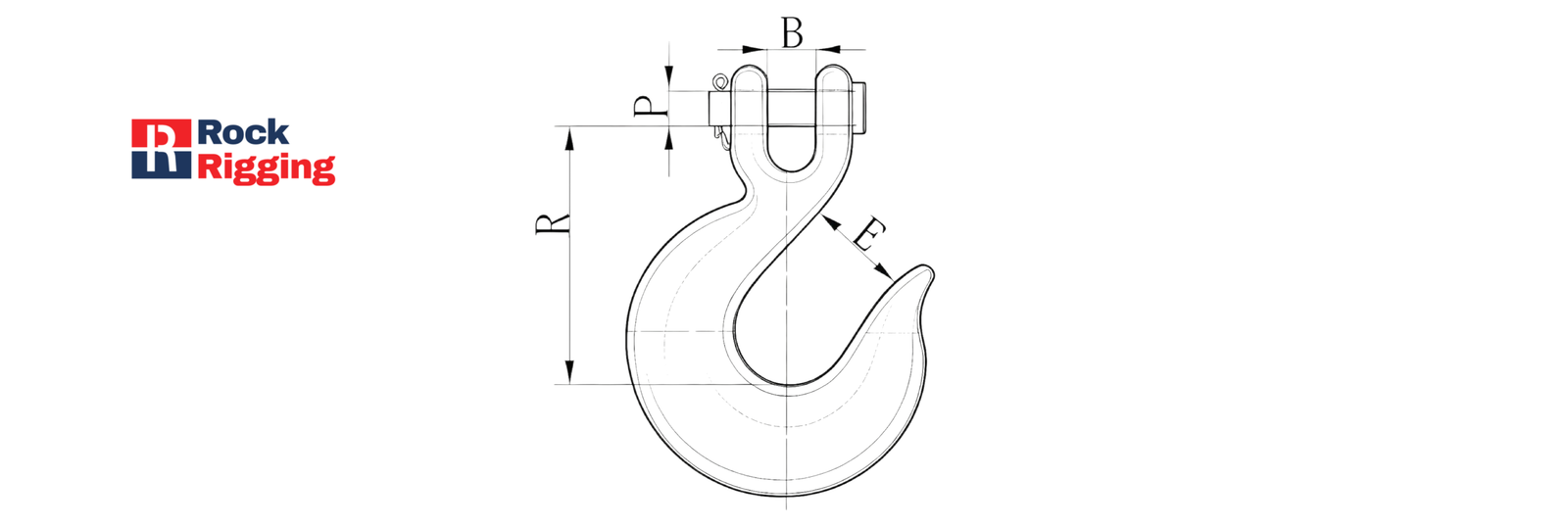

Size (in) WLL(lbs)‑H‑331 WLL(lbs)‑A‑331 B (in) E (in) P (in) R (in) Weight(lbs)
1/4 1950 2750 0.44 0.94 0.38 2.56 0.50
5/16 2875 4300 0.50 1.66 0.44 2.87 0.75
3/8 4000 5250 0.59 1.31 0.47 3.25 1.20
7/16 5000 7000 0.66 1.56 0.56 3.70 2.06
1/2 6500 9000 0.75 1.69 0.63 4.00 2.80
5/8 9250 13500 0.91 2.00 0.75 4.94 4.75
3/4 12500 19250 1.31 2.50 1.00 6.09 10.30



Noted:

Units: Dimensions in inches (in); WLL in tons (lbs); weight in pounds (lbs)

H‑331‑Carbon Steel; A‑331‑Alloy Steel
