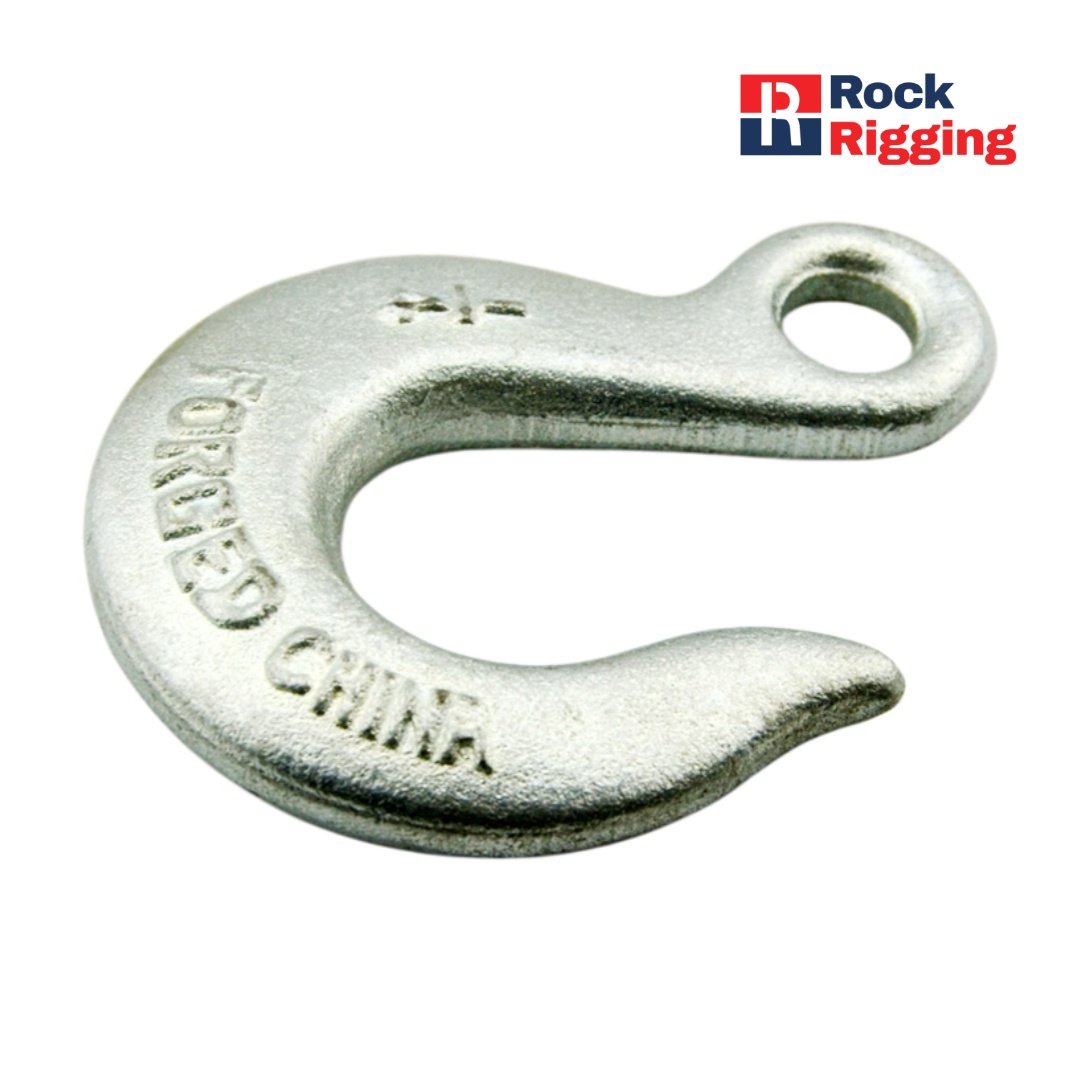

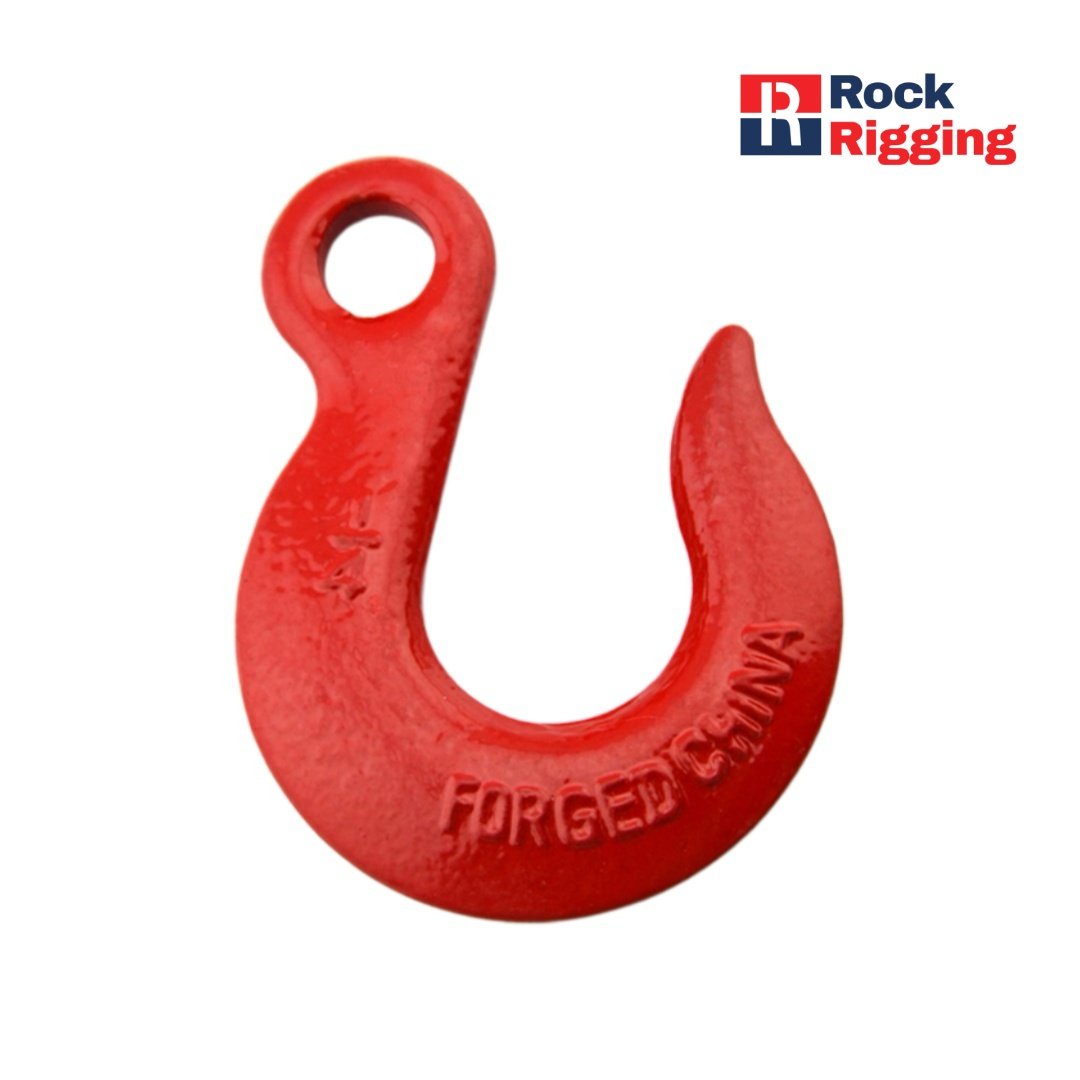

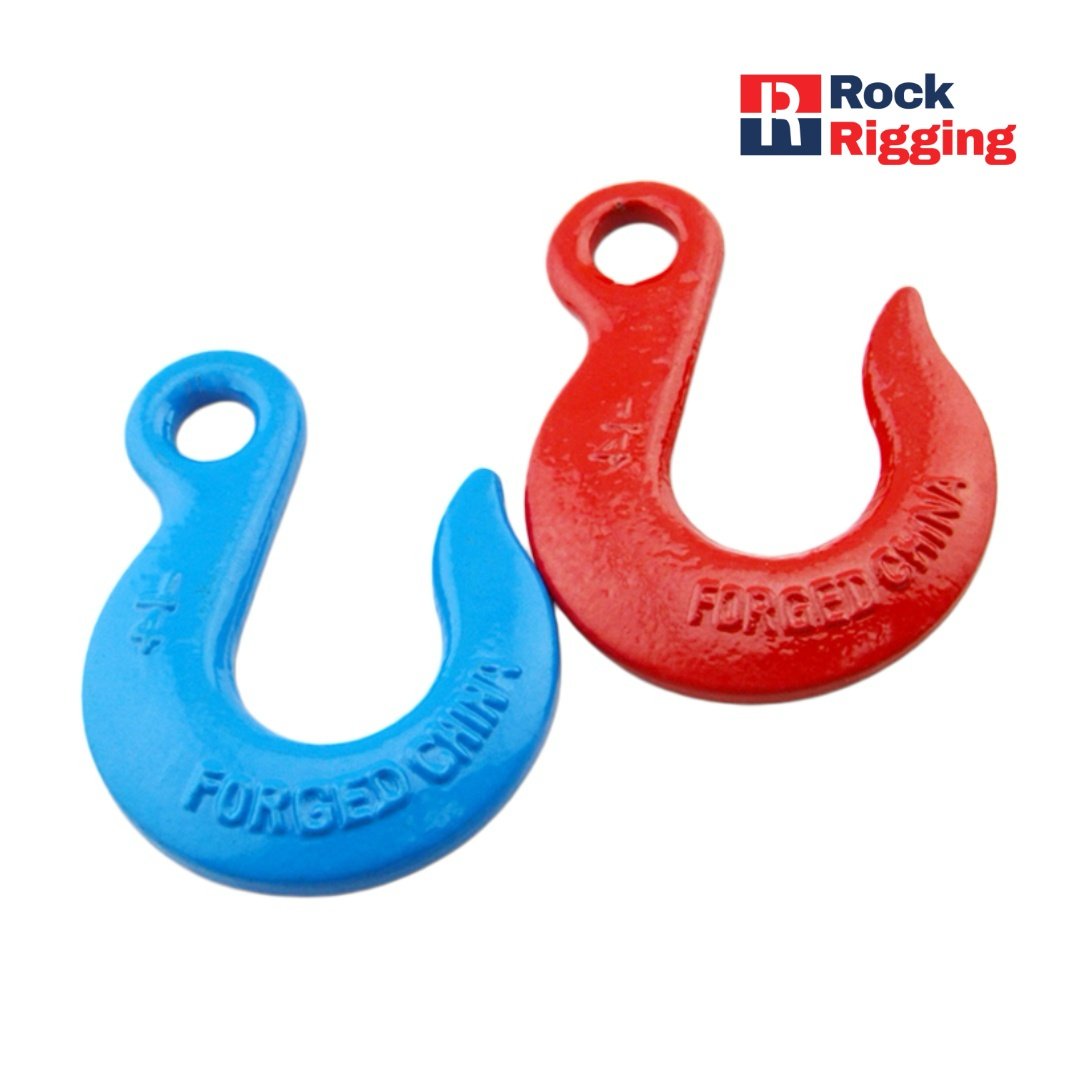

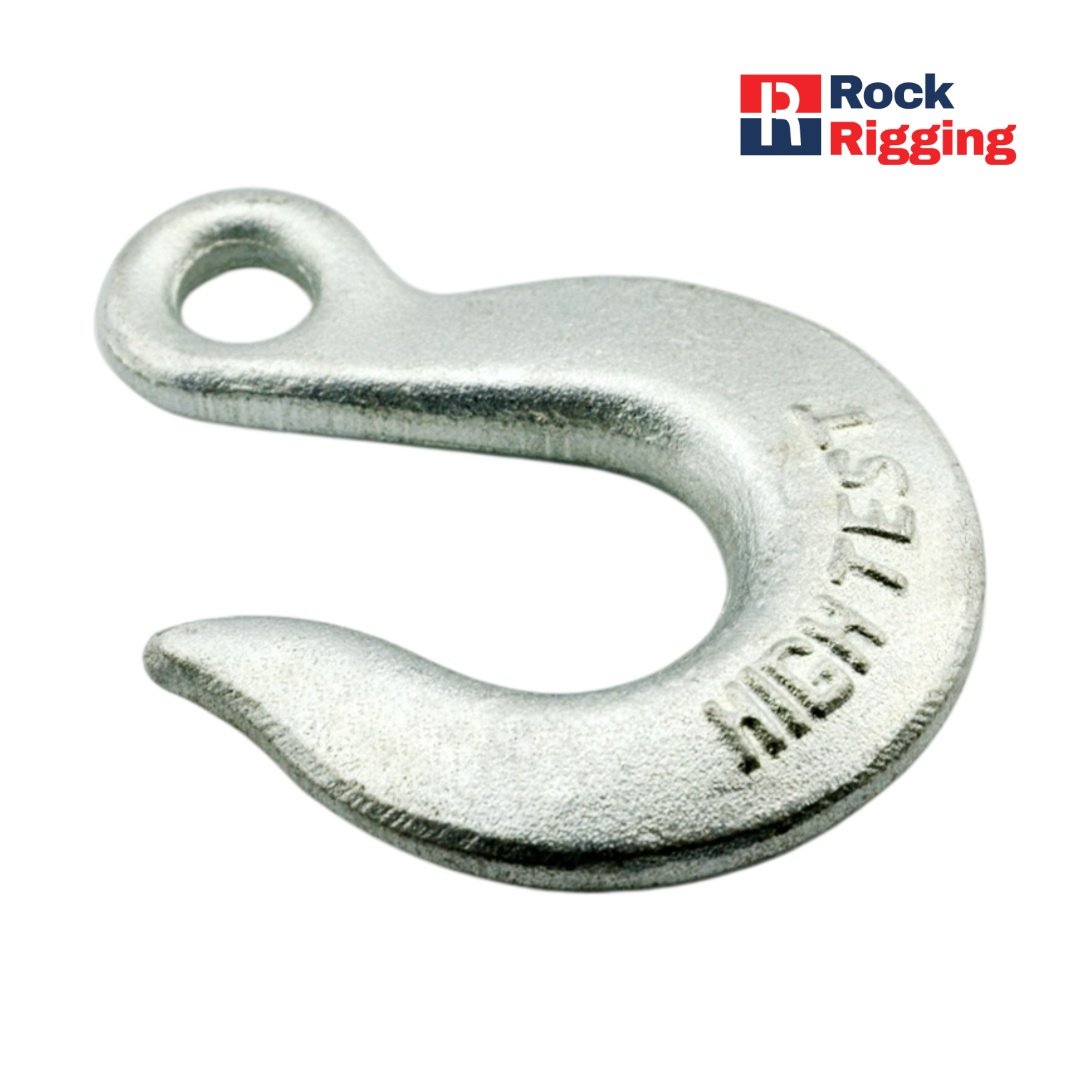

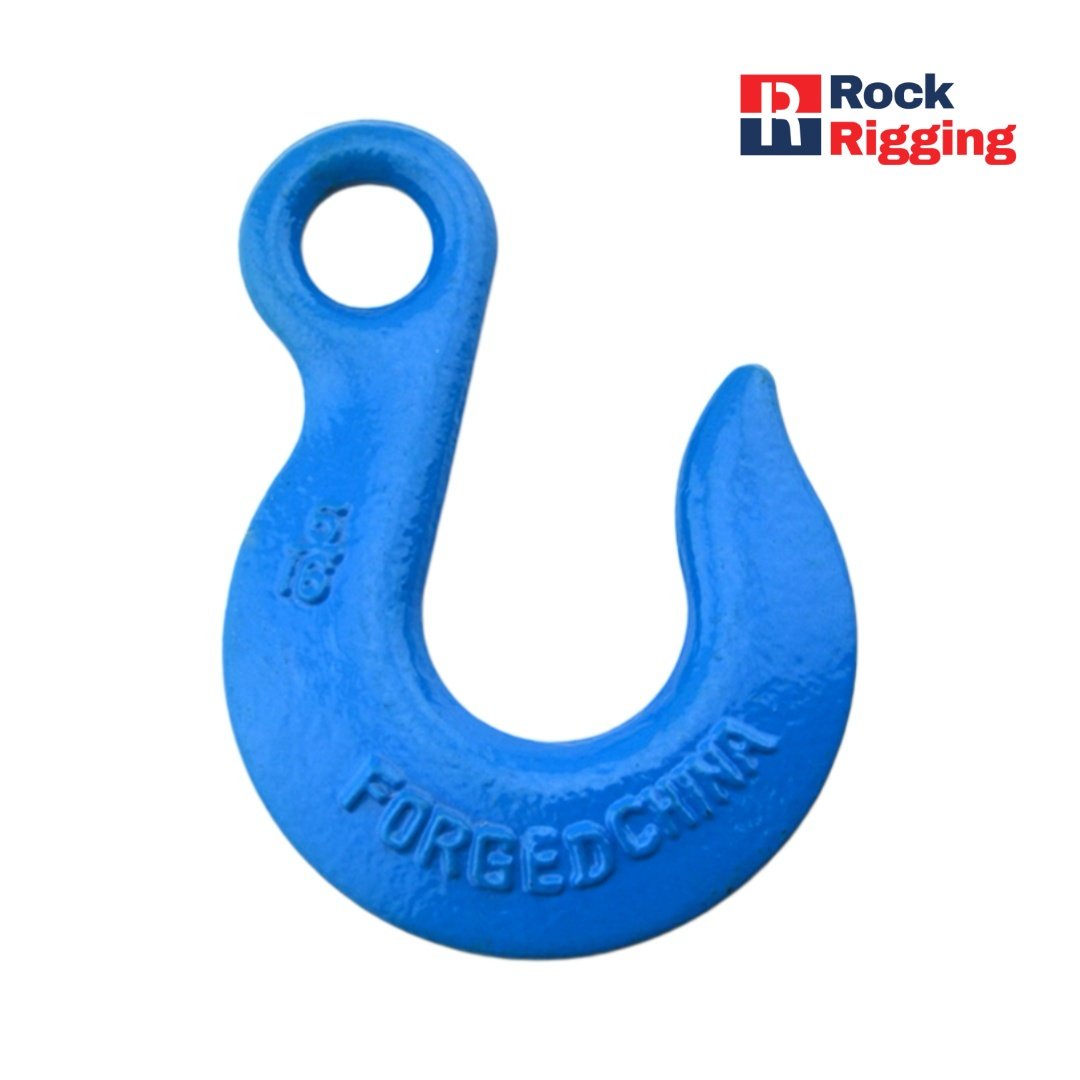

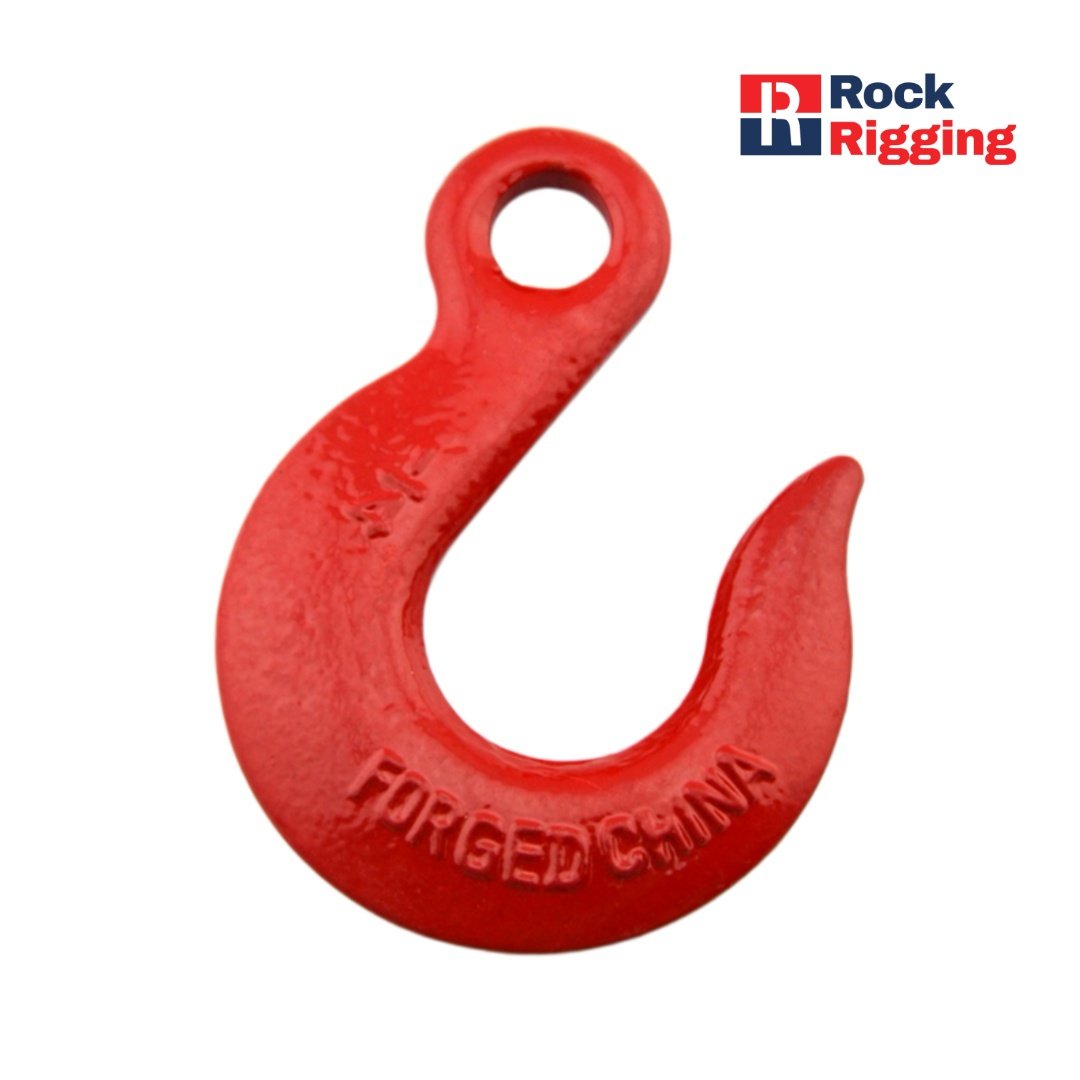

US Type Eye Slip Hook Powder Coated #RRHK006

Features:

  • Material:45# Carbon Steel or 40Cr Alloy Steel
  • Technology: Drop Forged
  • Surface Finish: Powder Coated / Electro Galvanized
  • Ultimate Load:4 times of the WLL (Working Load Limit)
  • Class:Carbon Steel G43,Alloy Steel G70
  • WARNING: Do not exceed the Working load limit.

Main Applications:

  • Construction sites
  • Marine and offshore lifting
  • Industrial manufacturing
  • Warehousing and logistics
  • Material handling and transportation

Partner with Rock Rigging:

  • Low MOQ: Small trial orders are welcome.
  • Fast Lead Time: Quick production & delivery.
  • OEM & Customization: Logo, packaging, and special sizes available.
  • Strict Quality Control: 100% inspection before shipment
  • Global Export Experience: Serving 30+ countries
  • 24H Quick Response: Professional sales support.
用于产品页面
SKU： RRHK006 分类： 品牌：

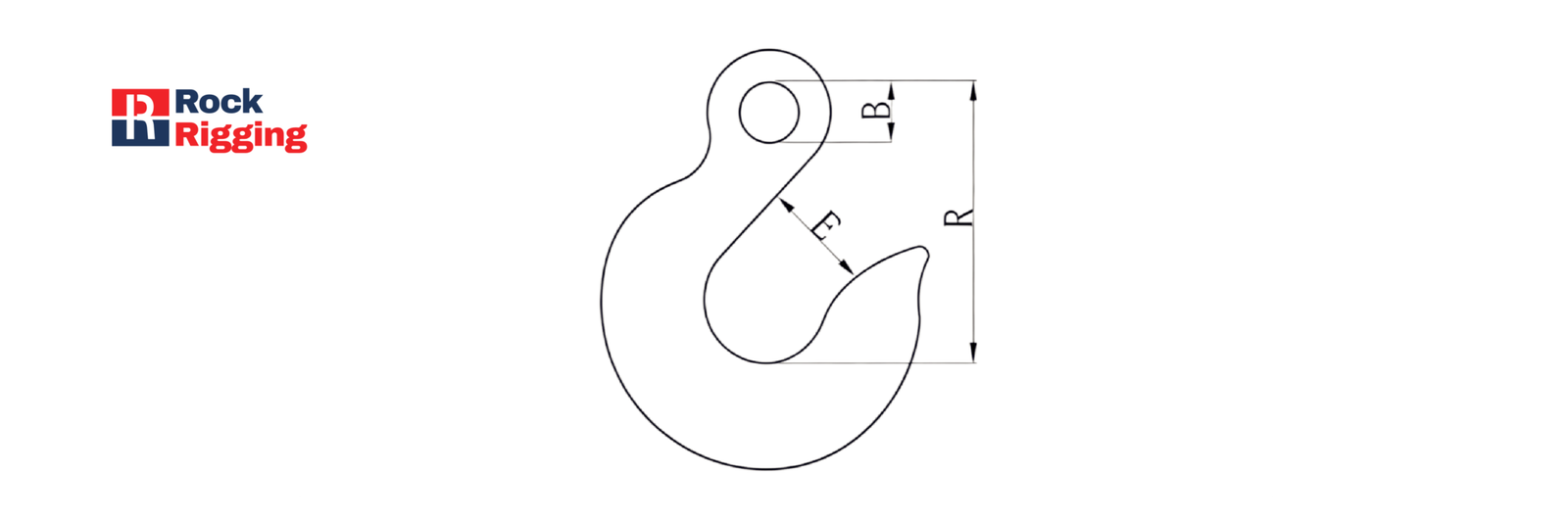

Size(in) WLL(lbs)‑H‑324 WLL(lbs)‑A‑324 B(in) E(in) R(in) Weight(lbs)
1/4 1950 2750 0.50 0.94 2.56 0.40
5/16 2875 4300 0.63 1.06 2.95 0.70
3/8 4000 5250 0.72 1.31 3.36 1.00
7/16 5000 7000 0.81 1.56 3.88 1.60
1/2 6500 9000 0.94 1.69 4.28 2.40
5/8 9250 13500 1.13 2.00 5.22 4.00
3/4 12500 19250 1.38 2.13 5.80 6.50

Noted:

Units: Dimensions in inches (in); WLL in tons (lbs); weight in pounds (lbs)

H‑324‑Carbon Steel; A‑324‑Alloy Steel
