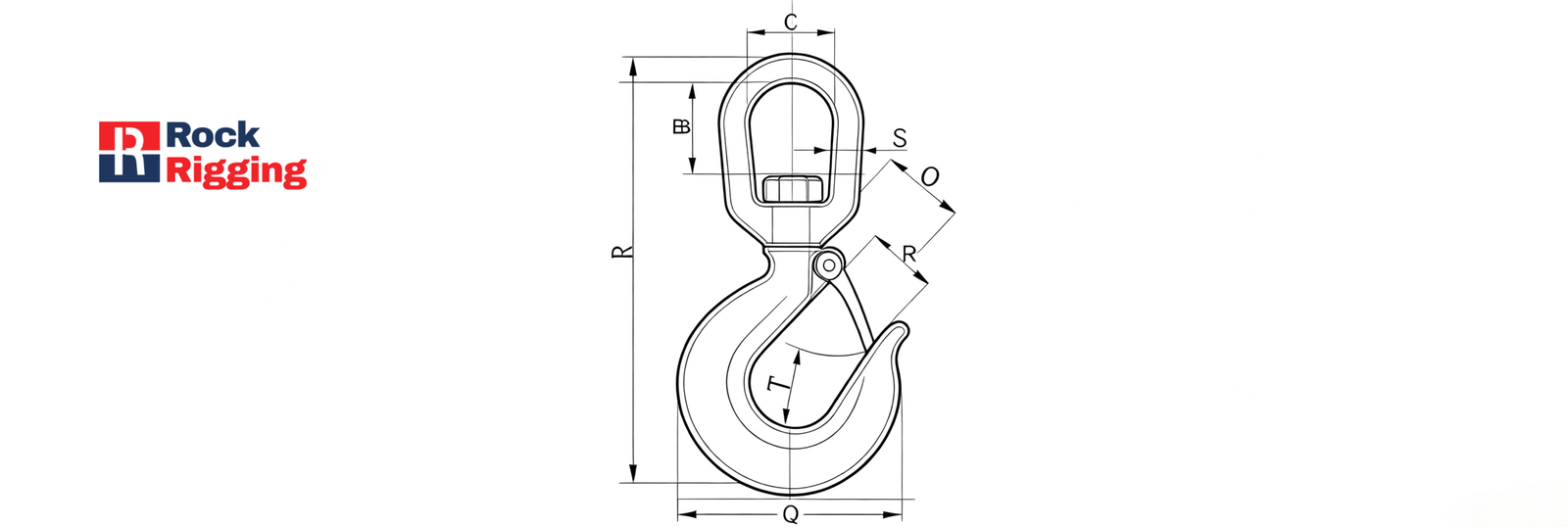

| WLL(t)-322C | WLL(t)-322A | B (in) | C (in) | O (in) | R (in) | S (in) | T (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 3/4 | 1 | 0.93 | 1.25 | 0.88 | 4.47 | 0.37 | 0.80 | 0.77 |
| 1 | 1 -1/2 | 1.31 | 1.50 | 0.97 | 5.28 | 0.50 | 0.80 | 1.27 |
| 1 -1/2 | 2 | 1.62 | 1.75 | 1.00 | 6.00 | 0.62 | 0.84 | 2.28 |
| 2 | 3 | 1.56 | 1.75 | 1.13 | 6.37 | 0.62 | 1.19 | 2.60 |
| 3 | 4 -1/2 | 1.75 | 2.00 | 1.34 | 7.40 | 0.75 | 1.37 | 4.81 |
| 5 | 7 | 2.31 | 2.50 | 1.69 | 9.59 | 1.00 | 1.78 | 10.40 |
| 7 -1/2 | 11 | 2.38 | 2.75 | 2.06 | 11.12 | 1.13 | 2.13 | 16.42 |
| 10 | 15 | 2.80 | 3.12 | 2.25 | 11.93 | 1.25 | 2.50 | 23.40 |
Noted:
Units: Dimensions in inches (in); WLL in tons (t); weight in pounds (lbs)
320C-Carbon Steel; 320A-Alloy Steel
