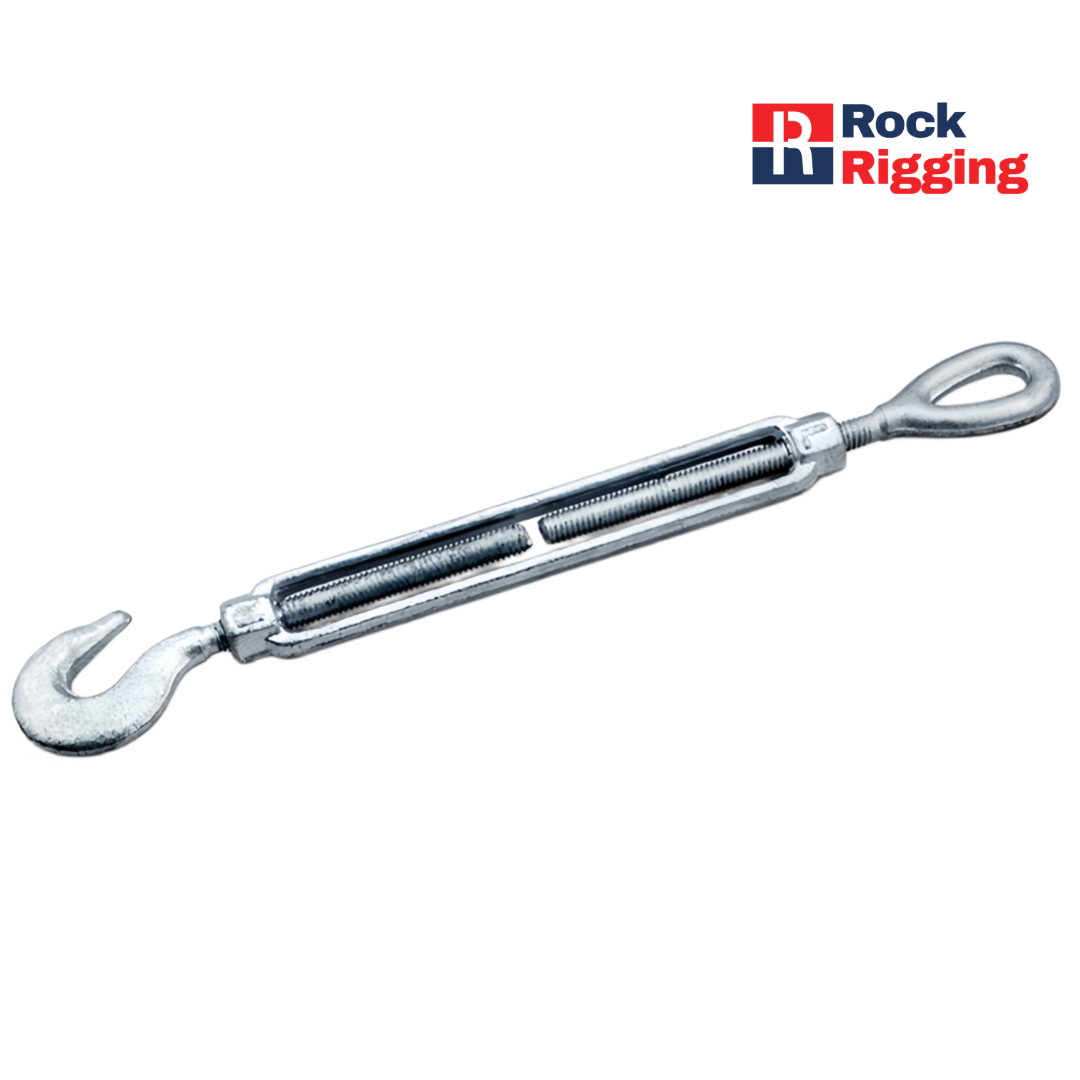

US Type Hot Dip Galvanized Turnbuckle with Hook & Eye (CO Style) #RRTB001

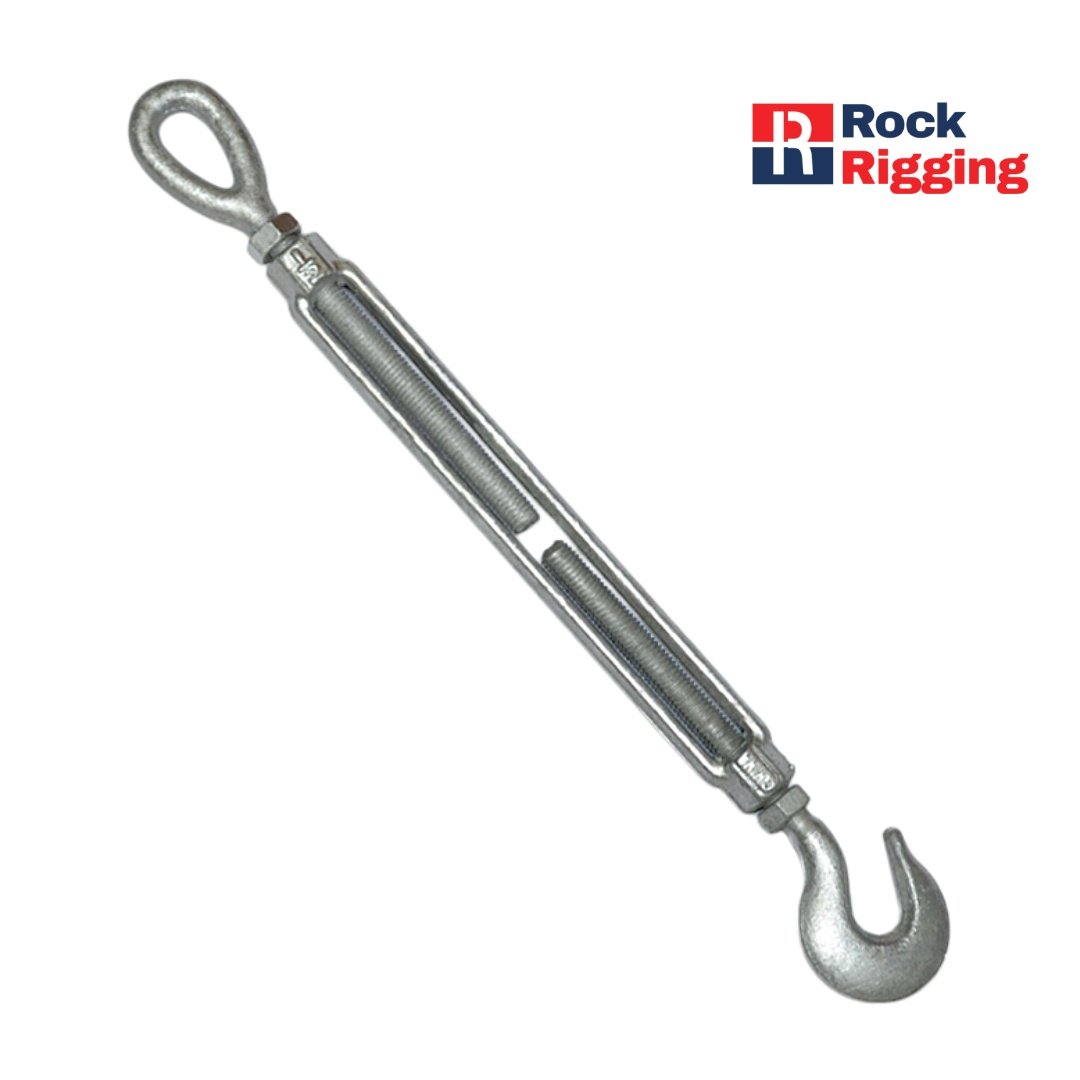

US Type Hot Dip Galvanized Turnbuckle with Hook & Eye (CO Style) #RRTB001 - 图片 2

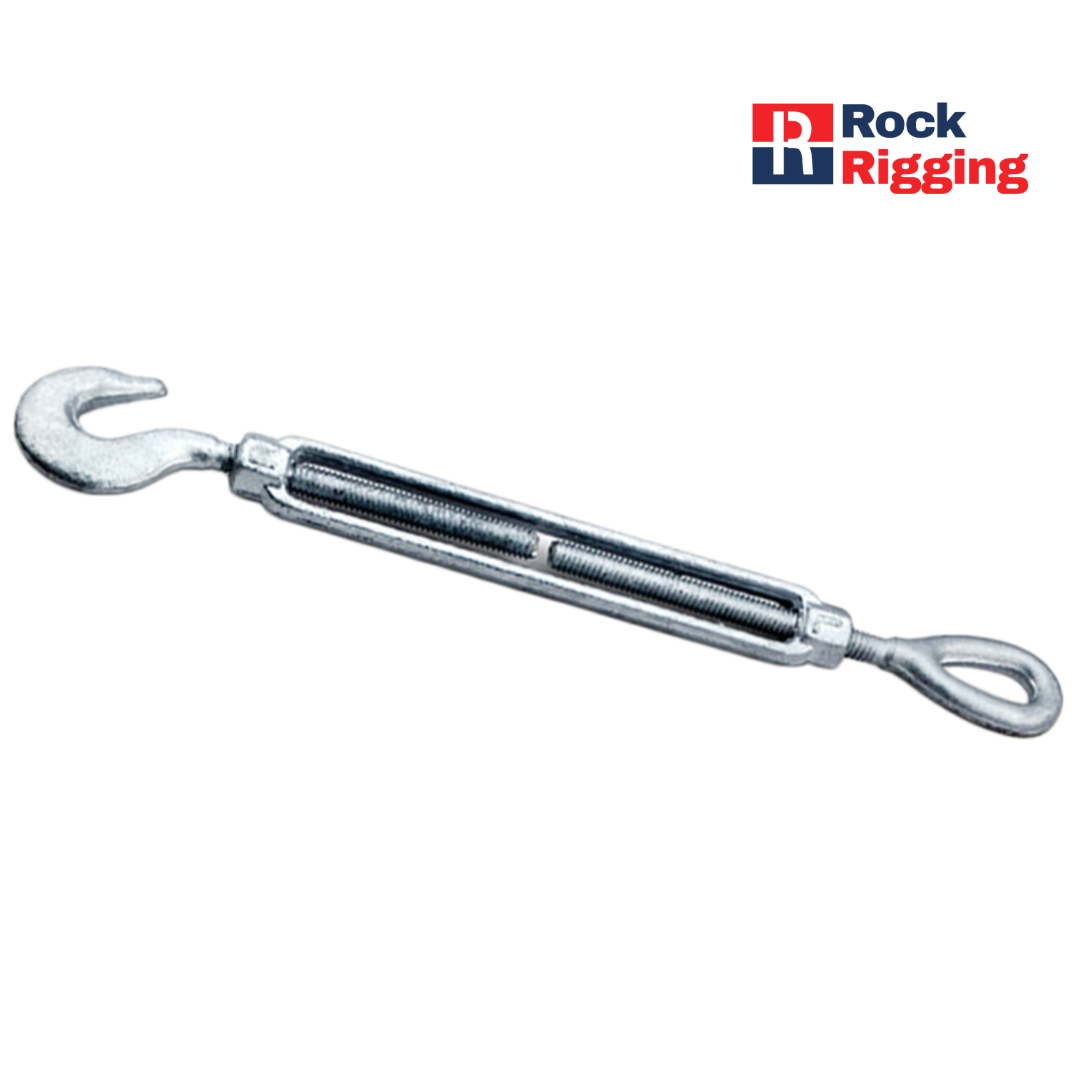

US Type Hot Dip Galvanized Turnbuckle with Hook & Eye (CO Style) #RRTB001 - 图片 3

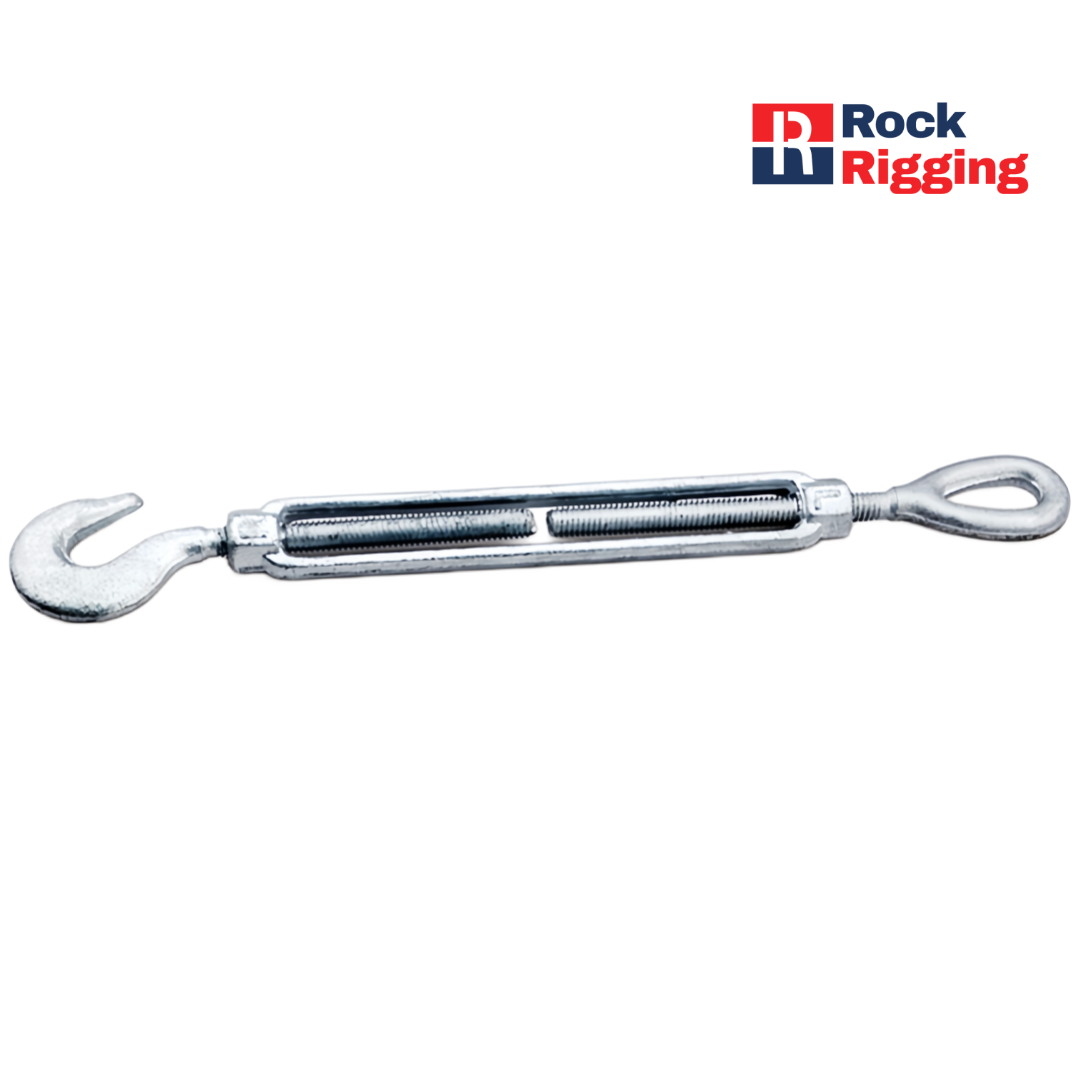

US Type Hot Dip Galvanized Turnbuckle with Hook & Eye (CO Style) #RRTB001 - 图片 4

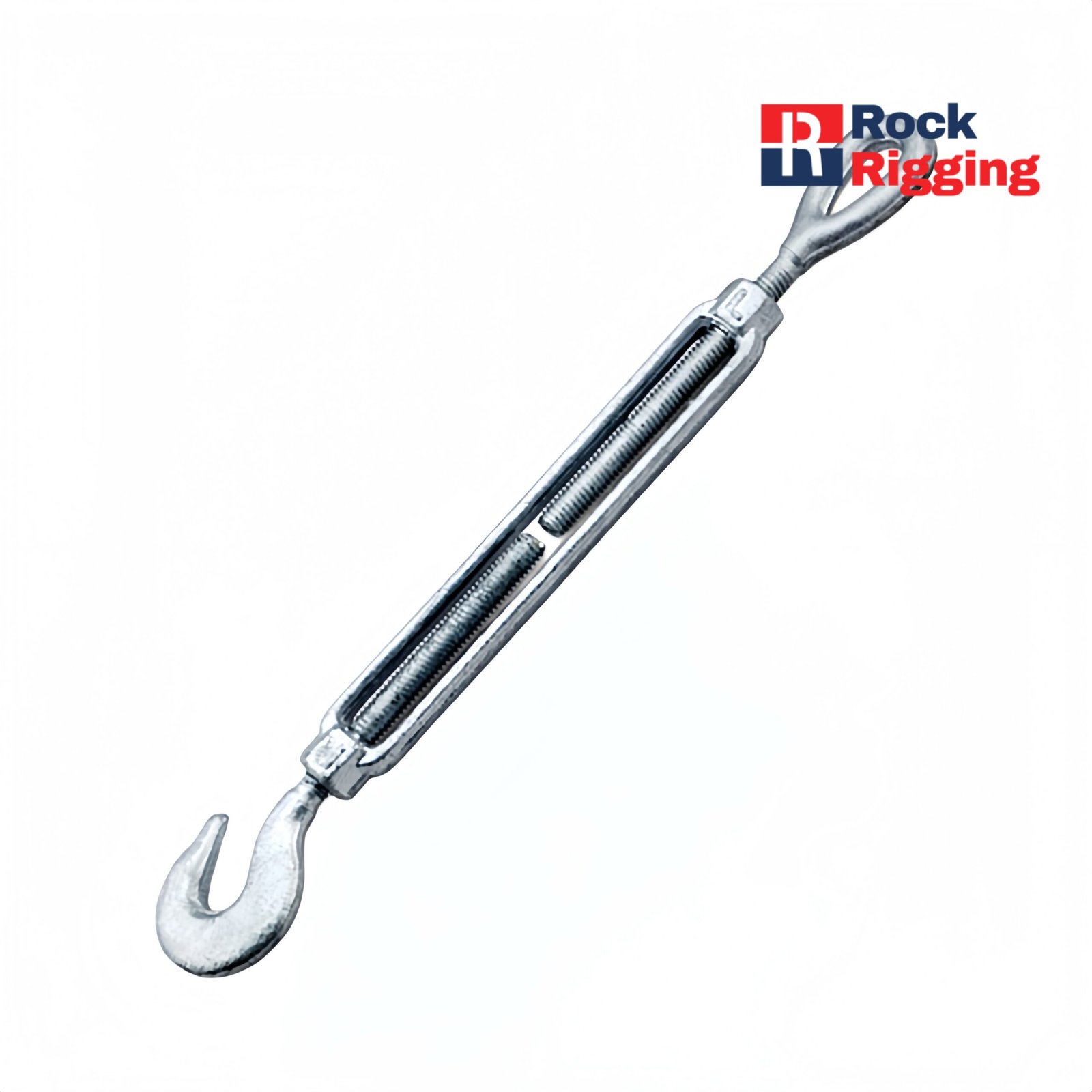

US Type Hot Dip Galvanized Turnbuckle with Hook & Eye (CO Style) #RRTB001 - 图片 5

US Type Hot Dip Galvanized Turnbuckle with Hook & Eye (CO Style) #RRTB001

Features:

  • Material:45#Carbon Steel
  • Standard: US Standard
  • Technology: Drop Forged
  • Surface Finish: Hot Dip Galvanized
  • Ultimate Load:5 times of the WLL (Working Load Limit)
  • WARNING: Do not exceed the Working load limit.

Main Applications:

  • Wire Rope Tensioning – Tighten and adjust wire rope assemblies.
  • Construction & Structural Bracing – Provide tension for steel structures and support systems.
  • Marine & Boating – Secure cables, rigging, and mooring systems.
  • Fencing & Cable Railings – Maintain proper tension in fencing and railing systems.
  • Lifting & Rigging – Adjust lifting slings and rigging connections.
  • Utility & Power Lines – Tension guy wires and overhead cable systems.
  • Industrial Equipment – Stabilize machinery, frames, and support structures.
  • Agriculture & Greenhouses – Tighten support cables for farms and greenhouse structures.

Partner with Rock Rigging:

  • Low MOQ: Small trial orders are welcome.
  • Fast Lead Time: Quick production & delivery.
  • OEM & Customization: Logo, packaging, and special sizes available.
  • Strict Quality Control: 100% inspection before shipment
  • Global Export Experience: Serving 30+ countries
  • 24H Quick Response: Professional sales support.
用于产品页面
SKU： RRTB001 分类： 品牌：

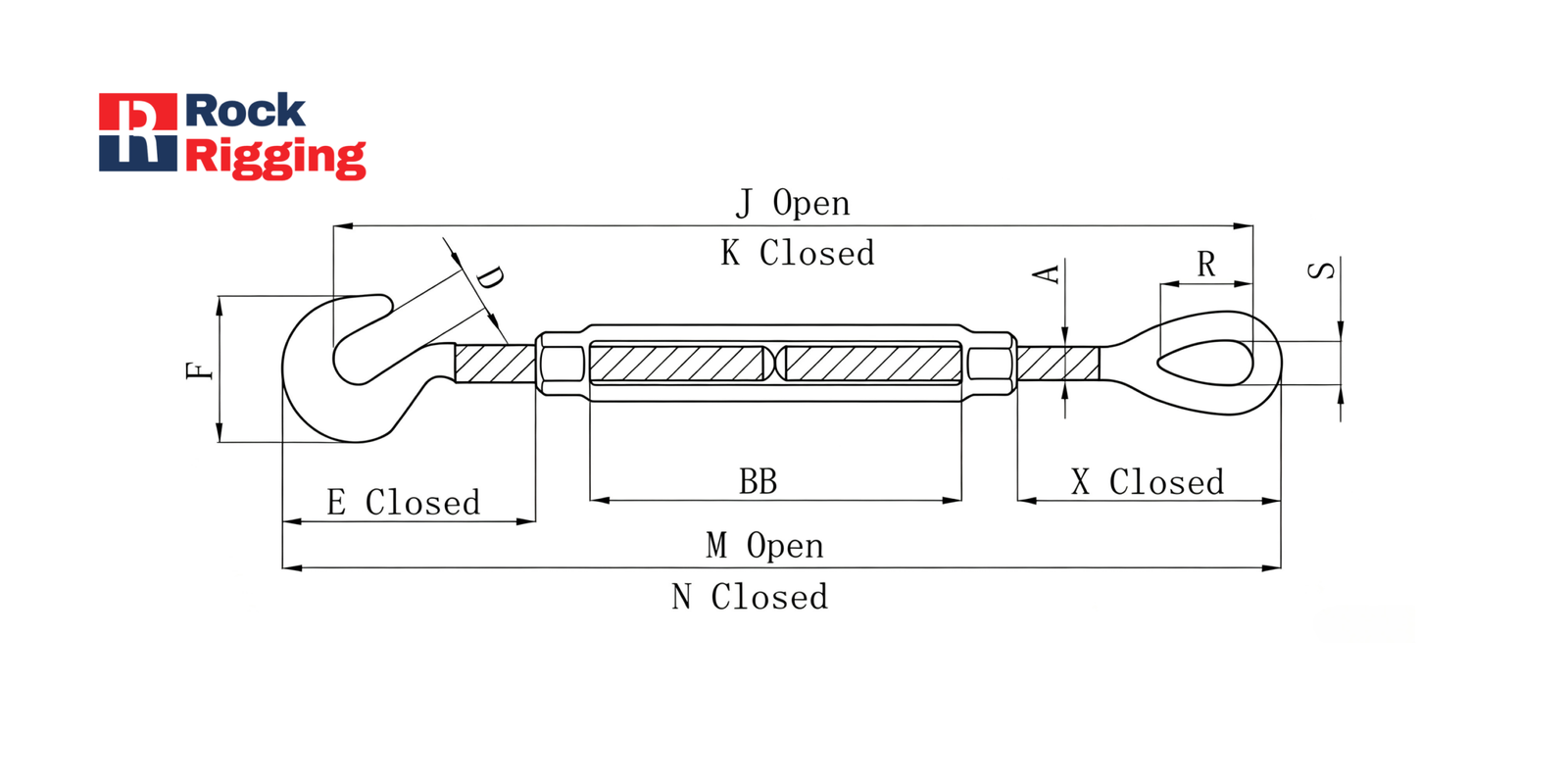

Size(in) WLL(lbs) Weight(lbs) A D E Closed F J Open K Closed M Open N Closed R S X Closed BB
1/4*4 400 0.30 0.25 0.45 1.59 1.27 11.46 7.46 12.09 8.09 0.78 0.34 1.75 4.00
5/16*4‑1/2 700 0.47 0.31 0.50 1.94 1.50 13.19 8.69 13.47 9.47 0.94 0.44 2.09 4.50
3/8*6 1000 0.75 0.38 0.56 2.30 1.77 16.50 10.98 17.94 11.94 1.12 0.53 2.52 6.00
1/2*6 1500 1.60 0.50 0.66 2.94 2.28 18.45 12.45 19.67 13.16 1.44 0.72 3.23 6.00
1/2*9 1500 1.83 0.50 0.66 2.94 2.28 24.45 15.45 25.67 16.67 1.44 0.72 3.23 9.00
1/2*12 1500 2.08 0.50 0.66 2.94 2.28 30.45 18.45 31.67 19.67 1.44 0.72 3.23 12.00
5/8*6 2250 2.75 0.63 0.84 3.69 2.81 19.96 13.96 21.47 15.47 1.75 0.88 3.90 6.00
5/8*9 2250 3.13 0.63 0.84 3.69 2.81 25.96 16.96 27.47 18.47 1.75 0.88 3.90 9.00
5/8*12 2250 3.50 0.63 0.84 3.69 2.81 31.96 19.96 33.47 21.47 1.75 0.88 3.90 12.00
3/4*6 3000 3.89 0.75 0.98 4.52 3.33 21.63 25.96 23.45 17.45 2.09 1.00 4.69 6.00
3/4*9 3000 4.16 0.75 0.98 4.52 3.33 27.63 31.96 29.45 20.45 2.09 1.00 4.69 9.00
3/4*12 3000 5.43 0.75 0.98 4.52 3.33 33.63 21.63 35.45 23.45 2.09 1.00 4.69 12.00
3/4*18 3000 7.25 0.75 0.98 4.52 3.33 45.63 27.63 47.45 29.45 2.09 1.00 4.69 18.00
7/8*12 4000 8.10 0.88 1.13 5.19 3.78 34.78 22.78 36.91 24.91 2.38 1.25 5.10 12.00
7/8*18 4000 9.95 0.88 1.13 5.19 3.78 46.78 28.78 48.91 30.91 2.38 1.25 5.10 18.00
1*6 5000 9.33 1.00 1.25 5.84 4.25 24.80 18.80 27.20 21.2 3.00 1.44 6.36 6.00
1*12 5000 11.93 1.00 1.25 5.84 4.25 36.80 24.80 39.20 27.2 3.00 1.44 6.36 12.00
1*18 5000 14.00 1.00 1.25 5.84 4.25 48.80 30.80 51.20 33.2 3.00 1.44 6.36 18.00
1*24 5000 17.25 1.00 1.25 5.84 4.25 60.80 36.80 63.20 39.2 3.00 1.44 6.36 24.00
1‑1/4*12 5000 19.00 1.25 1.50 7.22 5.13 39.13 27.13 42.06 30.06 3.56 1.81 7.72 12.00
1‑1/4*18 5000 23.00 1.25 1.50 7.22 5.13 51.13 33.13 54.06 36.06 3.56 1.81 7.72 18.00
1‑1/4*24 5000 27.00 1.25 1.50 7.22 5.13 63.13 39.13 66.06 42.06 3.56 1.81 7.72 24.00
1‑1/2*12 7500 27.50 1.50 1.88 8.34 5.75 41.72 29.72 44.72 32.72 4.06 2.12 8.62 12.00
1‑1/2*18 7500 31.00 1.50 1.88 8.34 5.75 53.72 35.72 56.72 38.72 4.06 2.12 8.62 18.00
1‑1/2*24 7500 37.50 1.50 1.88 8.34 5.75 65.72 41.72 68.72 44.72 4.06 2.12 8.62 24.00

Noted:

Units: Dimensions in inches (in); WLL in tons (lbs); weight in pounds (lbs)
