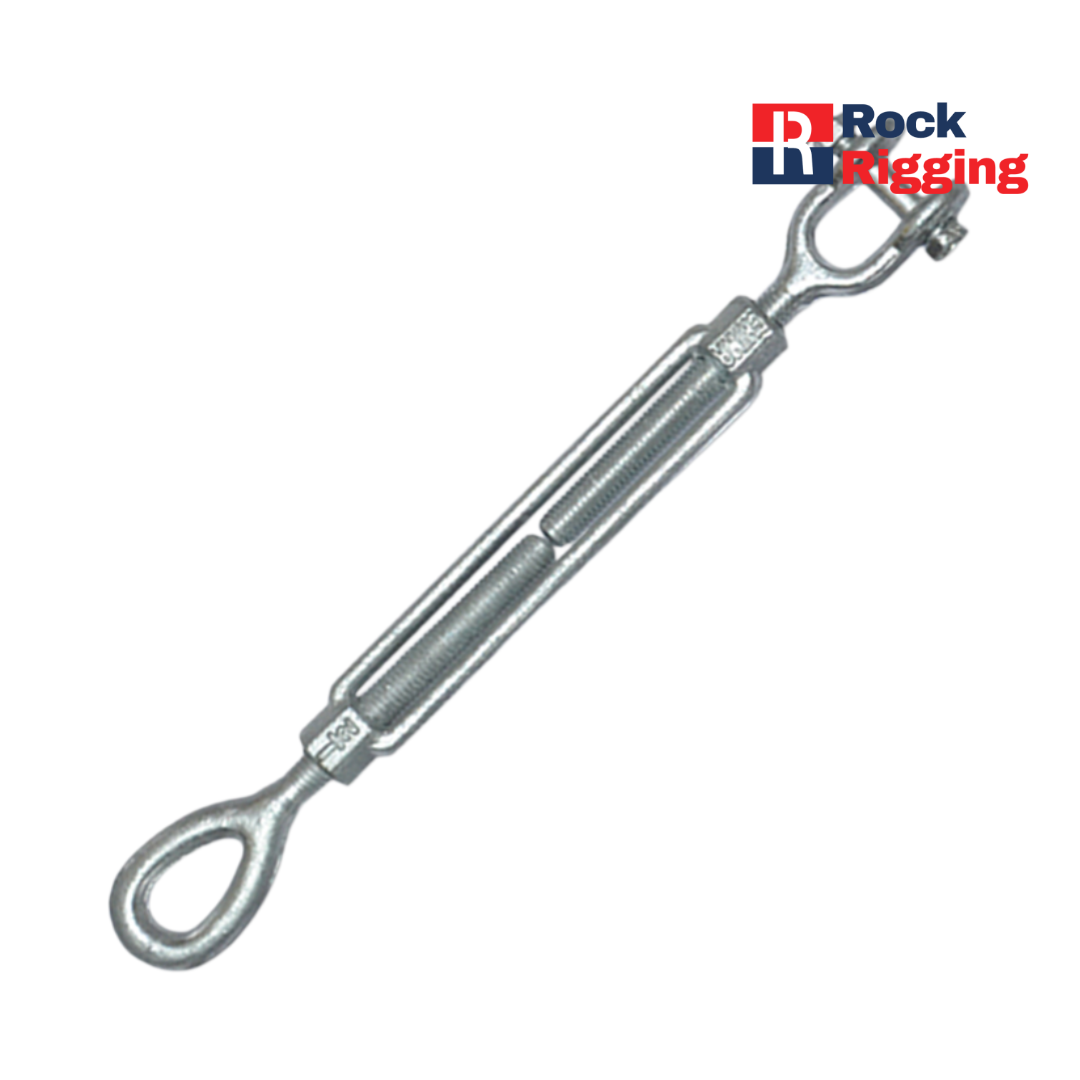

US Type Hot Dip Galvanized Turnbuckle with Eye & Jaw #RRTB004

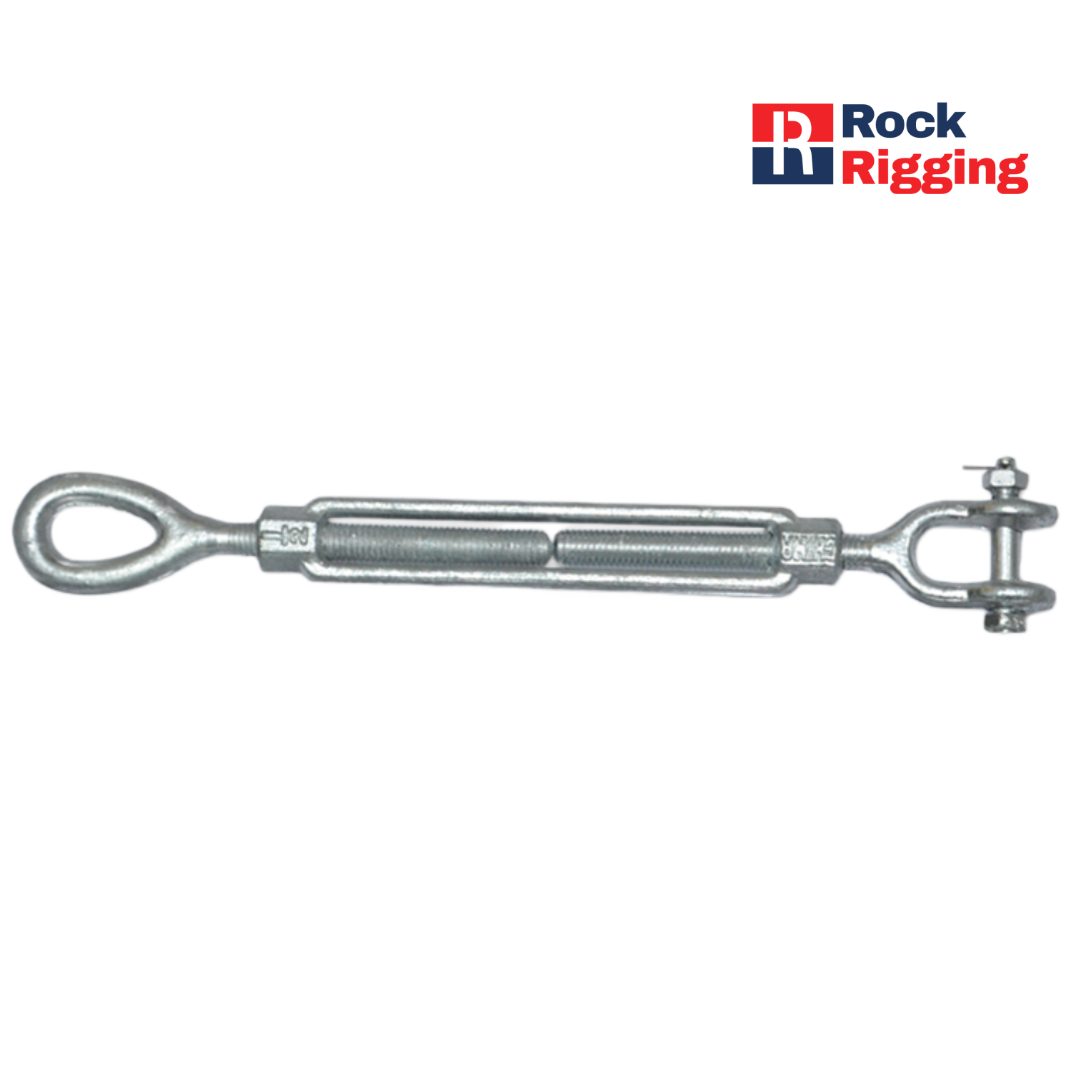

US Type Hot Dip Galvanized Turnbuckle with Eye & Jaw #RRTB004 - 图片 2

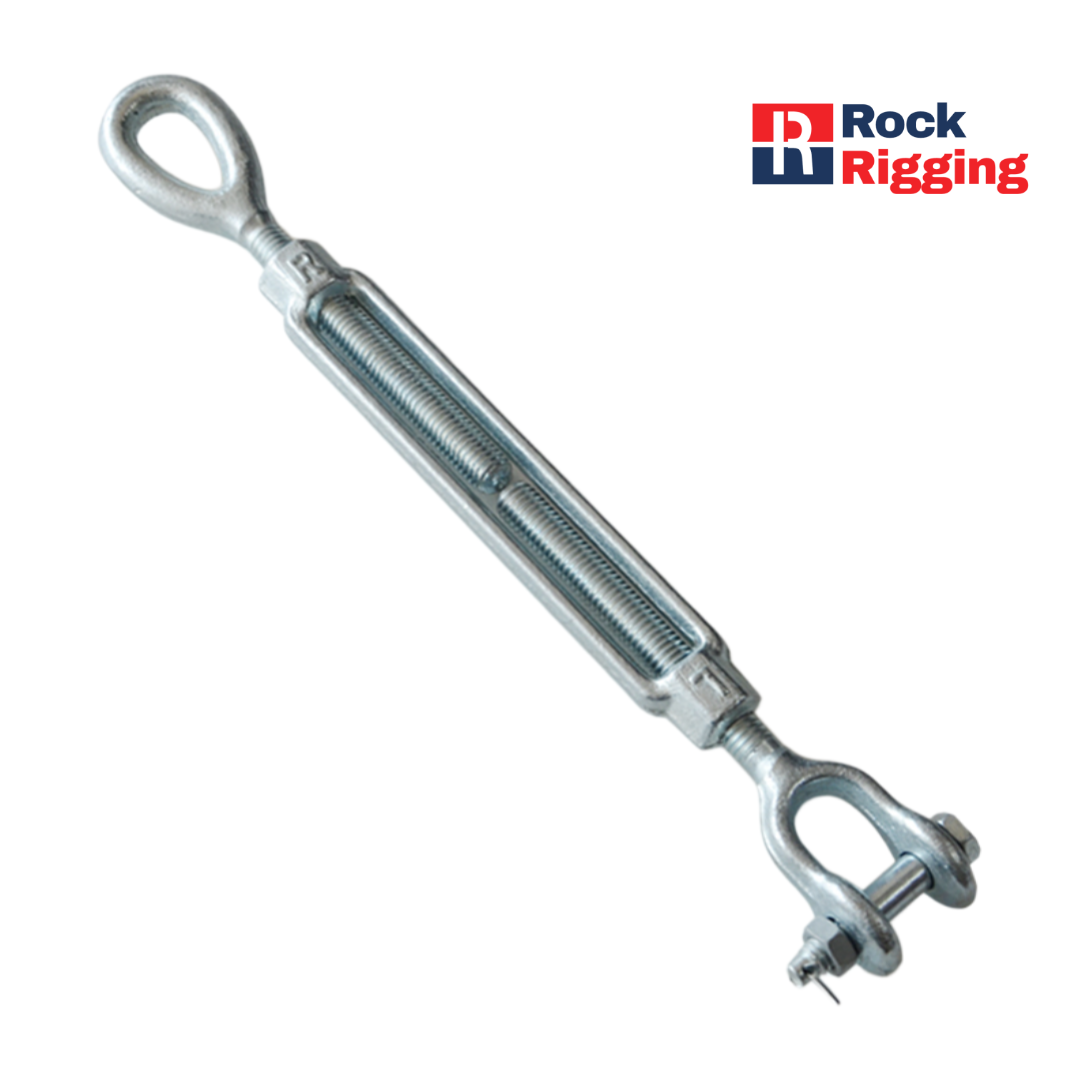

US Type Hot Dip Galvanized Turnbuckle with Eye & Jaw #RRTB004 - 图片 3

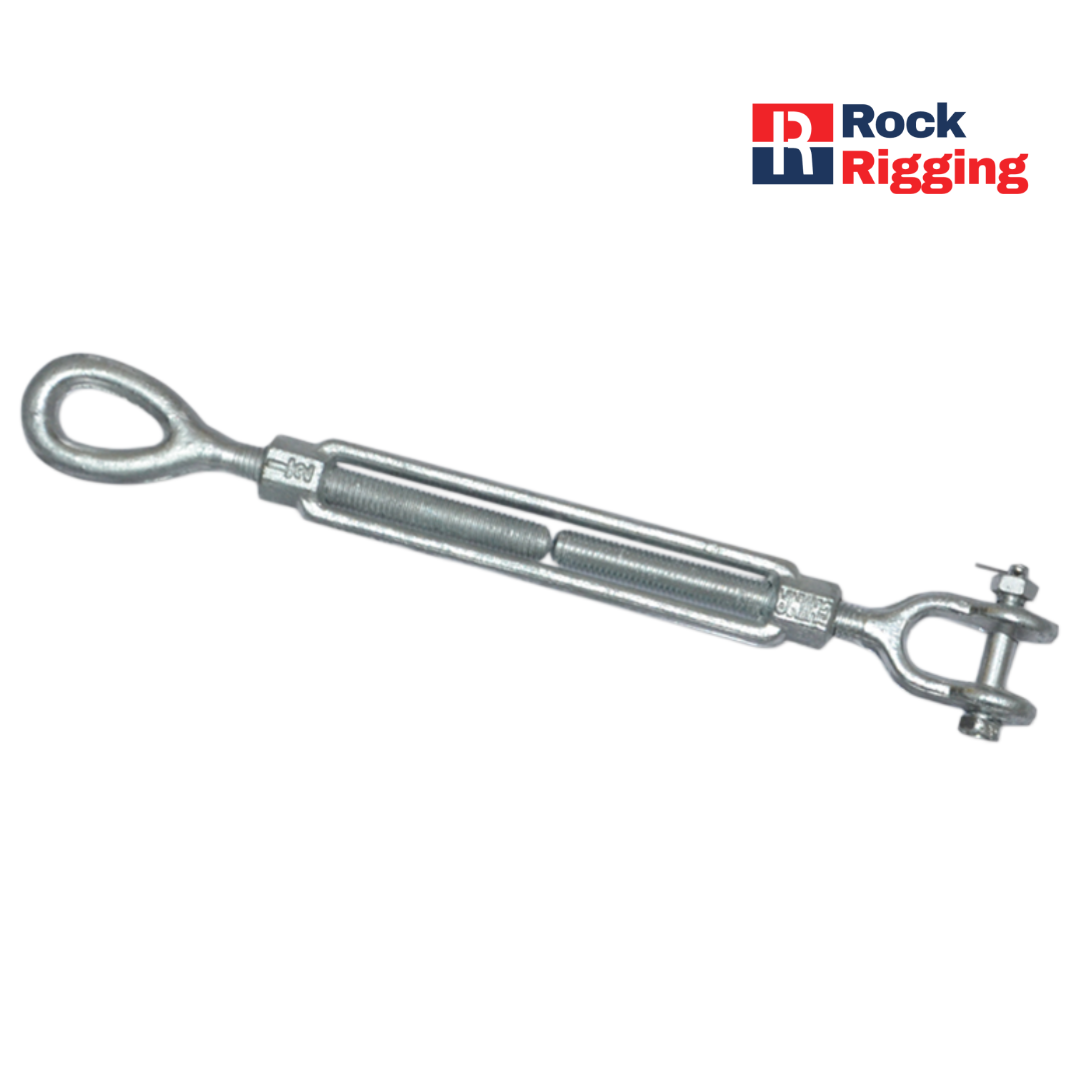

US Type Hot Dip Galvanized Turnbuckle with Eye & Jaw #RRTB004 - 图片 4

US Type Hot Dip Galvanized Turnbuckle with Eye & Jaw #RRTB004

Features:

  • Material:45#Carbon Steel
  • Standard: US Standard
  • Technology: Drop Forged
  • Surface Finish: Hot Dip Galvanized
  • Ultimate Load:5 times of the WLL (Working Load Limit)
  • WARNING: Do not exceed the Working load limit.

Main Applications:

  • Wire Rope Tensioning – Tighten and adjust wire rope assemblies.
  • Construction & Structural Bracing – Provide tension for steel structures and support systems.
  • Marine & Boating – Secure cables, rigging, and mooring systems.
  • Fencing & Cable Railings – Maintain proper tension in fencing and railing systems.
  • Lifting & Rigging – Adjust lifting slings and rigging connections.
  • Utility & Power Lines – Tension guy wires and overhead cable systems.
  • Industrial Equipment – Stabilize machinery, frames, and support structures.
  • Agriculture & Greenhouses – Tighten support cables for farms and greenhouse structures.

Partner with Rock Rigging:

  • Low MOQ: Small trial orders are welcome.
  • Fast Lead Time: Quick production & delivery.
  • OEM & Customization: Logo, packaging, and special sizes available.
  • Strict Quality Control: 100% inspection before shipment
  • Global Export Experience: Serving 30+ countries
  • 24H Quick Response: Professional sales support.
用于产品页面
SKU： RRTB004 分类： 品牌：

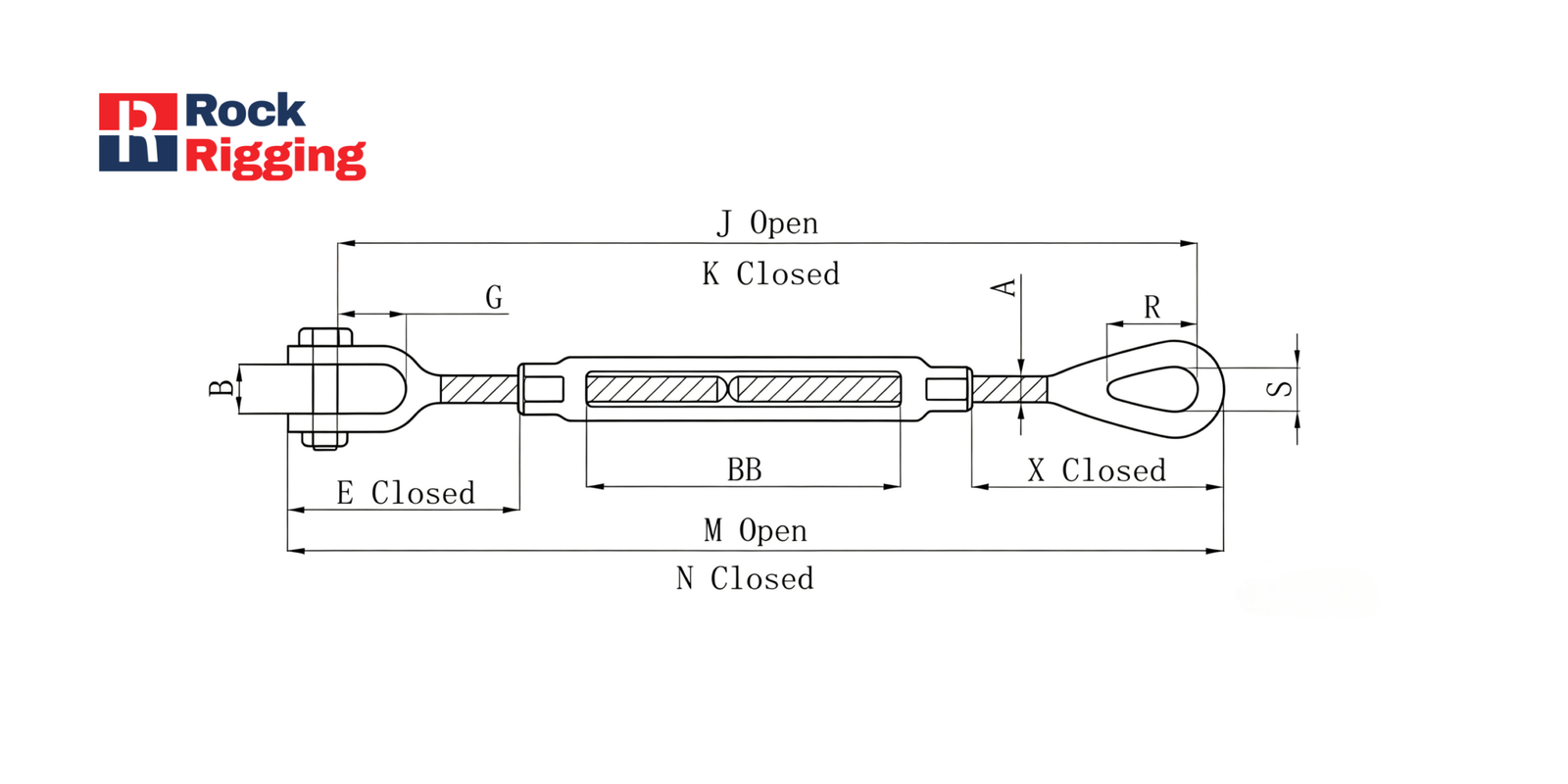

Size(in) WLL(lbs) Weight(lbs) A B E Closed G J Open K Closed M Open N Closed R S X Closed BB
1/4*4 500 0.32 0.25 0.41 1.58 0.62 11.35 7.35 12.07 8.07 0.78 0.34 1.75 4.00
5/16*4‑1/2 800 0.47 0.31 0.47 1.98 0.87 13.71 8.71 14.01 9.51 0.94 0.44 2.09 4.50
3/8*6 1200 0.76 0.38 0.50 2.12 0.87 16.81 10.81 17.77 11.77 1.12 0.53 2.52 6.00
1/2*6 2200 1.53 0.50 0.63 2.75 1.06 18.29 12.28 19.48 13.48 1.44 0.72 3.23 6.00
1/2*9 2200 1.71 0.50 0.63 2.75 1.06 24.29 15.29 25.48 16.48 1.44 0.72 3.23 9.00
1/2*12 2200 2.06 0.50 0.63 2.75 1.06 30.29 18.29 31.48 19.48 1.44 0.72 3.23 12.00
5/8*6 3500 2.35 0.63 0.75 3.50 1.31 19.74 13.74 21.28 15.28 1.75 0.88 3.90 6.00
5/8*9 3500 3.06 0.63 0.75 3.50 1.31 25.74 16.74 27.28 18.28 1.75 0.88 3.90 9.00
5/8*12 3500 3.78 0.63 0.75 3.50 1.31 31.74 19.74 33.28 21.28 1.75 0.88 3.90 12.00
3/4*6 5200 4.00 0.75 0.94 4.18 1.50 21.19 15.19 23.11 17.11 2.09 1.00 4.69 6.00
3/4*9 5200 4.75 0.75 0.94 4.18 1.50 27.19 18.19 29.11 20.11 2.09 1.00 4.69 9.00
3/4*12 5200 5.36 0.75 0.94 4.18 1.50 33.19 21.19 35.11 23.11 2.09 1.00 4.69 12.00
3/4*18 5200 7.00 0.75 0.94 4.18 1.50 45.19 27.19 47.11 29.11 2.09 1.00 4.69 18.00
7/8*12 7200 8.00 0.88 1.13 4.85 1.75 34.34 23.34 36.57 24.57 2.38 1.25 5.10 12.00
7/8*18 7200 9.75 0.88 1.13 4.85 1.75 46.34 28.34 48.57 30.57 2.38 1.25 5.10 18.00
1*6 10000 8.92 1.00 1.19 5.53 2.06 24.34 18.34 26.89 20.89 3.00 1.44 6.36 6.00
1*12 10000 11.20 1.00 1.19 5.53 2.06 36.34 24.34 38.89 26.89 3.00 1.44 6.36 12.00
1*18 10000 13.30 1.00 1.19 5.53 2.06 48.34 30.34 50.89 32.89 3.00 1.44 6.36 18.00
1*24 10000 17.00 1.00 1.19 5.53 2.06 60.34 36.34 62.89 38.89 3.00 1.44 6.36 24.00
1‑1/4*12 15200 20.00 1.25 1.75 7.21 2.81 38.82 26.82 42.05 30.05 3.56 1.81 7.72 12.00
1‑1/4*18 15200 24.18 1.25 1.75 7.21 2.81 50.82 32.82 54.05 36.05 3.56 1.81 7.72 18.00
1‑1/4*24 15200 28.50 1.25 1.75 7.21 2.81 62.82 38.82 66.05 42.05 3.56 1.81 7.72 24.00
1‑1/2*12 21400 28.99 1.50 2.06 7.88 2.81 40.50 28.50 44.25 32.25 4.06 2.12 8.62 12.00
1‑1/2*18 21400 35.00 1.50 2.06 7.88 2.81 52.50 34.50 56.25 38.25 4.06 2.12 8.62 18.00
1‑1/2*24 21400 39.18 1.50 2.06 7.88 2.81 64.50 40.50 68.25 44.25 4.06 2.12 8.62 24.00
1‑3/4*18 28000 53.75 1.75 2.38 9.40 3.38 55.38 37.38 59.78 42.38 4.62 2.38 10.00 18.00
1‑3/4*24 28000 60.68 1.75 2.38 9.40 3.38 67.38 43.38 71.78 47.78 4.62 2.38 10.00 24.00
2*24 37000 89.00 2.00 2.50 11.86 3.69 72.62 48.62 77.95 53.95 5.75 2.69 13.09 24.00
2‑1/2*24 60000 150.00 2.50 2.88 13.56 4.44 75.80 51.80 82.40 58.40 6.50 3.12 13.78 24.00
2‑3/4*24 75000 183.00 2.75 2.50 15.22 4.19 77.88 53.88 85.50 61.50 7.00 3.25 15.22 24.00

Noted:

Units: Dimensions in inches (in); WLL in tons (lbs); weight in pounds (lbs)
