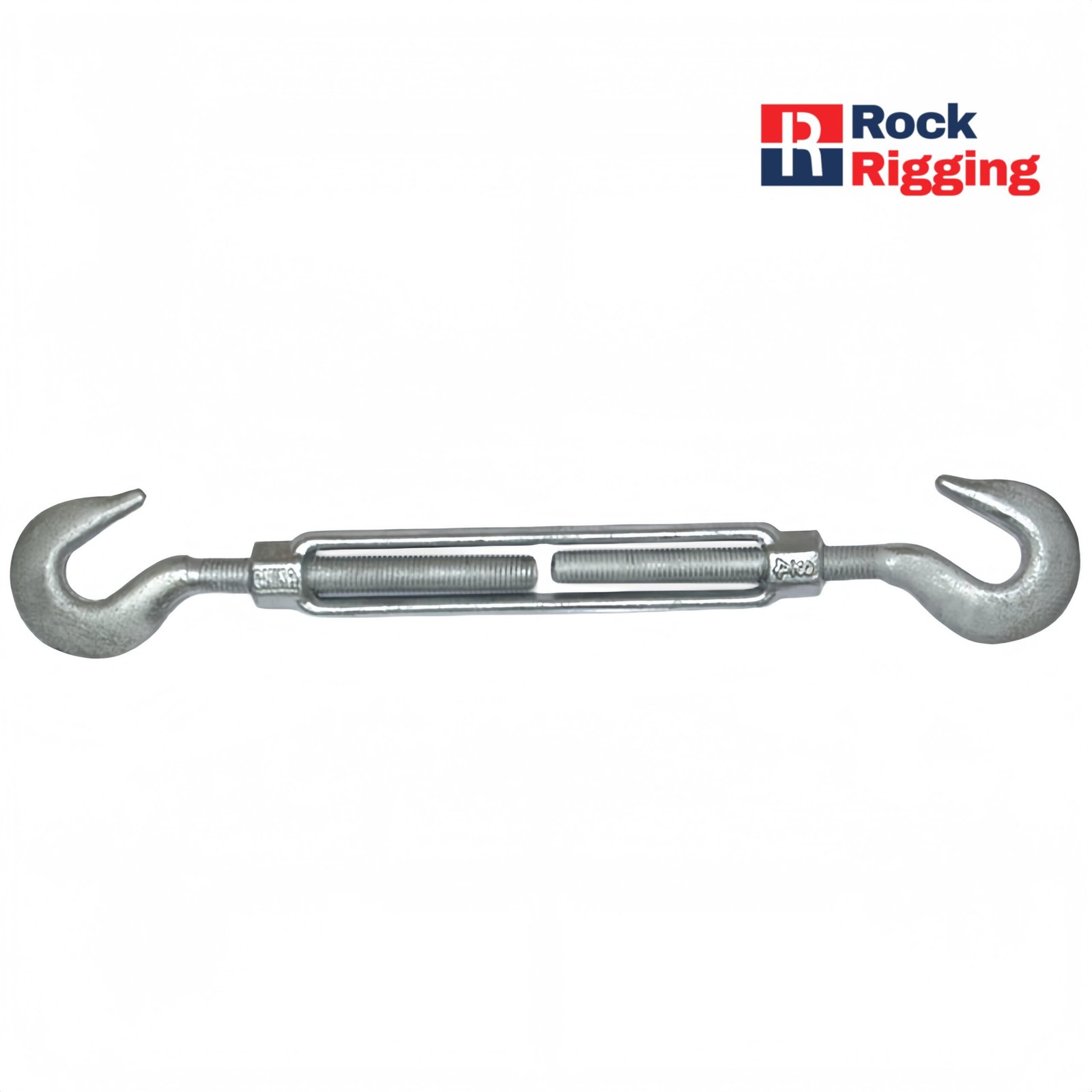

US Type Hot Dip Galvanized Turnbuckle with Hook & Hook (CC Style) #RRTB002

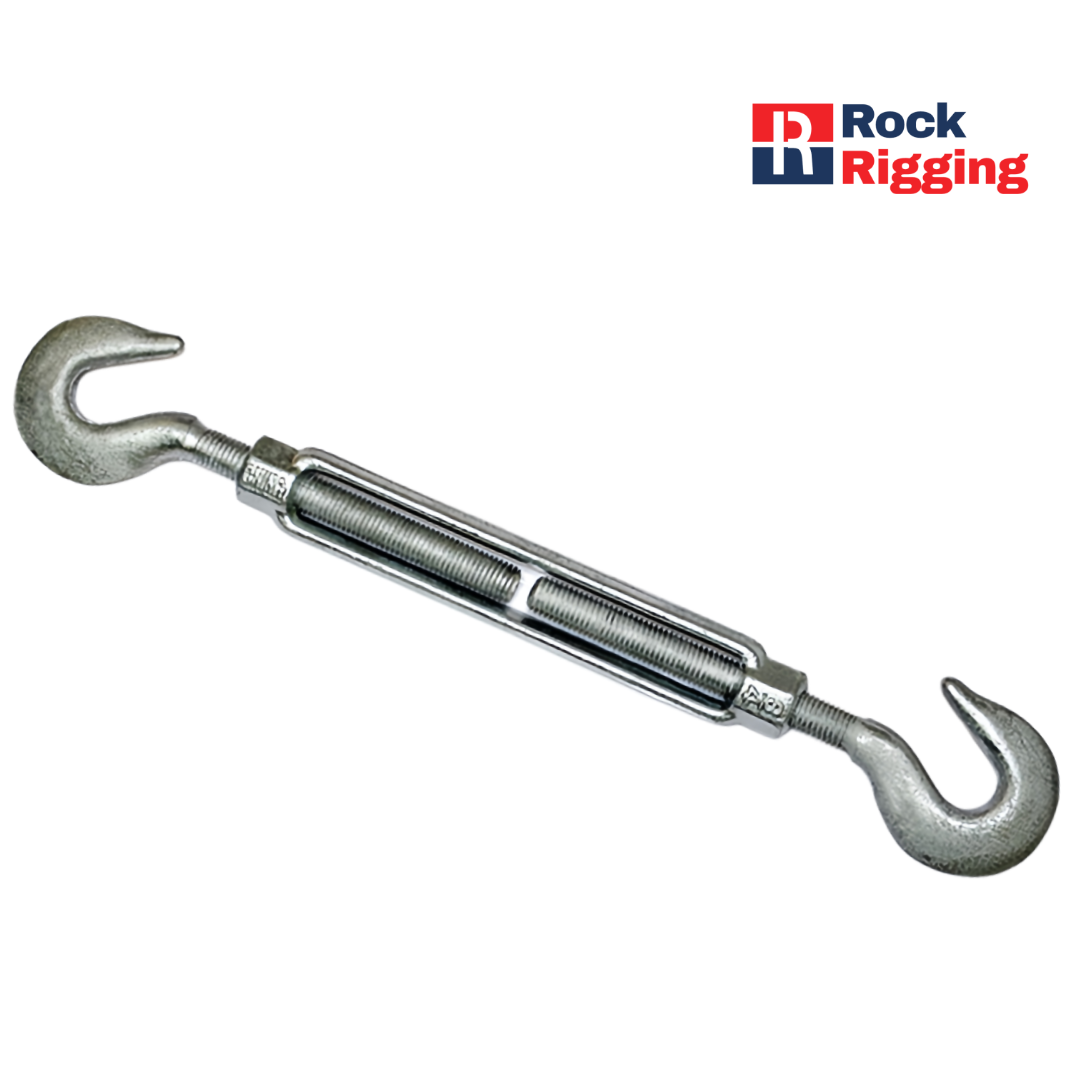

US Type Hot Dip Galvanized Turnbuckle with Hook & Hook (CC Style) #RRTB002 - 图片 2

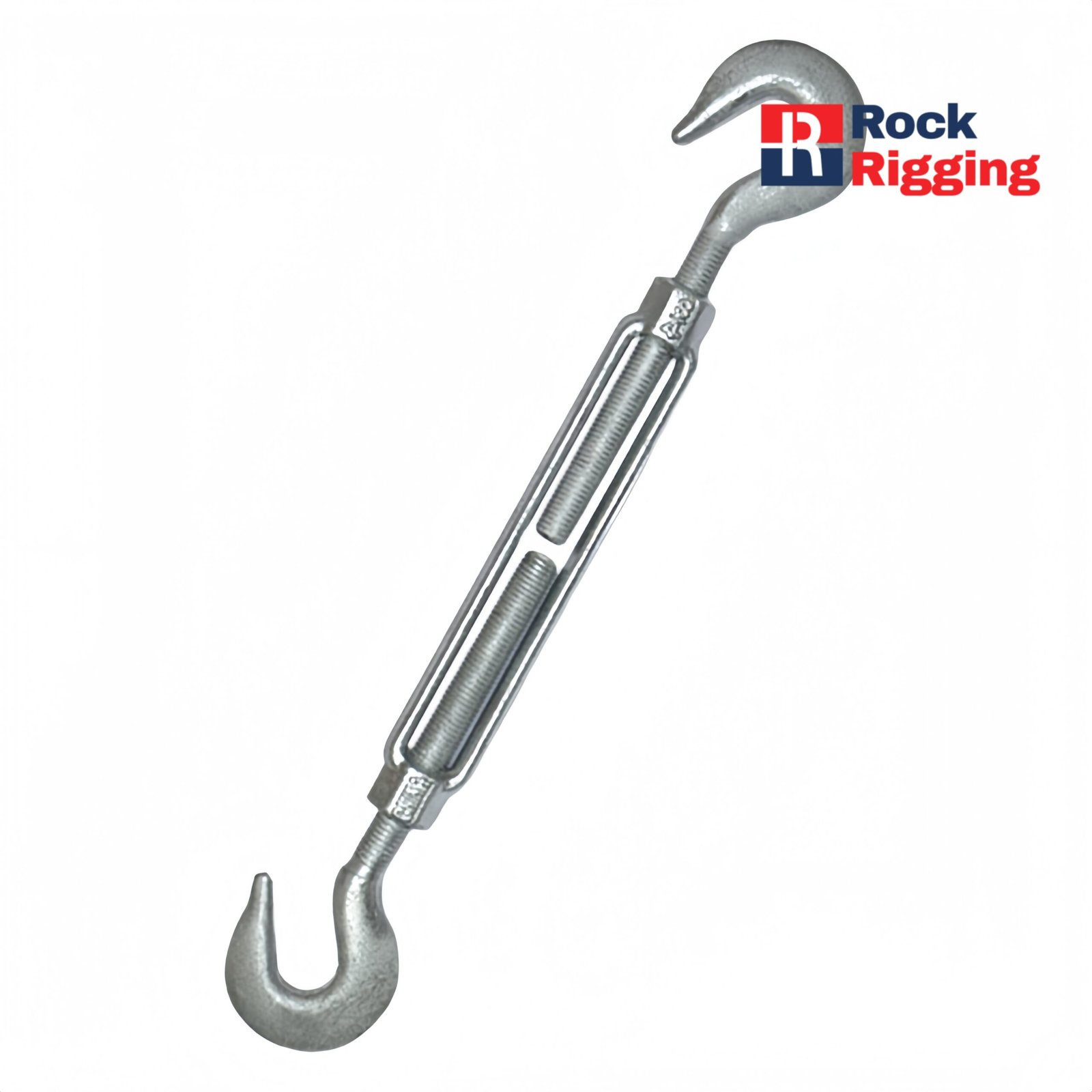

US Type Hot Dip Galvanized Turnbuckle with Hook & Hook (CC Style) #RRTB002 - 图片 3

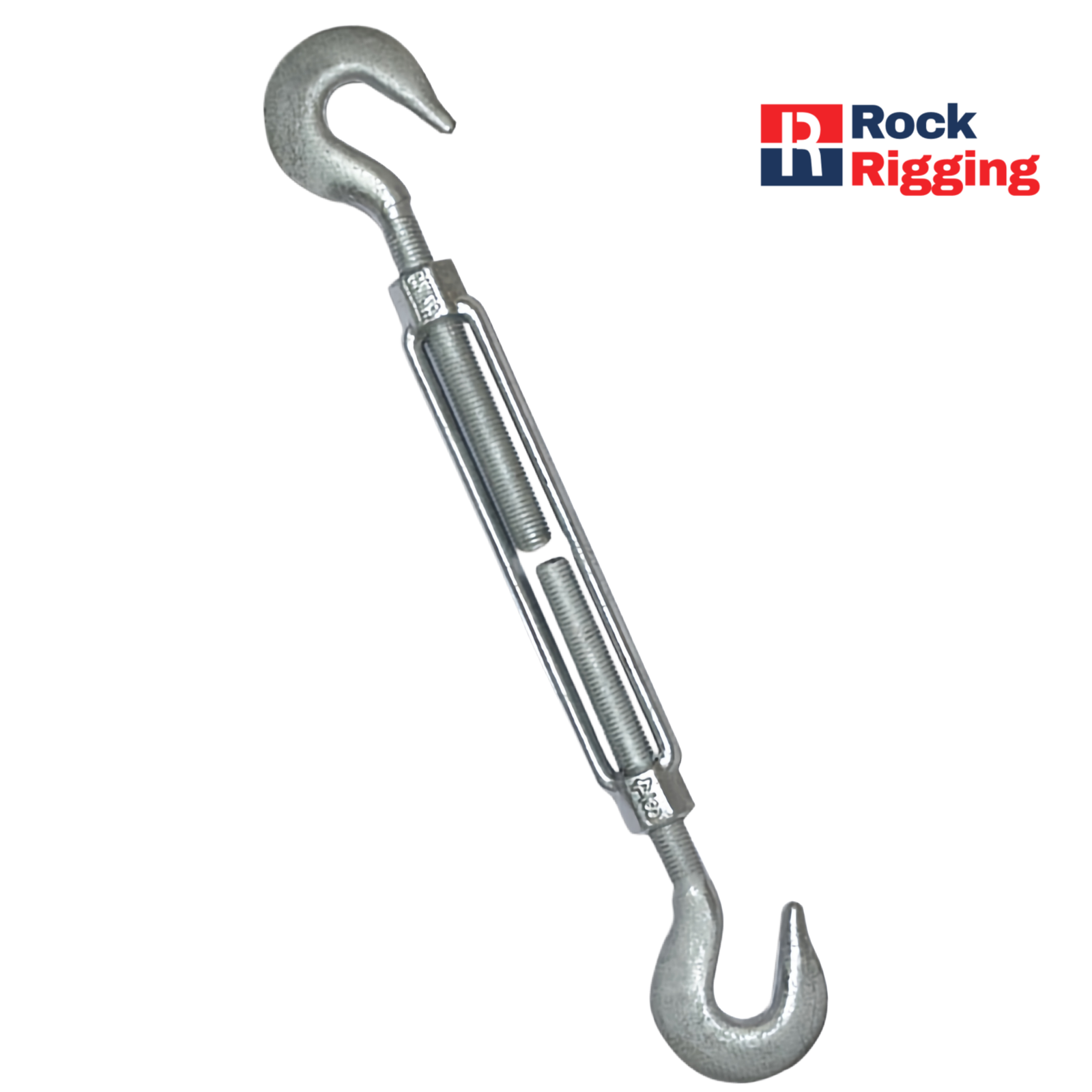

US Type Hot Dip Galvanized Turnbuckle with Hook & Hook (CC Style) #RRTB002 - 图片 4

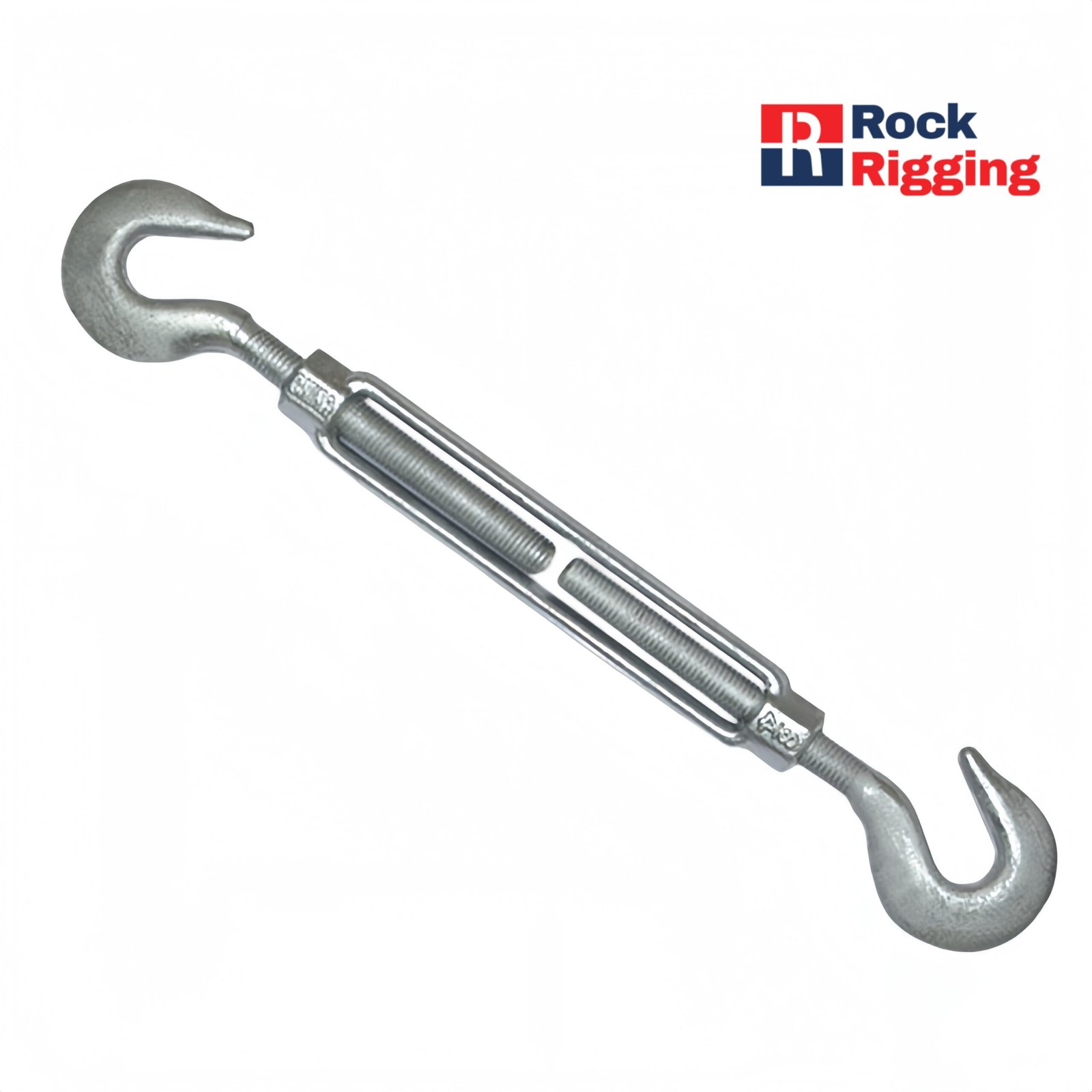

US Type Hot Dip Galvanized Turnbuckle with Hook & Hook (CC Style) #RRTB002 - 图片 5

US Type Hot Dip Galvanized Turnbuckle with Hook & Hook (CC Style) #RRTB002

Features:

  • Material:45#Carbon Steel
  • Standard: US Standard
  • Technology: Drop Forged
  • Surface Finish: Hot Dip Galvanized
  • Ultimate Load:5 times of the WLL (Working Load Limit)
  • WARNING: Do not exceed the Working load limit.

Main Applications:

  • Wire Rope Tensioning – Tighten and adjust wire rope assemblies.
  • Construction & Structural Bracing – Provide tension for steel structures and support systems.
  • Marine & Boating – Secure cables, rigging, and mooring systems.
  • Fencing & Cable Railings – Maintain proper tension in fencing and railing systems.
  • Lifting & Rigging – Adjust lifting slings and rigging connections.
  • Utility & Power Lines – Tension guy wires and overhead cable systems.
  • Industrial Equipment – Stabilize machinery, frames, and support structures.
  • Agriculture & Greenhouses – Tighten support cables for farms and greenhouse structures.

Partner with Rock Rigging:

  • Low MOQ: Small trial orders are welcome.
  • Fast Lead Time: Quick production & delivery.
  • OEM & Customization: Logo, packaging, and special sizes available.
  • Strict Quality Control: 100% inspection before shipment
  • Global Export Experience: Serving 30+ countries
  • 24H Quick Response: Professional sales support.
用于产品页面
SKU： RRTB002 分类： 品牌：

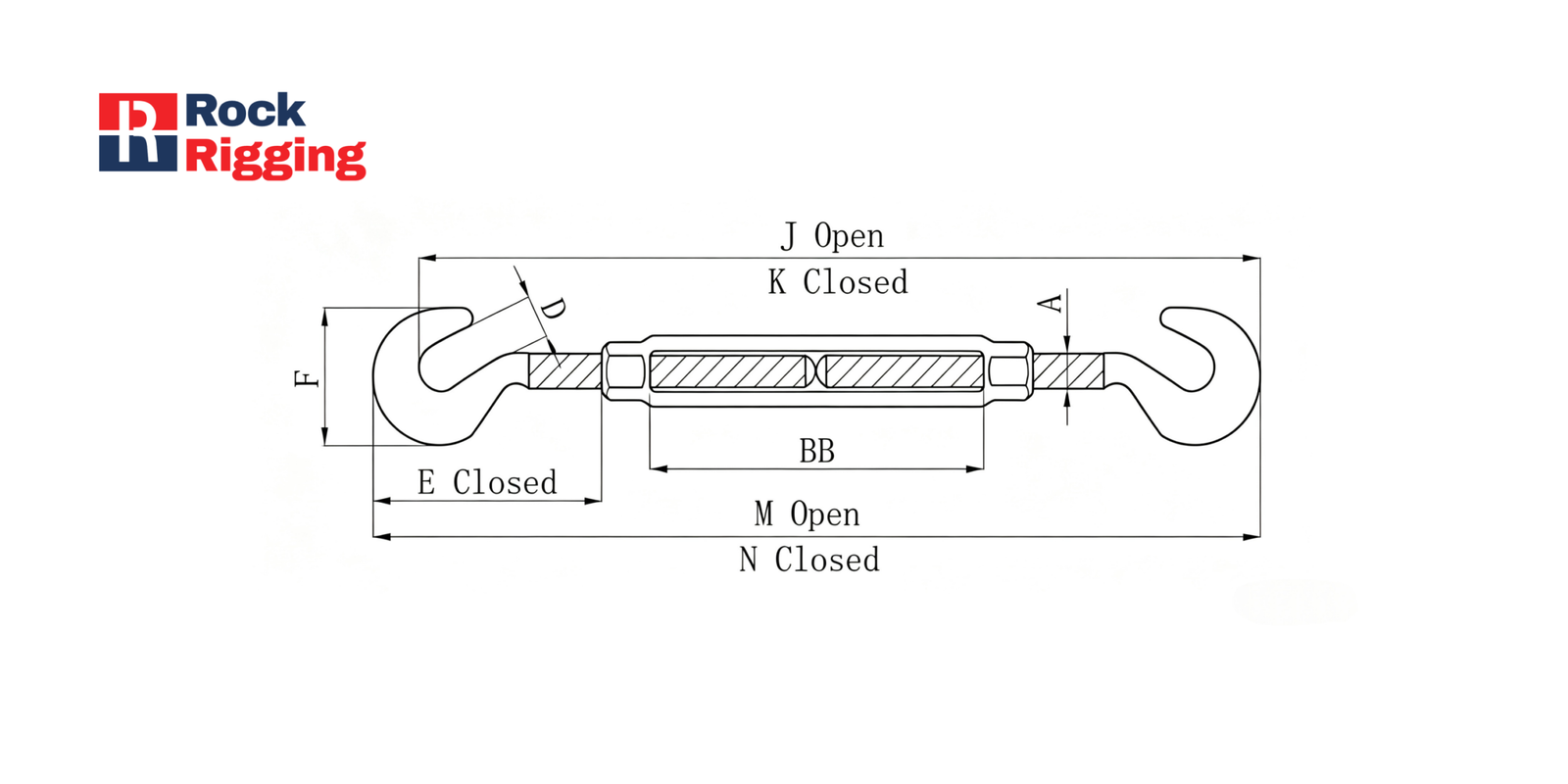

Size(in) WLL(lbs) Weight(lbs) A(in) E Closed(in) J Open(in) K Closed(in) M Open(in) N Closed(in) D(in) F(in) BB(in)
1/4*4 400 0.33 0.25 1.59 11.12 7.12 11.94 7.94 0.45 1.27 4.00
5/16*4‑1/2 700 0.52 0.31 1.94 12.81 8.31 13.81 9.31 0.50 1.50 4.50
3/8*6 1000 0.83 0.38 2.30 16.50 10.50 17.72 11.72 0.56 1.77 6.00
1/2*6 1500 1.88 0.50 2.94 18.82 11.82 20.38 13.38 0.66 2.28 6.00
1/2*12 1500 2.77 0.50 2.94 30.82 17.82 32.38 19.38 0.66 2.28 12.00
5/8*6 2250 3.21 0.63 3.69 20.50 13.25 22.50 15.25 0.90 2.81 6.00
5/8*12 2250 4.58 0.63 3.69 32.50 19.25 34.50 21.25 0.90 2.81 12.00
3/4*6 3000 4.20 0.75 4.52 22.38 14.88 24.78 17.28 0.98 3.33 6.00
3/4*12 3000 6.92 0.75 4.52 34.38 20.88 36.78 23.28 0.98 3.33 12.00
3/4*18 3000 8.65 0.75 4.52 46.38 26.88 48.78 29.28 0.98 3.33 18.00
7/8*12 4000 9.85 0.88 5.19 36.00 22.25 38.75 25.00 1.13 3.78 12.00
1*12 5000 11.93 1.00 5.84 37.63 23.63 40.69 26.69 1.25 4.25 12.00
1*18 5000 14.00 1.00 5.84 49.63 29.63 52.69 32.69 1.25 4.25 18.00
1*24 5000 17.25 1.00 5.84 61.63 35.63 64.69 38.69 1.25 4.25 24.00
1‑1/4*12 6500 20.58 1.25 7.22 40.44 25.94 44.06 29.56 1.50 5.13 12.00
1‑1/4*18 6500 23.00 1.25 7.22 52.44 31.94 56.06 35.56 1.50 5.13 18.00
1‑1/4*24 6500 27.00 1.25 7.22 64.44 37.94 68.06 41.56 1.50 5.13 24.00
1‑1/2*12 7500 27.50 1.50 8.34 43.94 28.94 47.44 32.44 1.88 5.75 12.00
1‑1/2*18 7500 31.00 1.50 8.34 55.94 34.94 59.44 38.44 1.88 5.75 18.00
1‑1/2*24 7500 37.50 1.50 8.34 67.94 40.94 71.44 44.44 1.88 5.75 24.00

Noted:

Units: Dimensions in inches (in); WLL in tons (lbs); weight in pounds (lbs)
