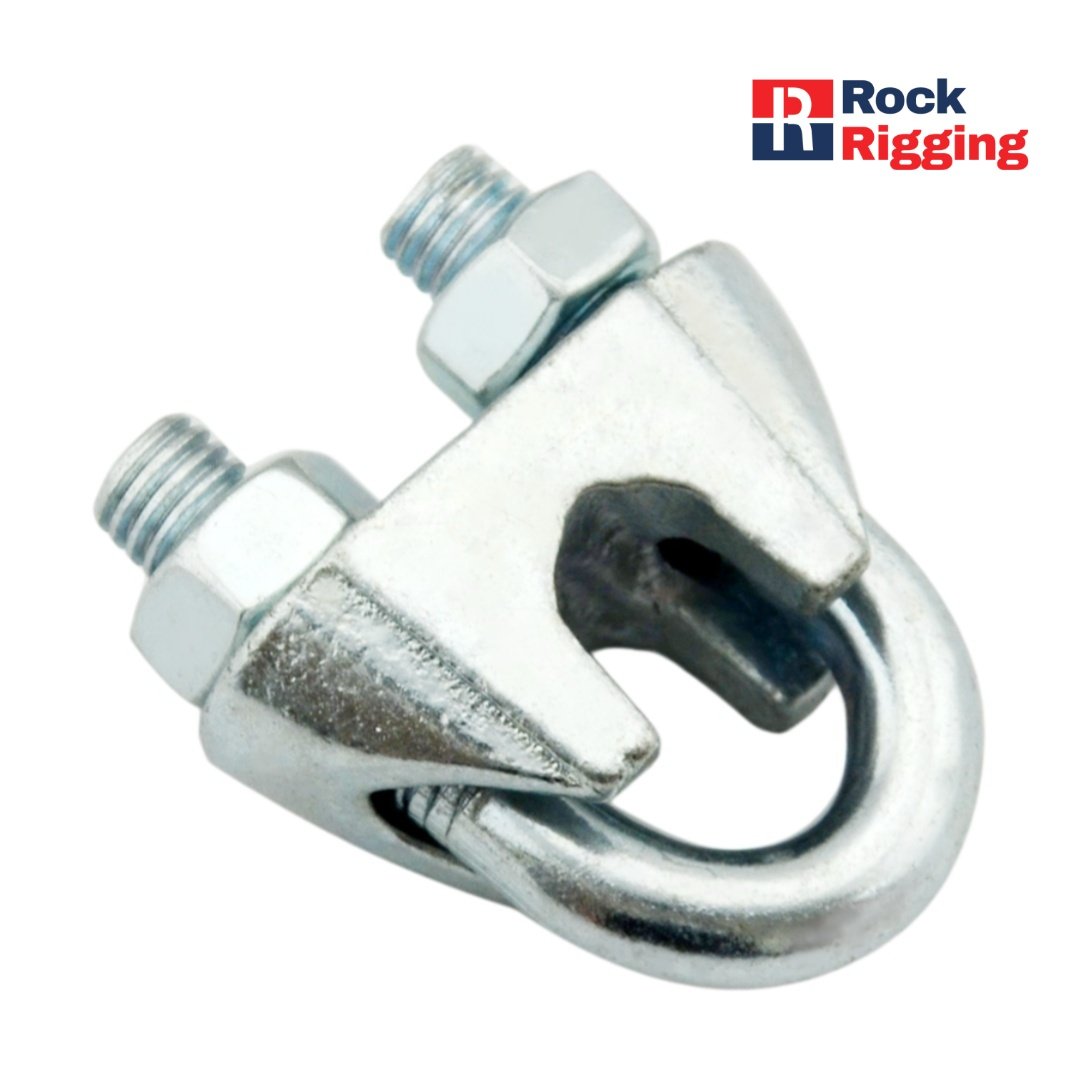

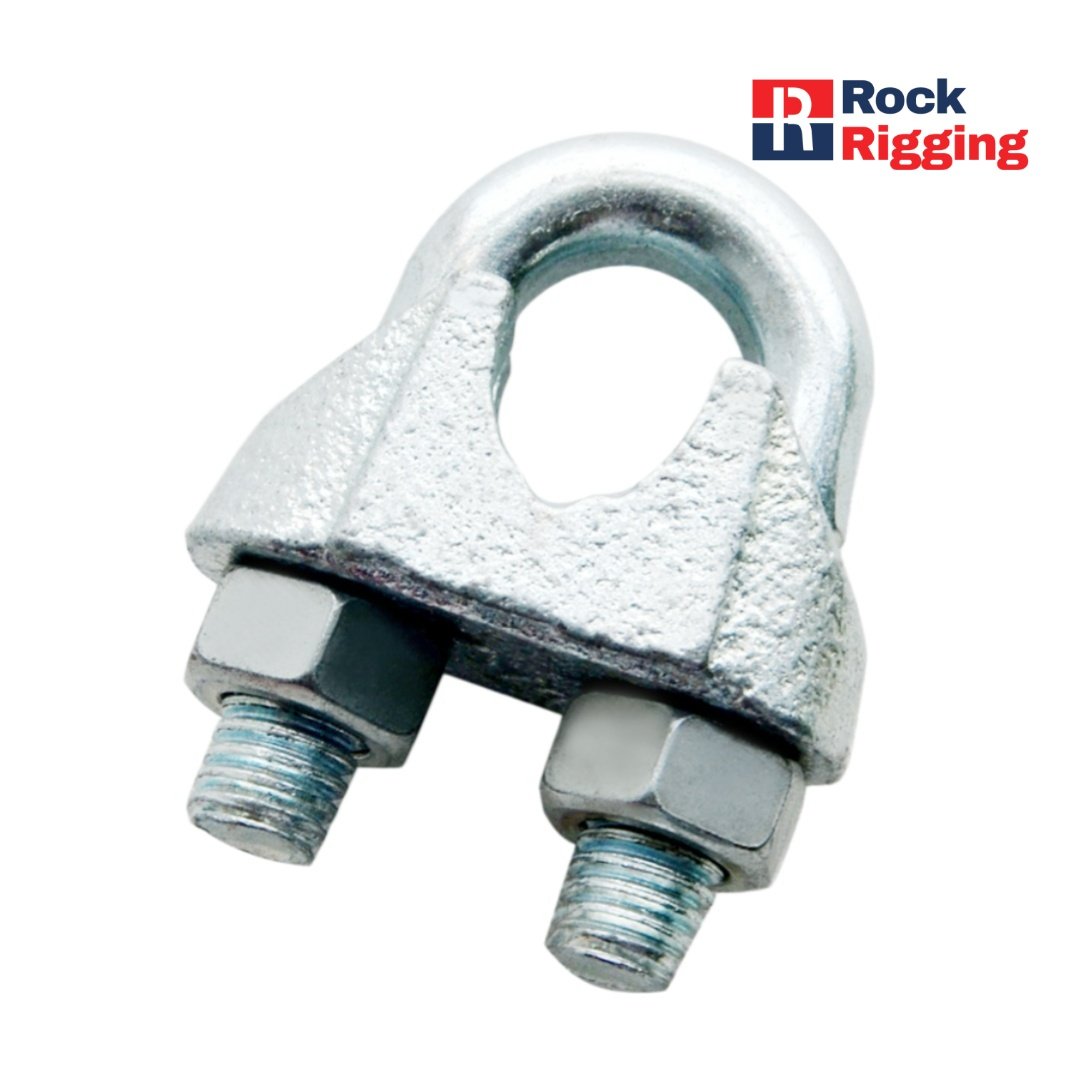

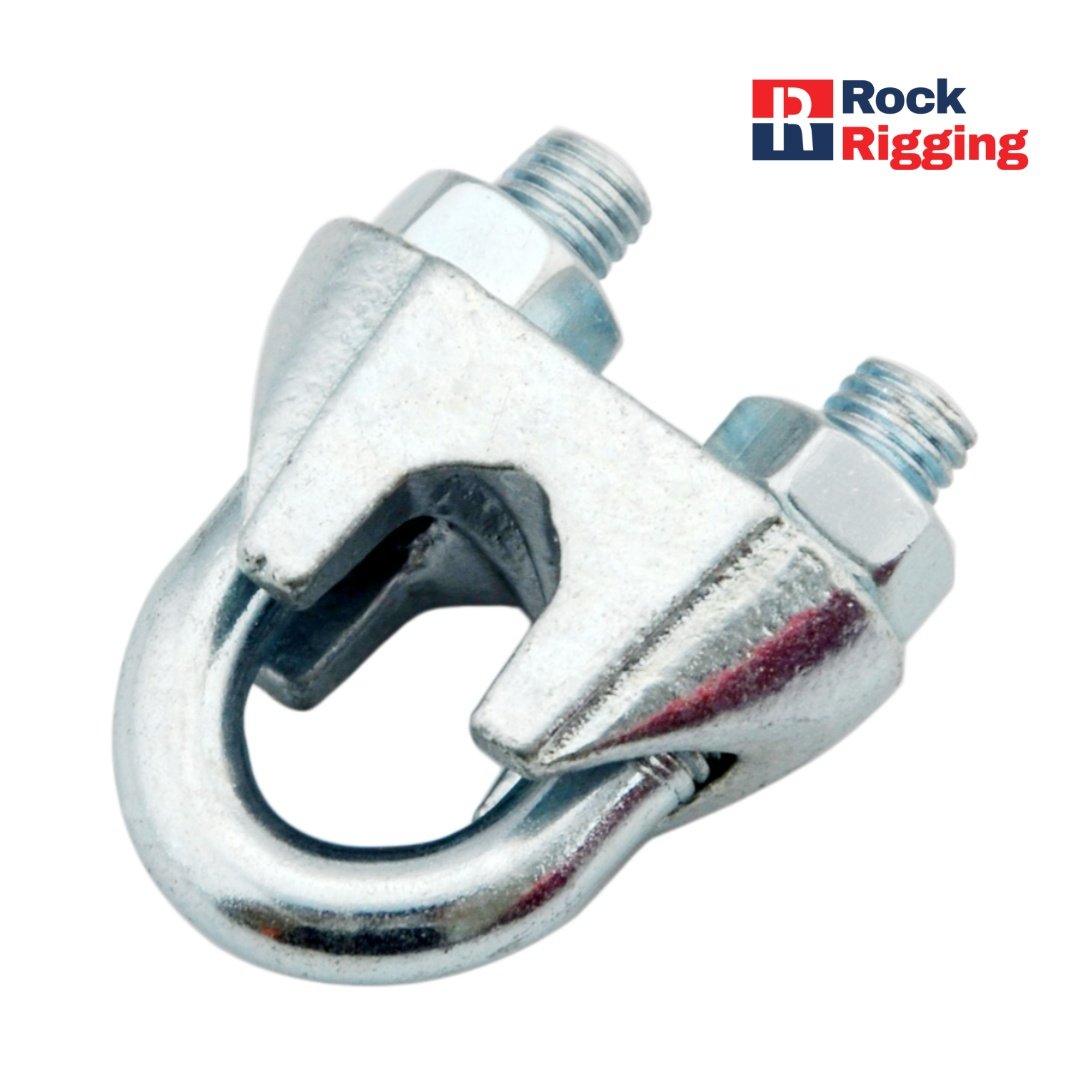

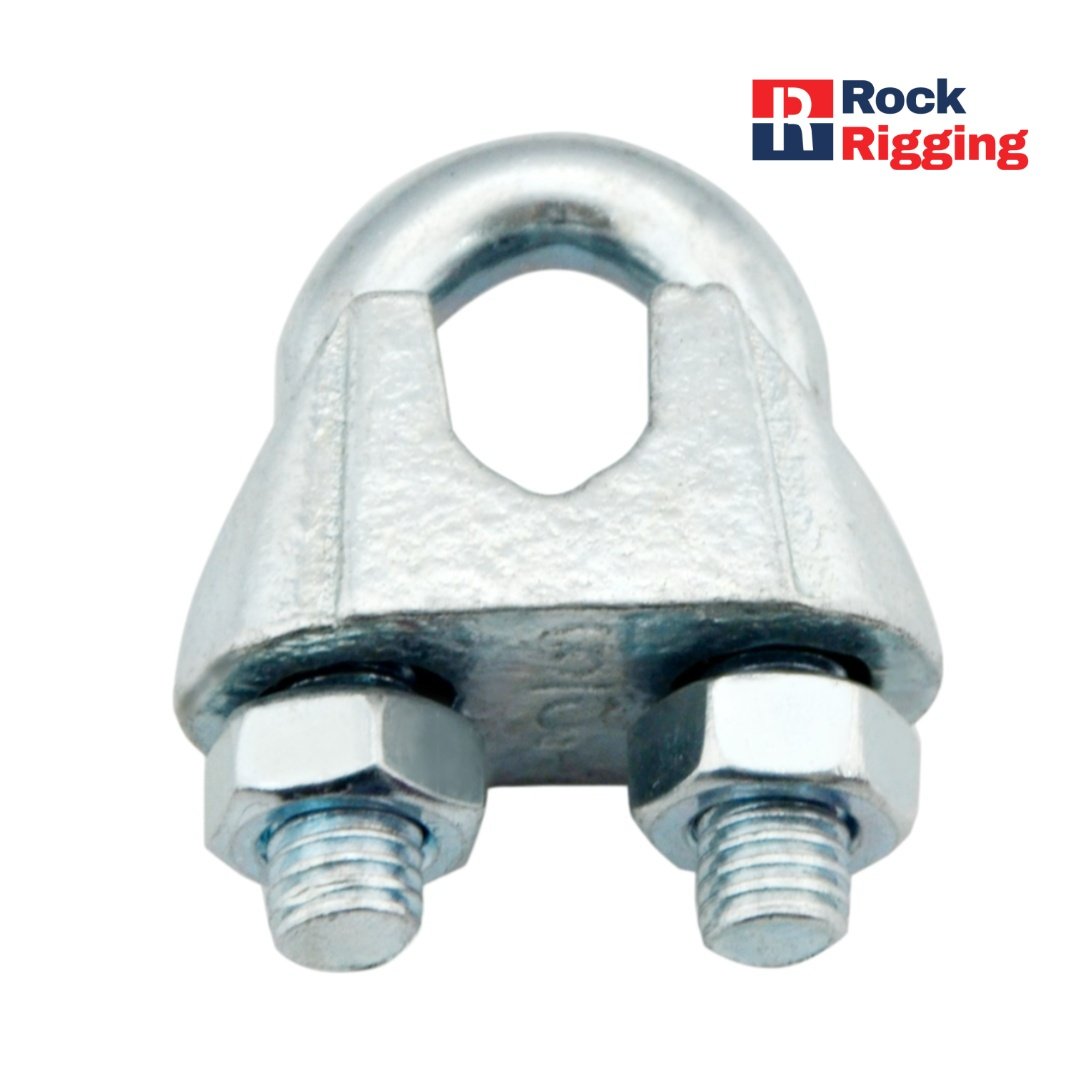

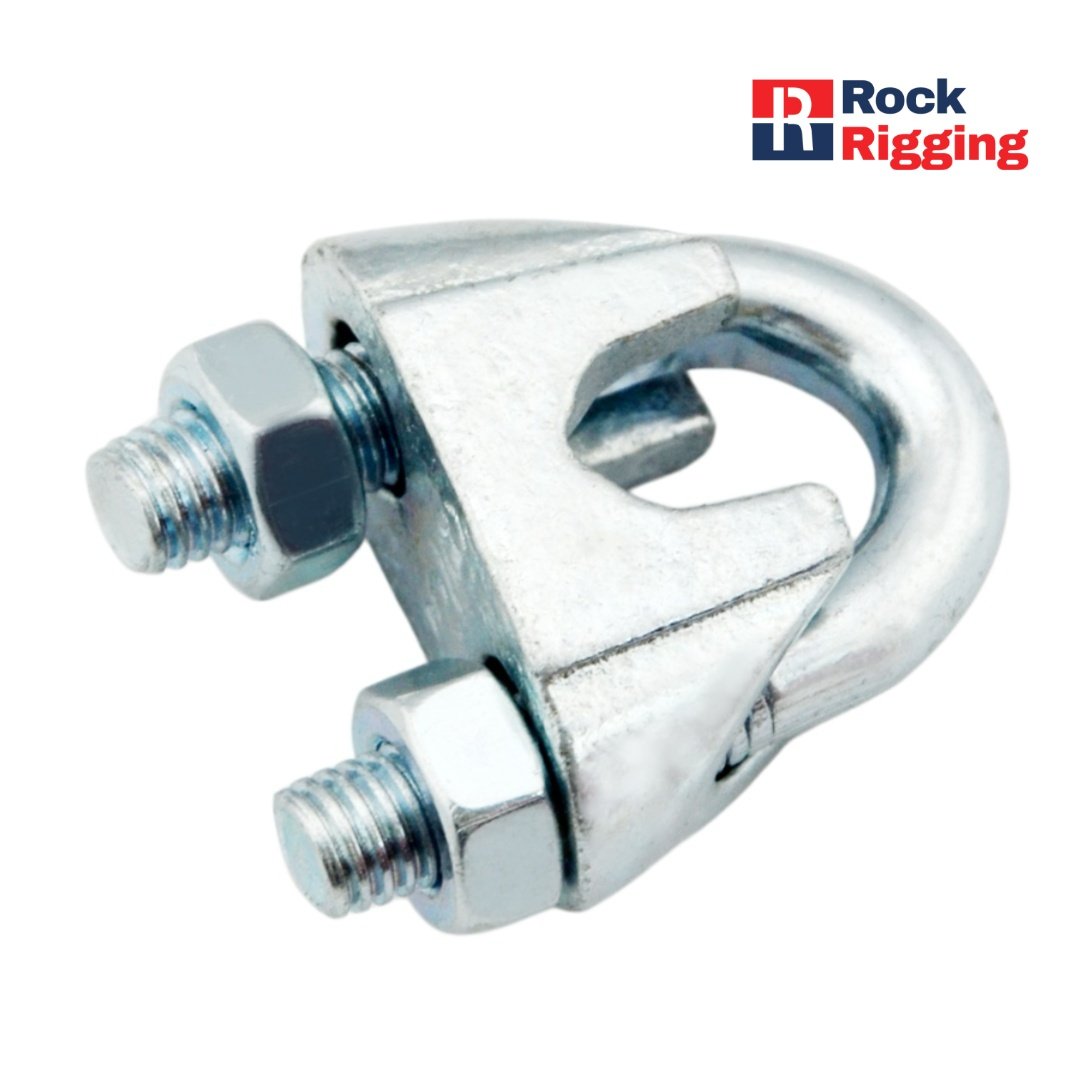

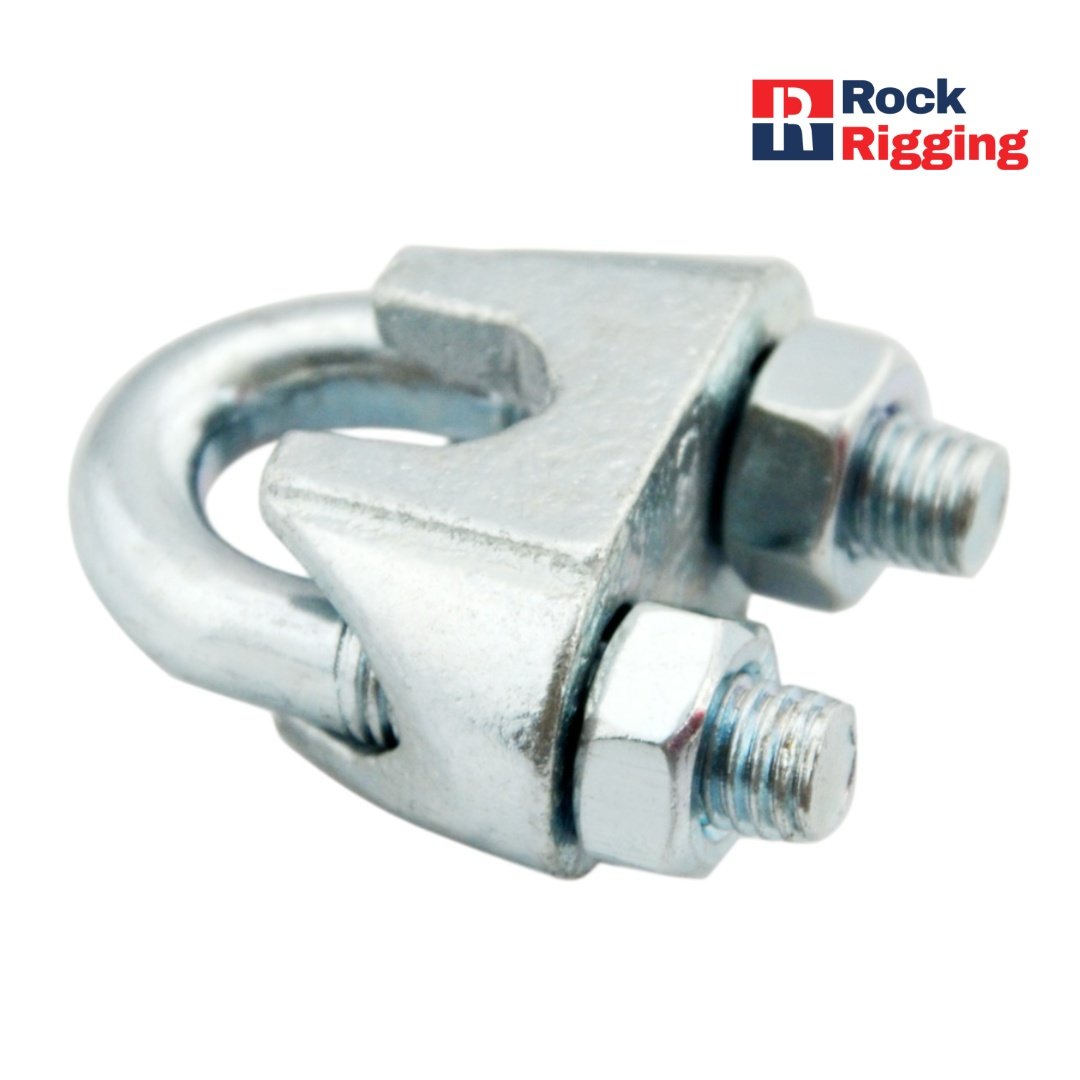

US Standard Malleable Wire Rope Clip #RRRC002

Low MOQ: Small trial orders are welcome.
Fast Lead Time: Quick production &amp; delivery.
OEM &amp; Customization: Logo, packaging, and special sizes available.
Strict Quality Control: 100% inspection before shipment
Global Export Experience: Serving 30+ countries
24H Quick Response: Professional sales support.

Features:

Material: Body: Malleable Steel;U Bolt: Q235 Carbon Steel
Standard: US Standard
Technology: Casting
Surface Finish: Zinc Plate
Main Use: Wire Rope Clips are used to secure and terminate wire rope ends in rigging, construction, marine, fencing, cable railing, and industrial applications.
WARNING: Do not exceed the Working load limit.

Wire Rope Termination – Secure and terminate wire rope ends.
Cable & Rope Connections – Create reliable connections in wire rope assemblies.
Rigging Applications – Used for general rigging, bracing, and support systems.
Fencing & Guardrails – Secure wire rope in fencing and railing systems.
Marine & Construction – Commonly used for marine rigging, construction, and structural applications.
Industrial Equipment – Suitable for cable securing and tensioning applications.

SKU： RRRC002 分类： Wire Rope Clips, Wire Rope Fittings 品牌： ROCK RIGGING

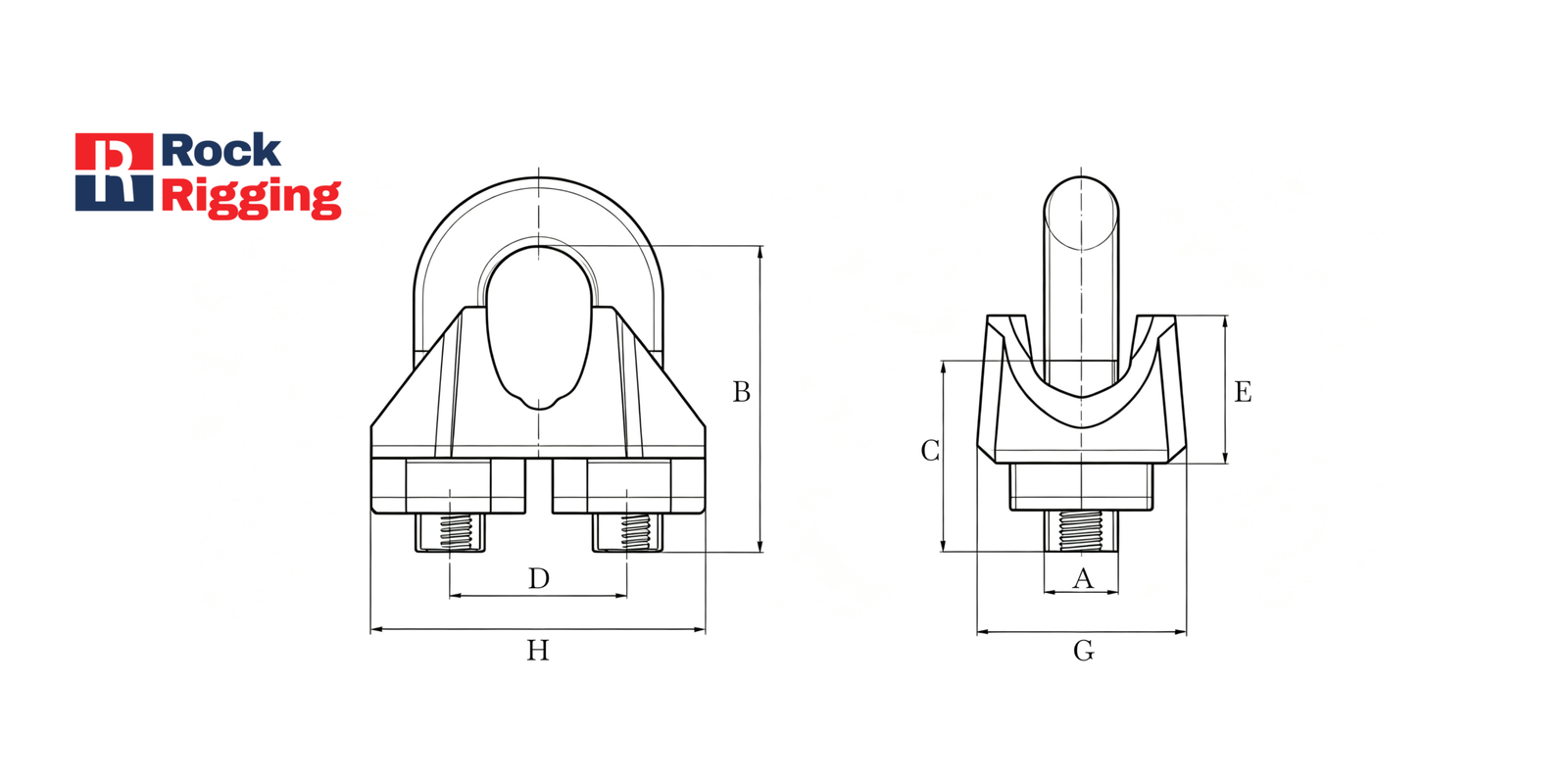

Size (in)	A	B	C	D	E	G	H	Weight (lbs)/100 pcs
1/8	1/4	13/16	1/2	1/2	7/16	1/2	15/16	4.30
3/16	1/4	31/32	5/8	9/16	1/2	9/16	1 1/16	6.80
1/4	5/16	1 7/32	7/8	11/16	5/8	11/16	1 3/8	14.50
5/16	5/16	1 7/32	7/8	11/16	11/16	11/16	1 3/8	15.00
3/8	3/8	1 5/8	1	7/8	13/16	7/8	1 5/8	21.50
7/16	3/8	1 5/8	1	7/8	13/16	15/16	1 5/8	24.00
1/2	7/16	2	1 1/4	1	1 1/16	1	1 7/8	37.00
9/16	1/2	2 5/16	1 15/32	1 3/16	1 3/16	1 1/8	2 3/16	55.00
5/8	1/2	2 5/16	1 15/32	1 3/16	1 5/16	1 1/8	2 3/16	59.00
3/4	9/16	2 9/16	1 3/4	1 11/32	1 1/2	1 1/4	2 7/16	84.00
7/8	5/8	3 1/16	1 13/16	1 5/8	1 3/4	1 3/4	2 7/8	128.00
1	5/8	3 3/8	2 1/16	1 3/4	1 15/16	2	3	150.00
1 1/8	3/4	3 7/8	2 3/16	2 1/16	2 3/16	2 1/8	3 7/16	243.00
1 1/4	3/4	3 7/8	2 3/16	2 1/16	2 3/8	2 1/2	3 7/16	262.00
1 3/8	7/8	4 1/2	2	2 9/16	2 7/8	3 1/8	4 3/16	456.00
1 1/2	7/8	4 1/2	2	2 9/16	3	3 1/4	4 1/4	512.00

Noted:

Units: Dimensions in inches (in); Weight in pounds (Lbs)
