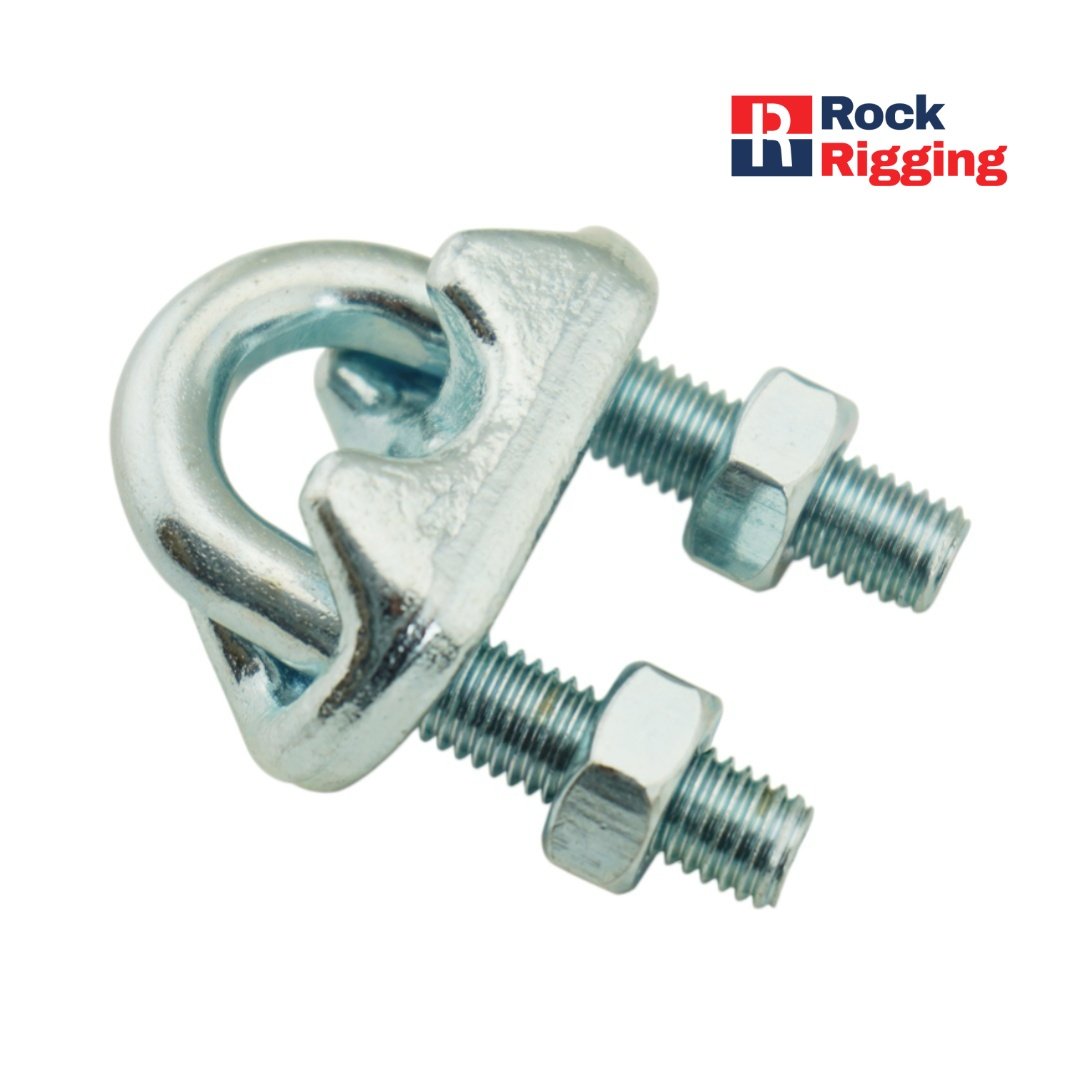

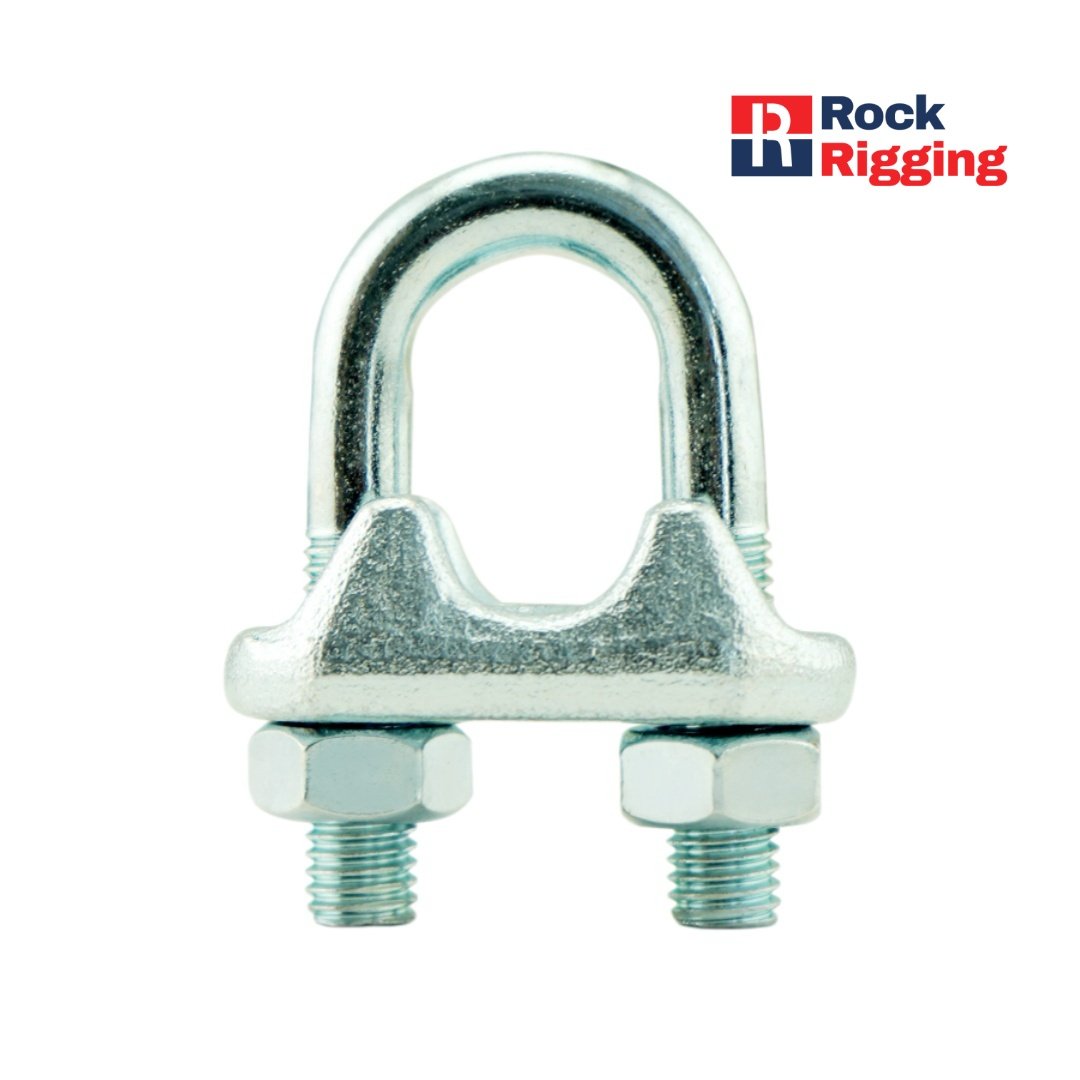

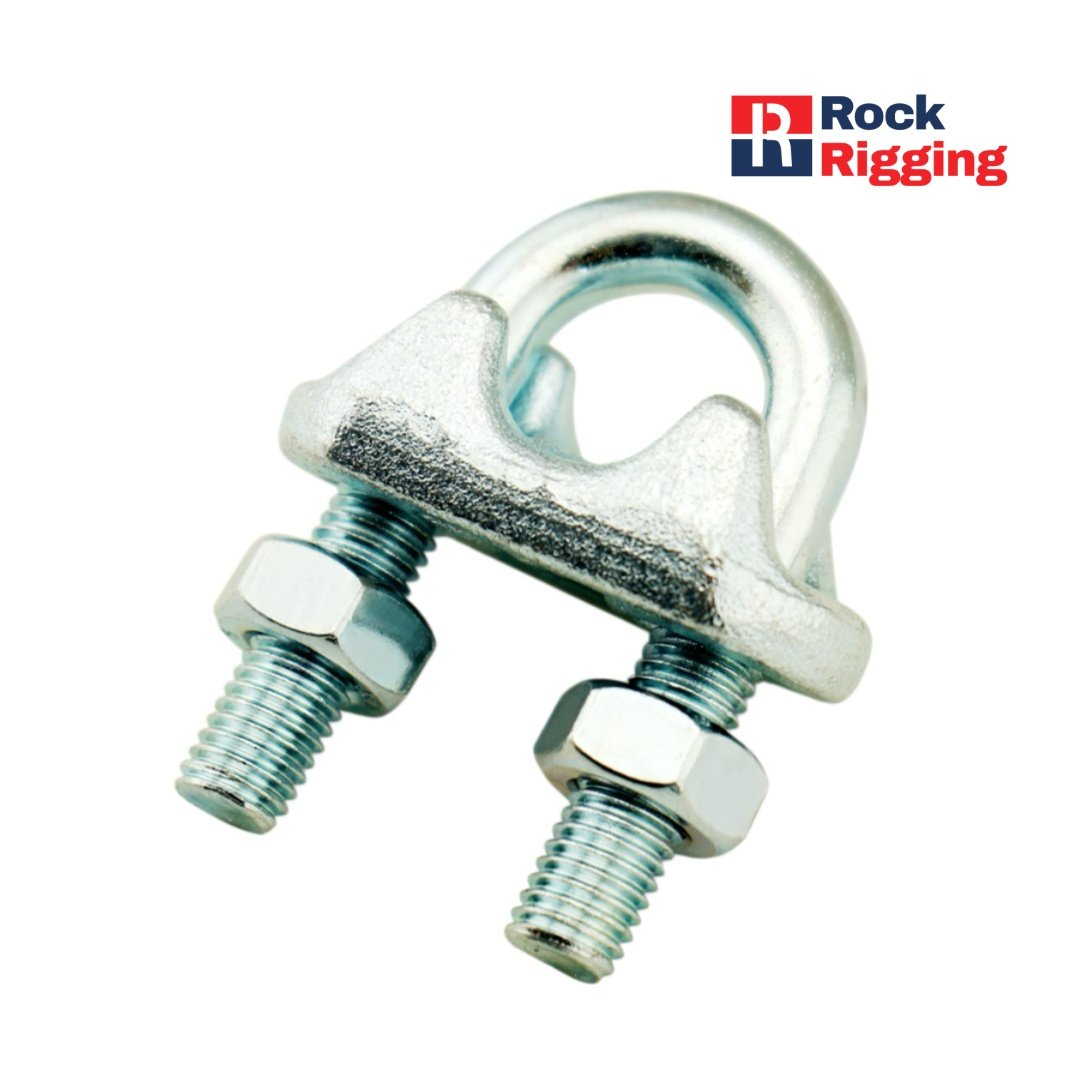

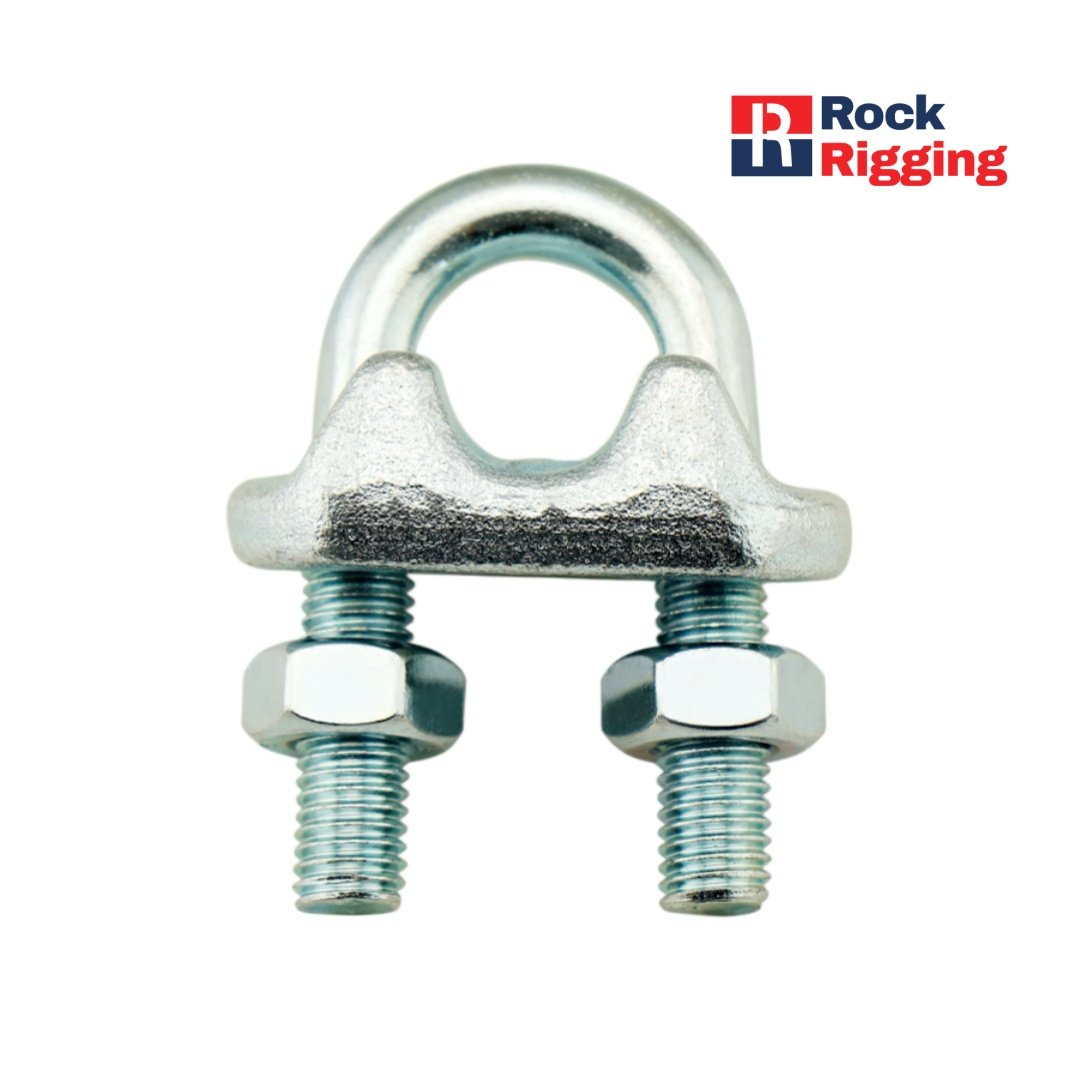

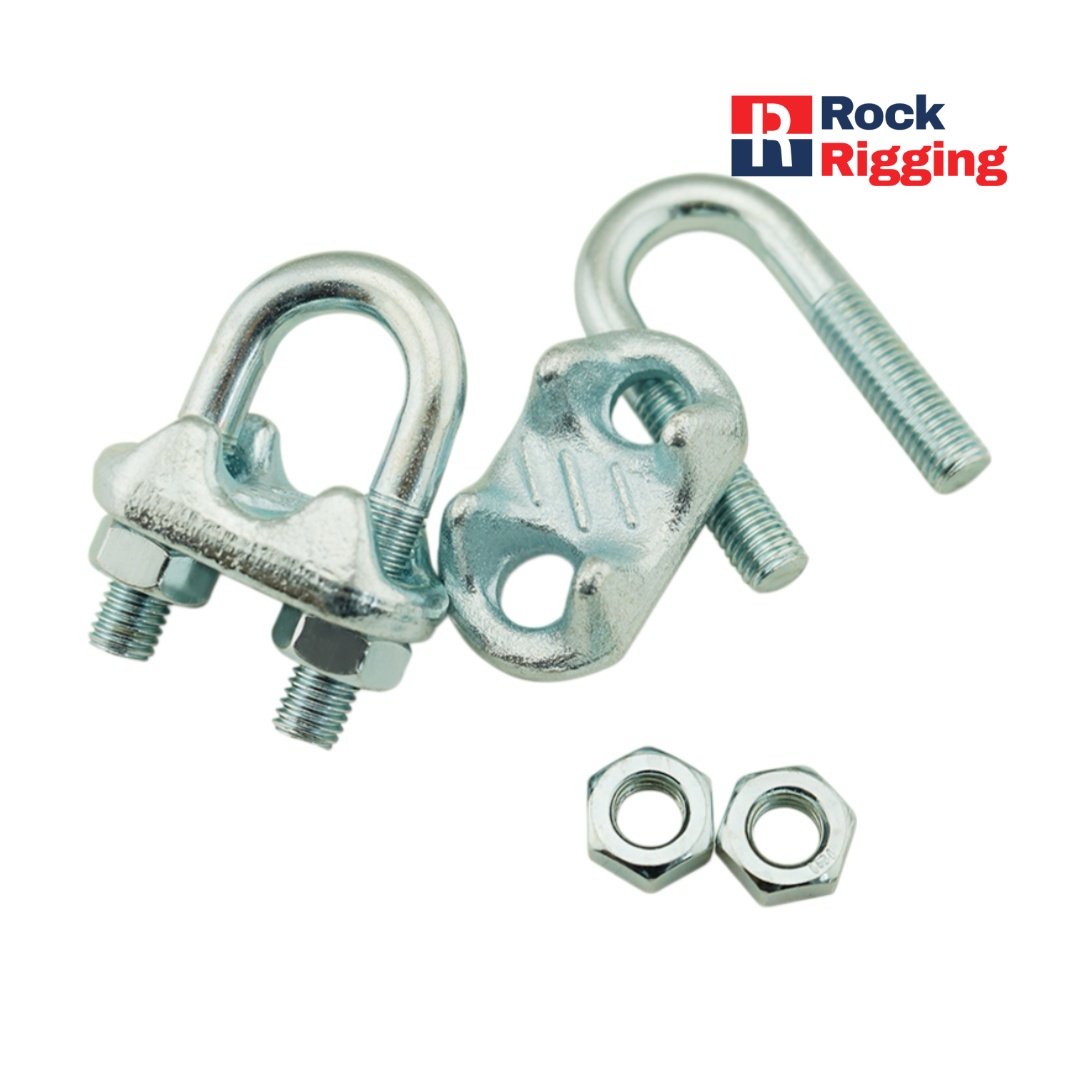

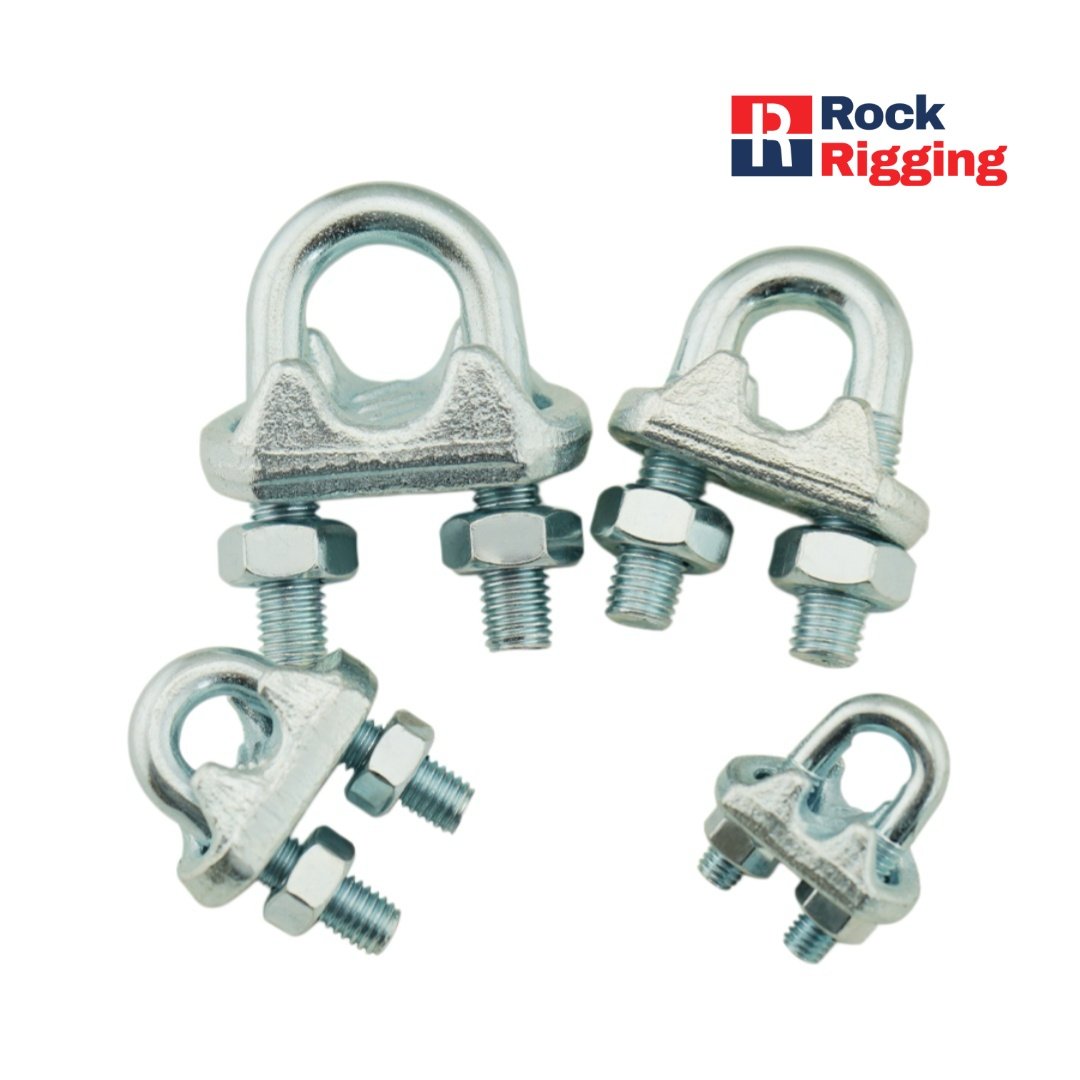

Italian Standard Malleable Wire Rope Clip #RRRC005

Features:

Material: Q235 Carbon Steel
Standard: Italian Standard
Technology: Drop Forged
Surface Finish: Zinc Plate
Main Use: Wire Rope Clips are used to secure and terminate wire rope ends in rigging, construction, marine, fencing, cable railing, and industrial applications.
WARNING: Do not exceed the Working load limit.

Wire Rope Termination – Secure and terminate wire rope ends.
Cable & Rope Connections – Create reliable connections in wire rope assemblies.
Rigging Applications – Used for general rigging, bracing, and support systems.
Fencing & Guardrails – Secure wire rope in fencing and railing systems.
Marine & Construction – Commonly used for marine rigging, construction, and structural applications.
Industrial Equipment – Suitable for cable securing and tensioning applications.

SKU： RRRC005 分类： Wire Rope Clips, Wire Rope Fittings 品牌： ROCK RIGGING

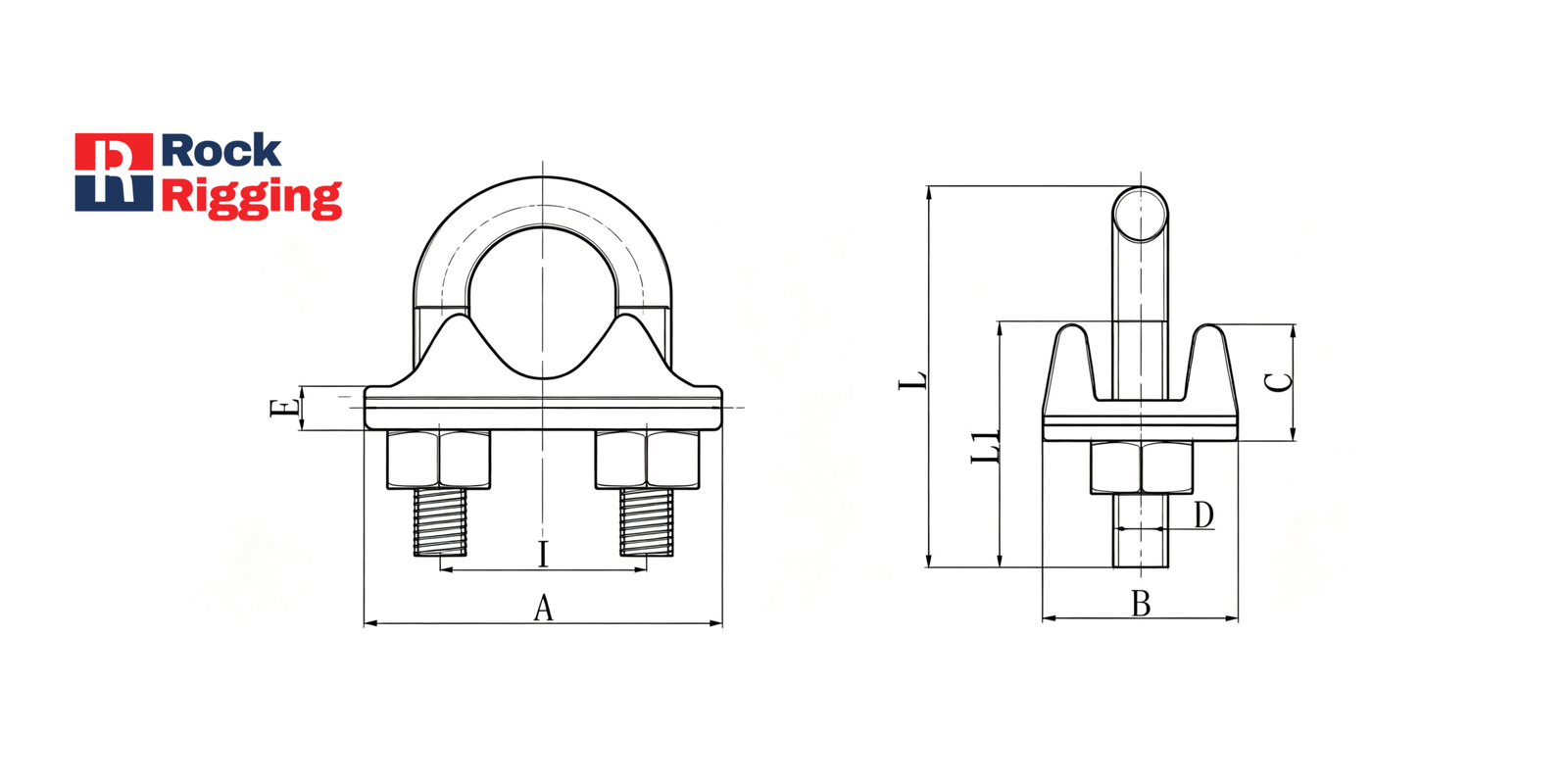

Size(mm)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	I(mm)	L(mm)	L1(mm)	Weight(kg)
3‑4	21.00	14.00	9.00	4.00	4.50	9.00	20.00	11.00	0.01
5	25.00	17.00	10.00	5.00	4.50	11.00	24.00	12.00	0.02
6	30.00	19.00	11.00	6.00	5.00	14.00	33.00	18.00	0.03
8	34.00	20.00	12.00	6.00	5.00	16.00	35.00	18.00	0.04
10	38.00	22.00	14.00	8.00	6.00	18.50	44.00	22.00	0.07
11	41.00	24.00	14.30	8.00	7.00	22.00	44.00	22.00	0.08
12	45.00	25.00	16.00	10.00	7.00	24.00	55.00	33.00	0.12
14	46.00	27.00	17.00	10.00	7.50	24.00	55.00	33.00	0.14
16	53.00	31.00	18.00	10.00	8.00	30.00	65.00	33.00	0.18
18	59.00	33.00	20.00	12.00	8.00	30.00	78.00	38.00	0.26
20	60.00	34.00	22.00	12.00	8.00	34.00	78.00	38.00	0.29
22	66.00	35.00	23.00	12.00	8.00	36.00	81.00	45.00	0.30
24‑25	70.00	40.00	24.00	12.00	9.00	39.00	86.00	45.00	0.38
26	72.00	40.00	26.50	14.00	12.00	42.00	95.00	50.00	0.43
28	80.00	43.00	30.00	14.00	12.00	43.00	110.00	55.00	0.56
30	80.00	44.00	33.00	14.00	10.00	47.00	110.00	50.00	0.706
32	92.00	45.00	34.00	16.00	14.00	49.00	115.00	60.00	0.91
34	90.00	48.00	37.00	16.00	11.00	53.00	120.00	55.00	0.98
38	95.00	51.00	39.00	16.00	16.00	57.00	130.00	63.00	1.03
40	100.00	55.00	40.00	16.00	14.00	59.00	140.00	60.00	1.27
45	116.00	60.00	47.00	16.00	17.00	70.00	158.00	83.00	1.45

Noted:

Units: Dimensions in millimeters (mm); Weight in kilograms (Kg)
