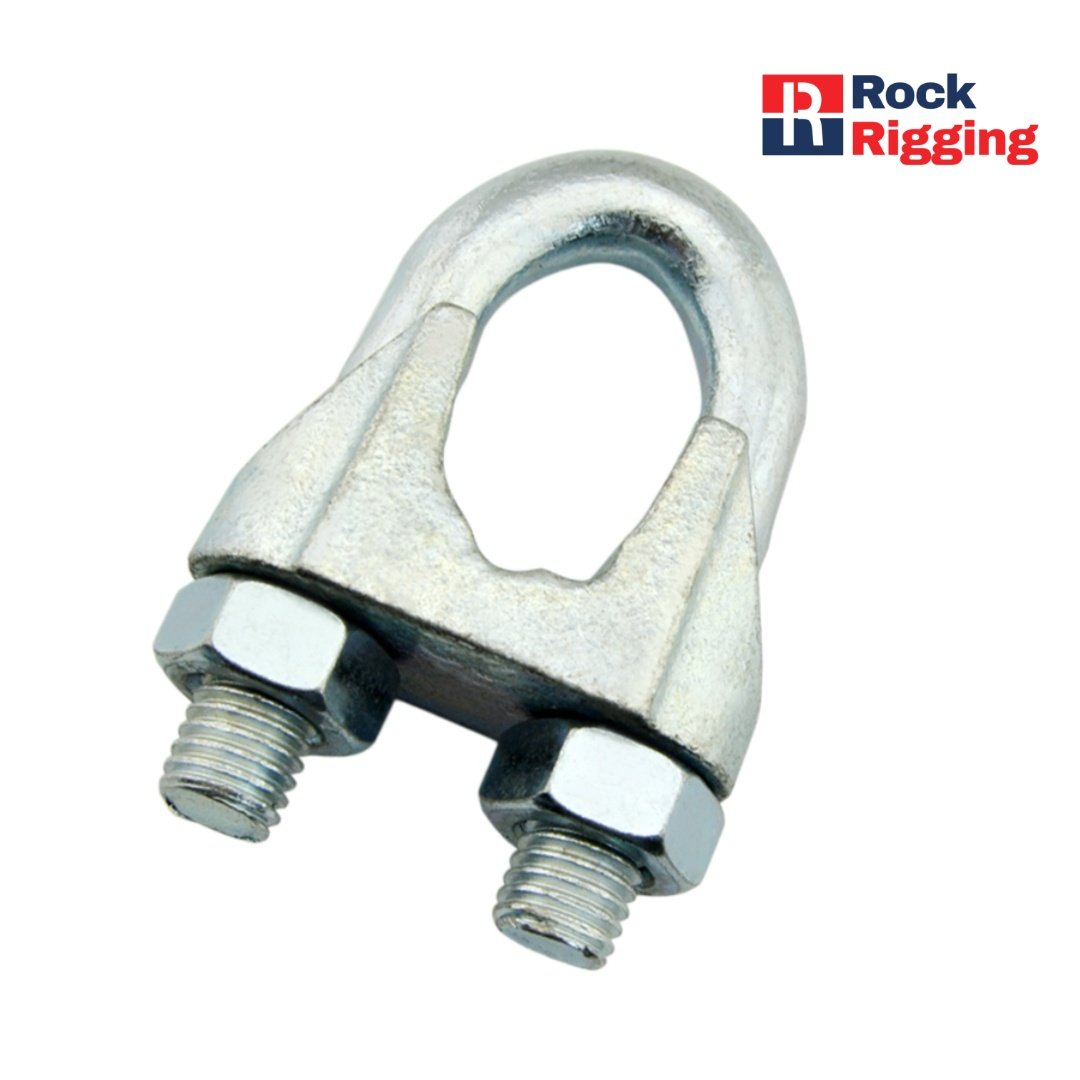

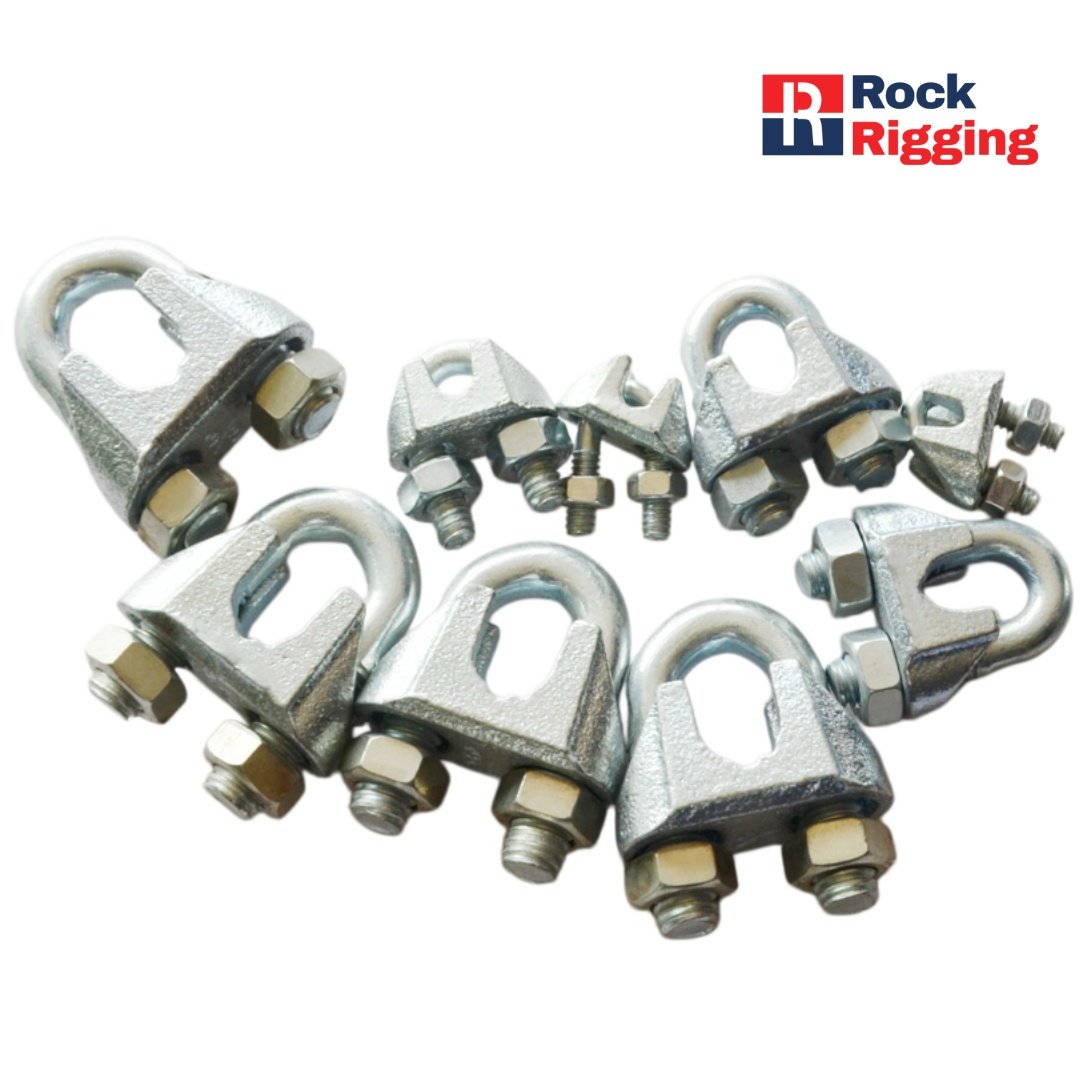

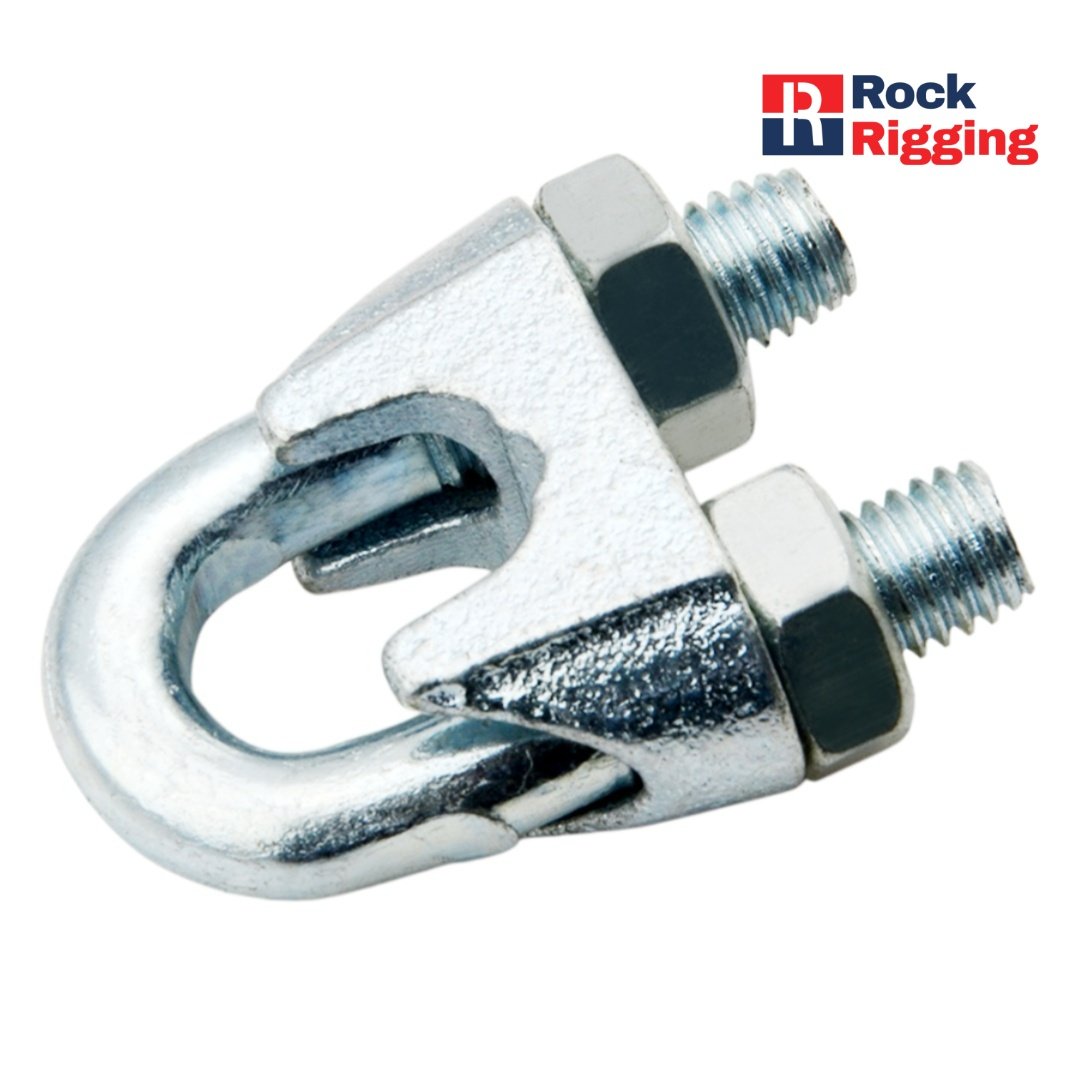

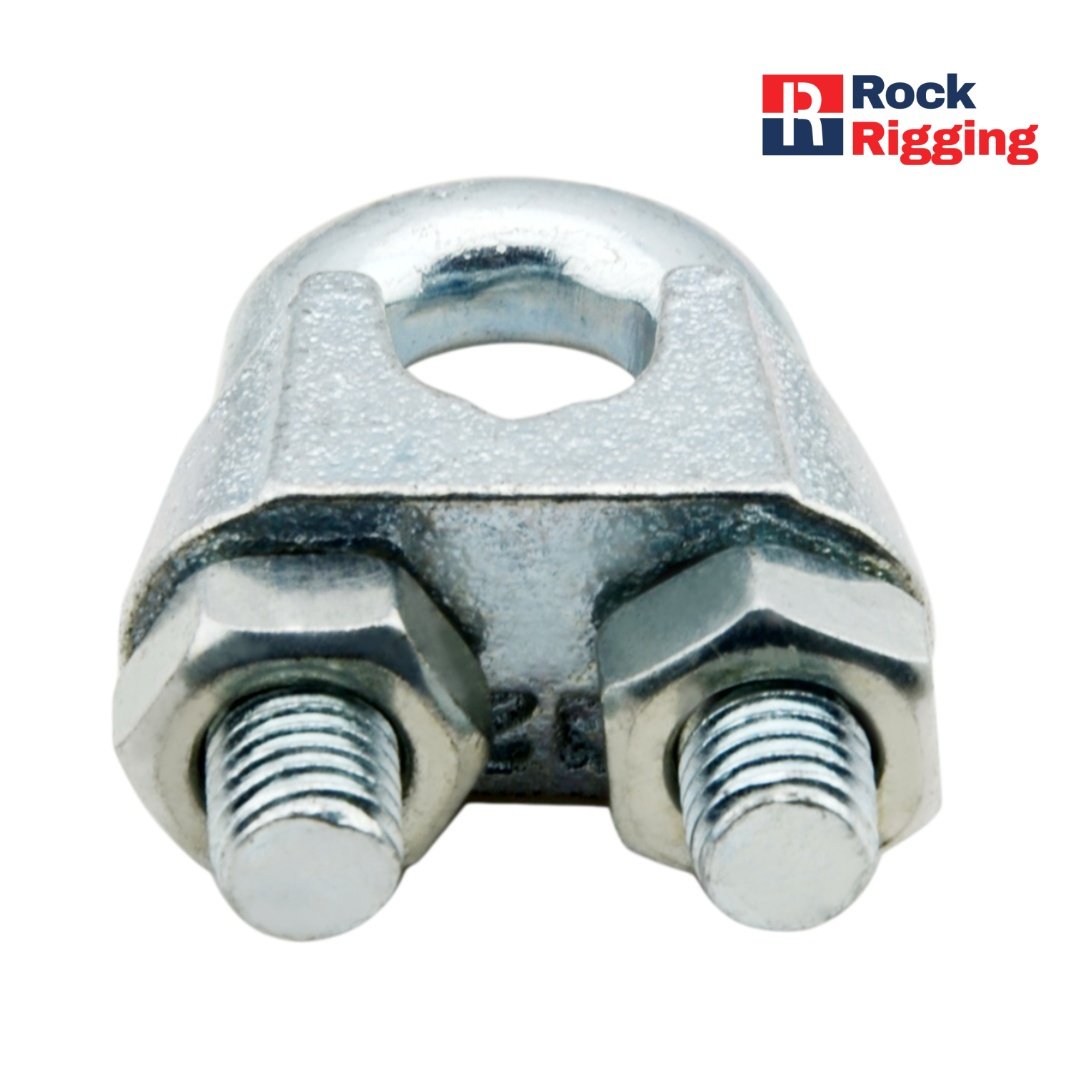

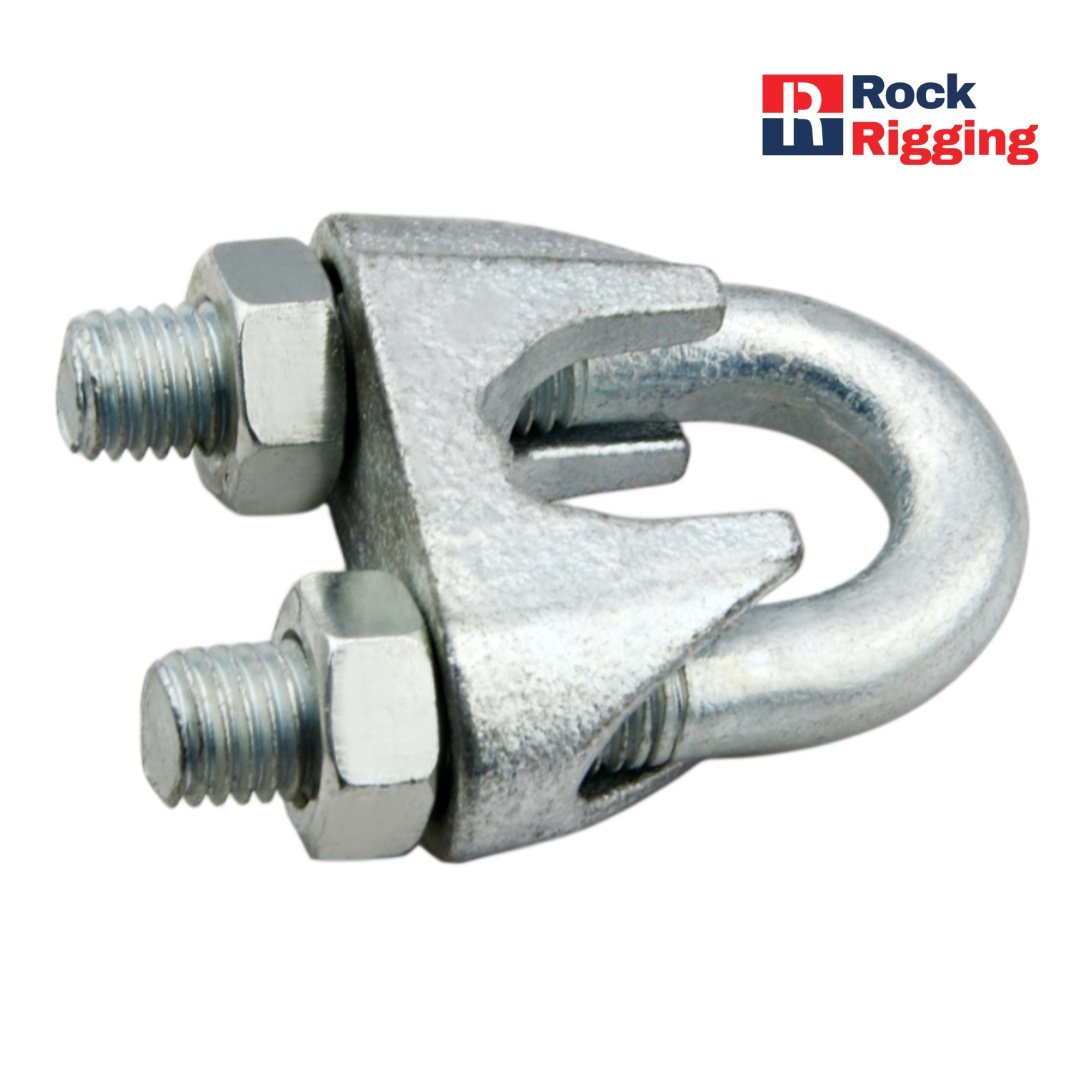

Germany Standard DIN741 Malleable Wire Rope Clip #RRRC003

Low MOQ: Small trial orders are welcome.
Fast Lead Time: Quick production &amp; delivery.
OEM &amp; Customization: Logo, packaging, and special sizes available.
Strict Quality Control: 100% inspection before shipment
Global Export Experience: Serving 30+ countries
24H Quick Response: Professional sales support.

Features:

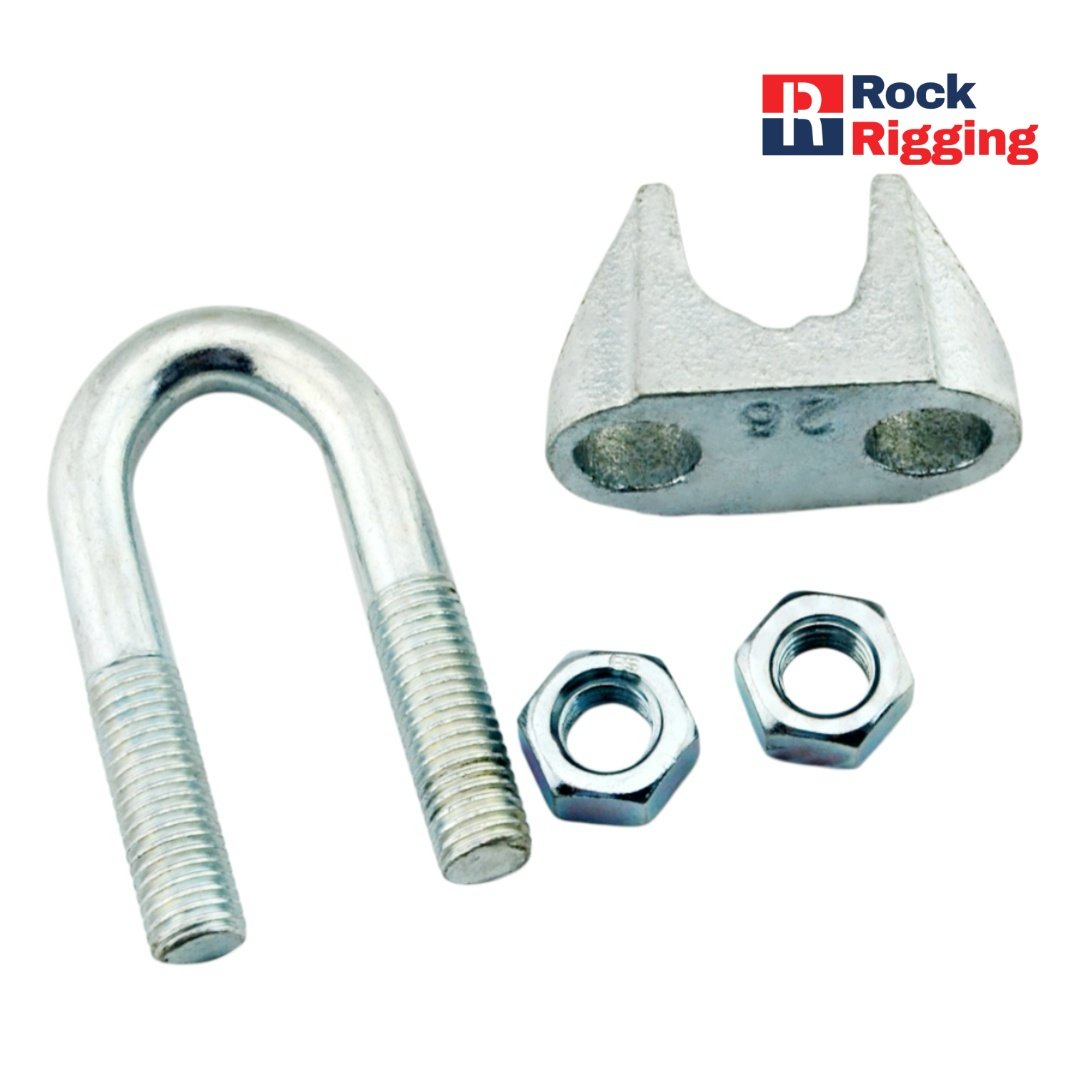

Material: Body: Malleable Steel;U Bolt: Q235 Carbon Steel
Standard: DIN Standard
Technology: Casting
Surface Finish: Zinc Plate
Main Use: Wire Rope Clips are used to secure and terminate wire rope ends in rigging, construction, marine, fencing, cable railing, and industrial applications.
WARNING: Do not exceed the Working load limit.

Wire Rope Termination – Secure and terminate wire rope ends.
Cable & Rope Connections – Create reliable connections in wire rope assemblies.
Rigging Applications – Used for general rigging, bracing, and support systems.
Fencing & Guardrails – Secure wire rope in fencing and railing systems.
Marine & Construction – Commonly used for marine rigging, construction, and structural applications.
Industrial Equipment – Suitable for cable securing and tensioning applications.

SKU： RRRC003 分类： Wire Rope Clips, Wire Rope Fittings 品牌： ROCK RIGGING

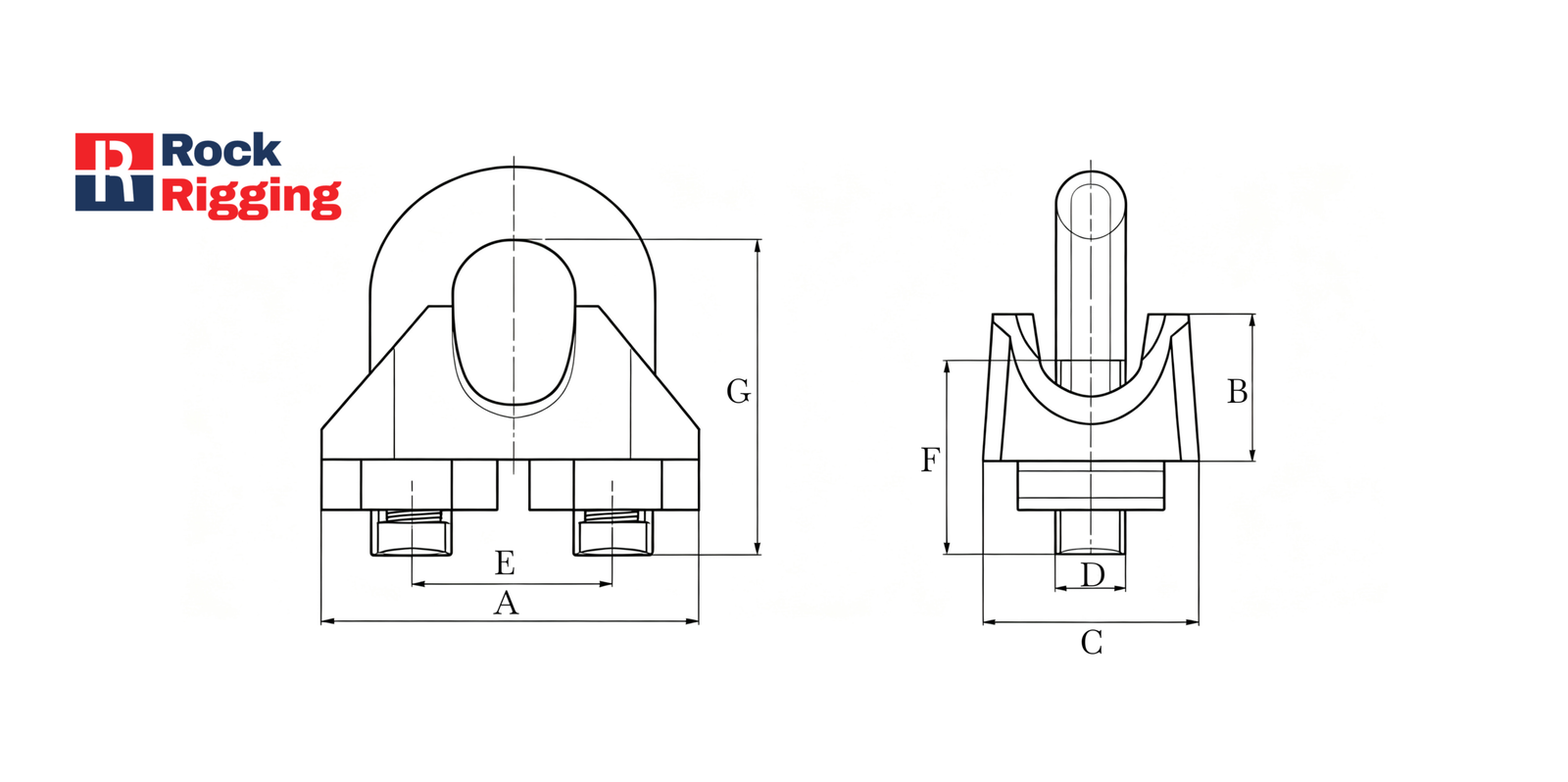

Size (mm)	A	B	C	D	E	F	G	Weight (kg)/100pcs
3	21	10	10	4	9	12	16.60	1.40
5	23	10	11	5	11	13	19.65	1.50
6.5	26	11	12	5	13	15	23.65	2.10
8	30	15	14	6	16	19	28.85	4.10
10	34	17	18	8	19	22	35.00	6.80
11	36	18	19	8	20	22	37.00	7.20
13	40	21	23	10	24	30	46.24	13.00
14	44	22	23	10	25	30	48.24	13.50
16	50	26	26	12	29	33	52.50	21.00
19	54	30	29	12	32	38	64.50	28.00
22	61	34	33	14	37	44	72.50	40.00
26	65	37	35	14	41	45	82.50	44.00
30	74	43	37	16	48	50	95.60	66.00
34	80	50	42	16	52	55	105.60	85.00
40	88	55	45	16	58	60	125.60	104.00

Noted:

Units: Dimensions in millimeters (mm); Weight in kilograms (Kg)
