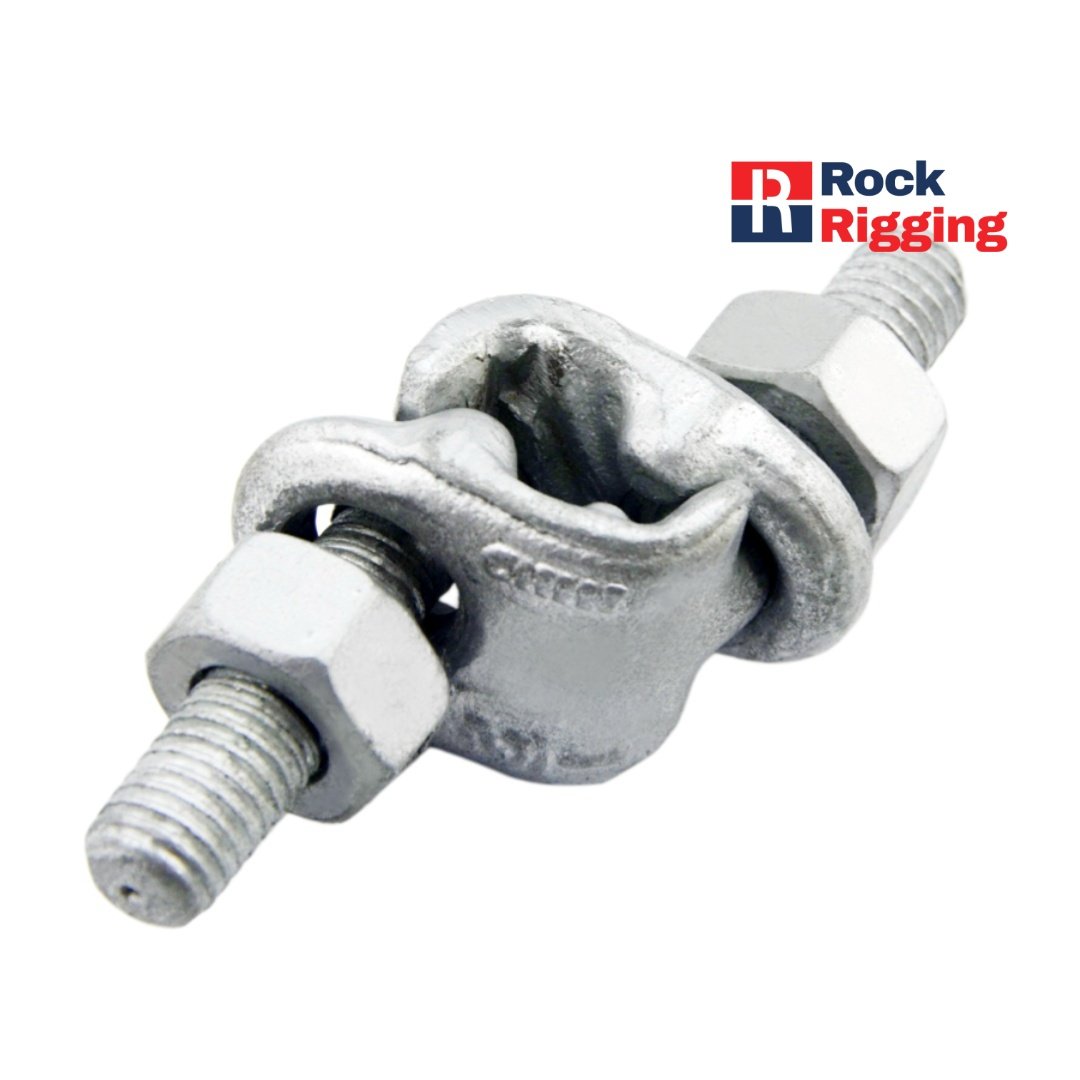

US Standard Hot Dip Galvanized Wire Rope Fist Grip Clip #RRRC007

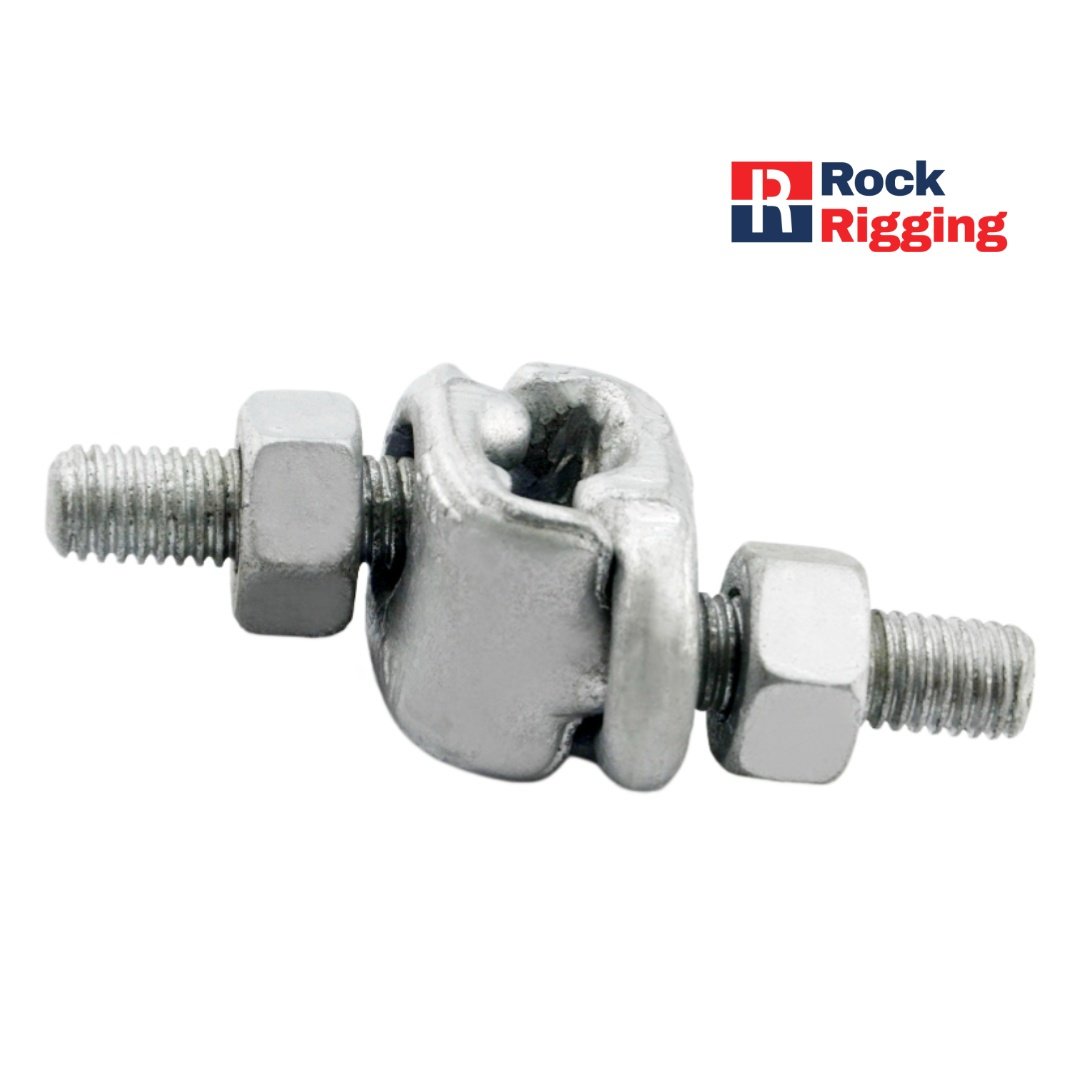

US Standard Hot Dip Galvanized Wire Rope Fist Grip Clip #RRRC007 - 图片 2

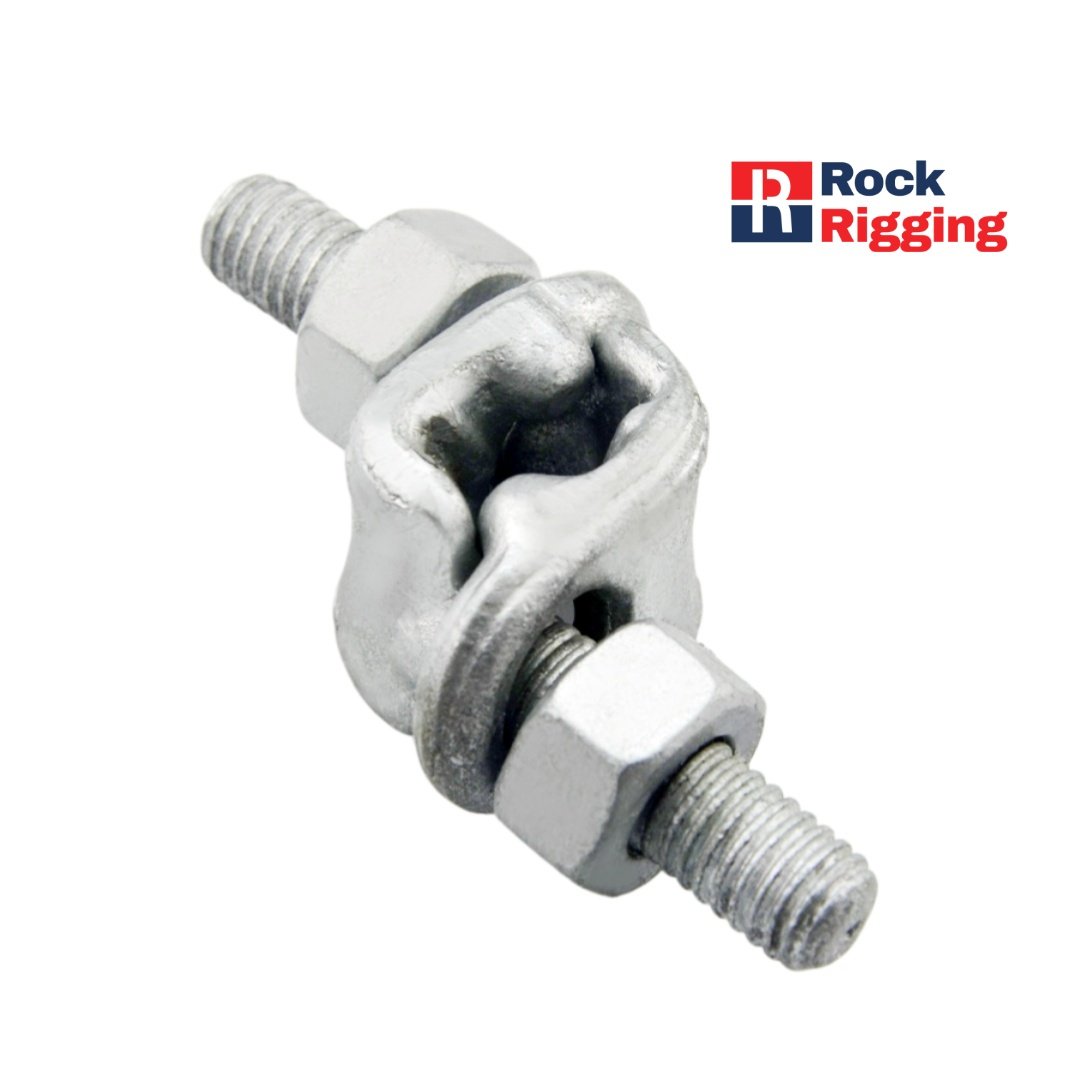

US Standard Hot Dip Galvanized Wire Rope Fist Grip Clip #RRRC007 - 图片 3

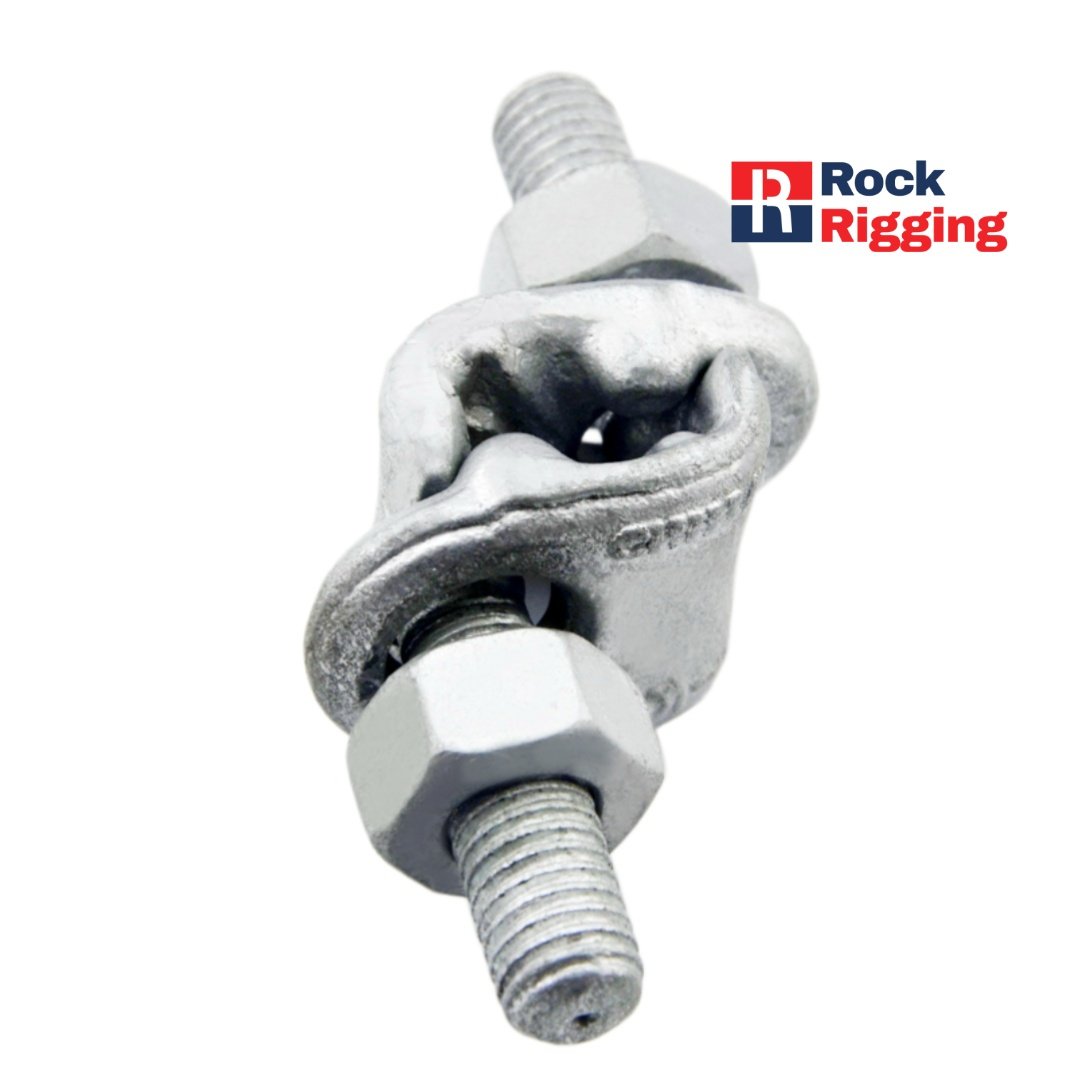

US Standard Hot Dip Galvanized Wire Rope Fist Grip Clip #RRRC007 - 图片 4

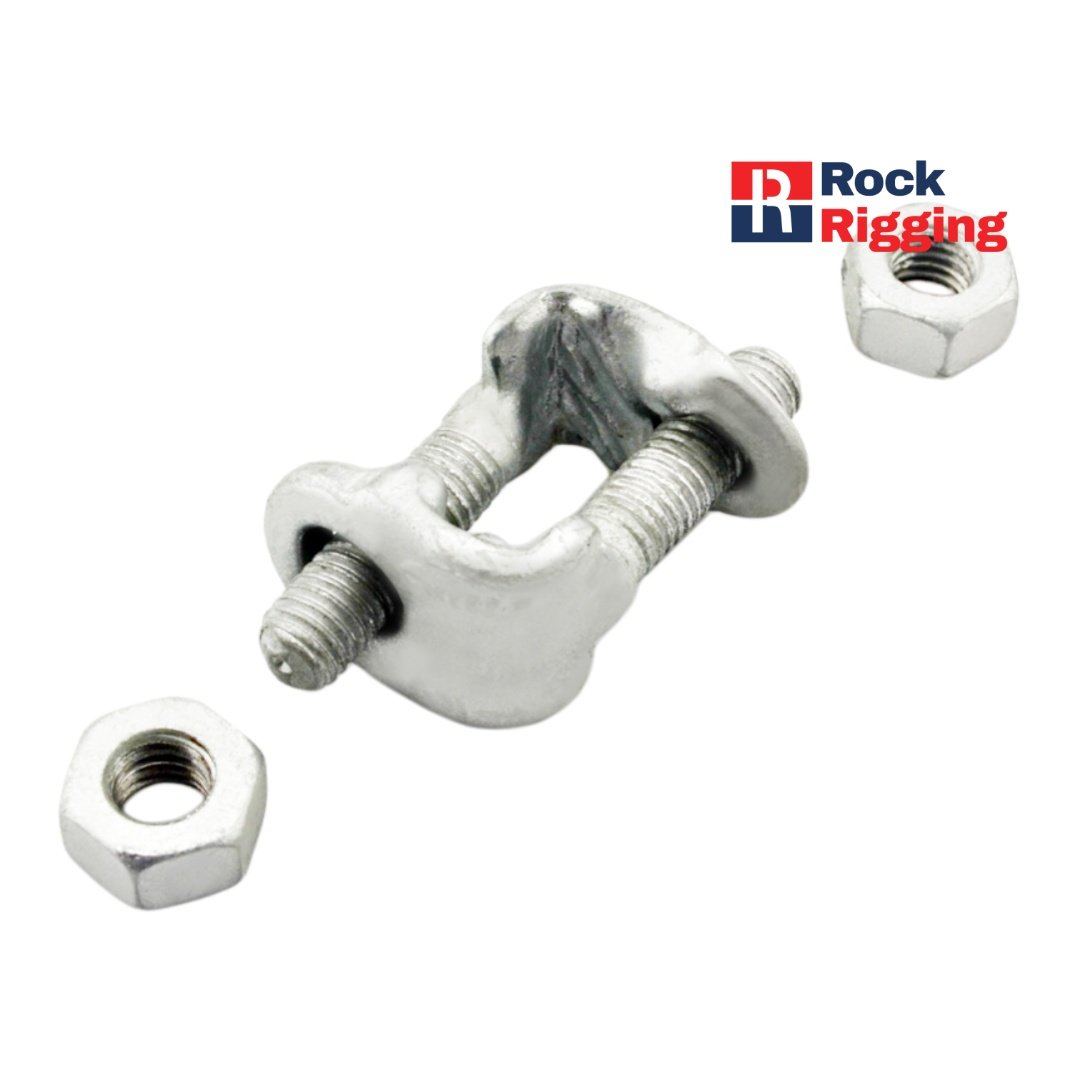

US Standard Hot Dip Galvanized Wire Rope Fist Grip Clip #RRRC007 - 图片 5
,

US Standard Hot Dip Galvanized Wire Rope Fist Grip Clip #RRRC007

Features:

  • Material: Body: Low Carbon Steel
  • Standard: US Standard
  • Technology: Drop Forged
  • Surface Finish: Hot Dip Galvanized/Zinc Plate
  • Main Use: Wire Rope Clips are used to secure and terminate wire rope ends in rigging, construction, marine, fencing, cable railing, and industrial applications.
  • WARNING: Do not exceed the Working load limit.

Main Applications:

  • Wire Rope Termination – Secure and terminate wire rope ends.
  • Cable & Rope Connections – Create reliable connections in wire rope assemblies.
  • Rigging Applications – Used for general rigging, bracing, and support systems.
  • Fencing & Guardrails – Secure wire rope in fencing and railing systems.
  • Marine & Construction – Commonly used for marine rigging, construction, and structural applications.
  • Industrial Equipment – Suitable for cable securing and tensioning applications.

Partner with Rock Rigging:

  • Low MOQ: Small trial orders are welcome.
  • Fast Lead Time: Quick production & delivery.
  • OEM & Customization: Logo, packaging, and special sizes available.
  • Strict Quality Control: 100% inspection before shipment
  • Global Export Experience: Serving 30+ countries
  • 24H Quick Response: Professional sales support.
用于产品页面
SKU： RRRC007 分类： , 品牌：

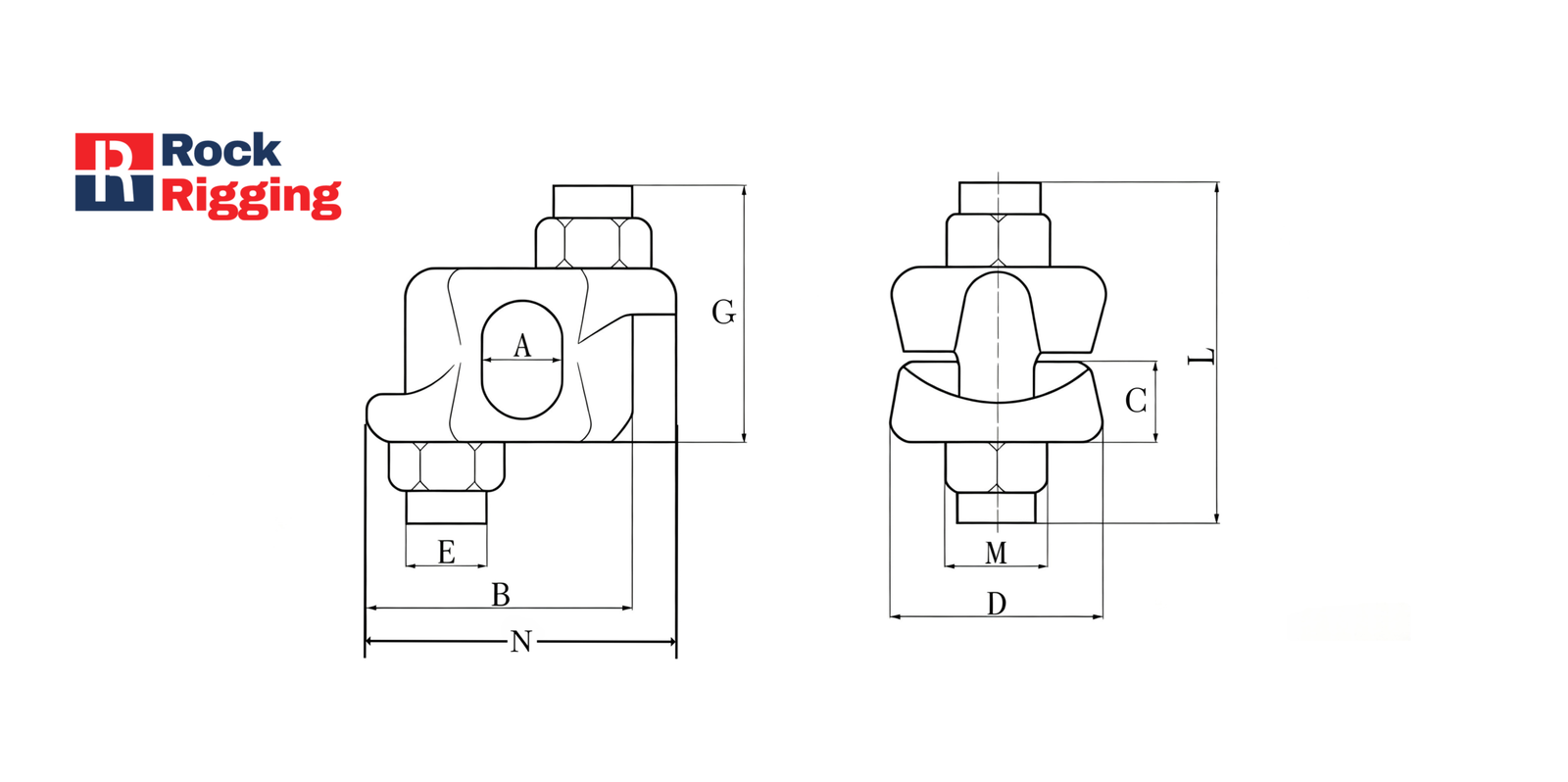

Size(in) A B C D E G Approx L M N Weight (lbs)/100pcs
3/16-1/4 0.25 1.25 0.34 0.94 0.38 1.28 1.36 0.69 1.47 18
5/16 0.31 1.34 0.44 1.06 0.38 1.47 1.94 0.69 1.56 28
3/8 0.38 1.59 0.50 1.06 0.44 1.81 2.38 0.75 1.88 40
7/16-1/2 0.50 1.88 0.56 1.25 0.50 2.19 2.75 0.88 2.19 70
9/16-5/8 0.63 2.28 0.69 1.50 0.63 2.69 3.50 1.06 2.63 100
3/4 0.75 2.69 0.88 1.81 0.75 2.94 3.75 1.25 3.06 175
7/8 0.88 2.97 0.97 2.13 0.75 3.31 4.13 1.25 3.14 225
1 1.00 3.06 1.19 2.25 0.75 3.72 4.63 1.25 3.53 300
1-1/8 1.13 3.44 1.28 2.38 0.88 4.19 5.25 1.44 3.91 400
1-1/4 1.25 3.56 1.34 2.50 0.88 4.25 5.25 1.44 4.03 400
1-3/8-1-1/2 1.50 4.13 1.50 3.00 1.00 5.56 7.00 1.63 4.66 700

Noted:

Units: Dimensions in Inch (in);  Weight in pounds (Lbs)
