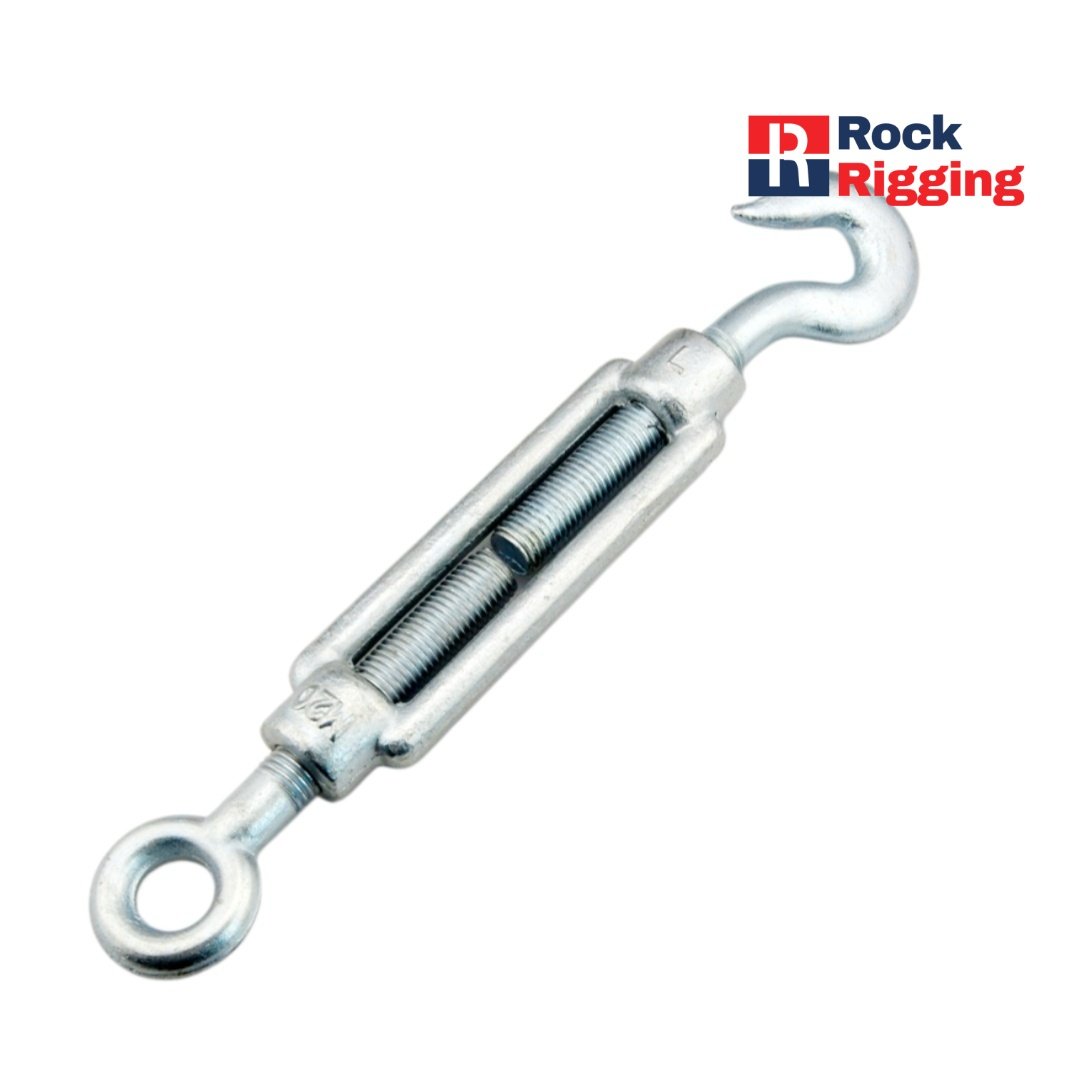

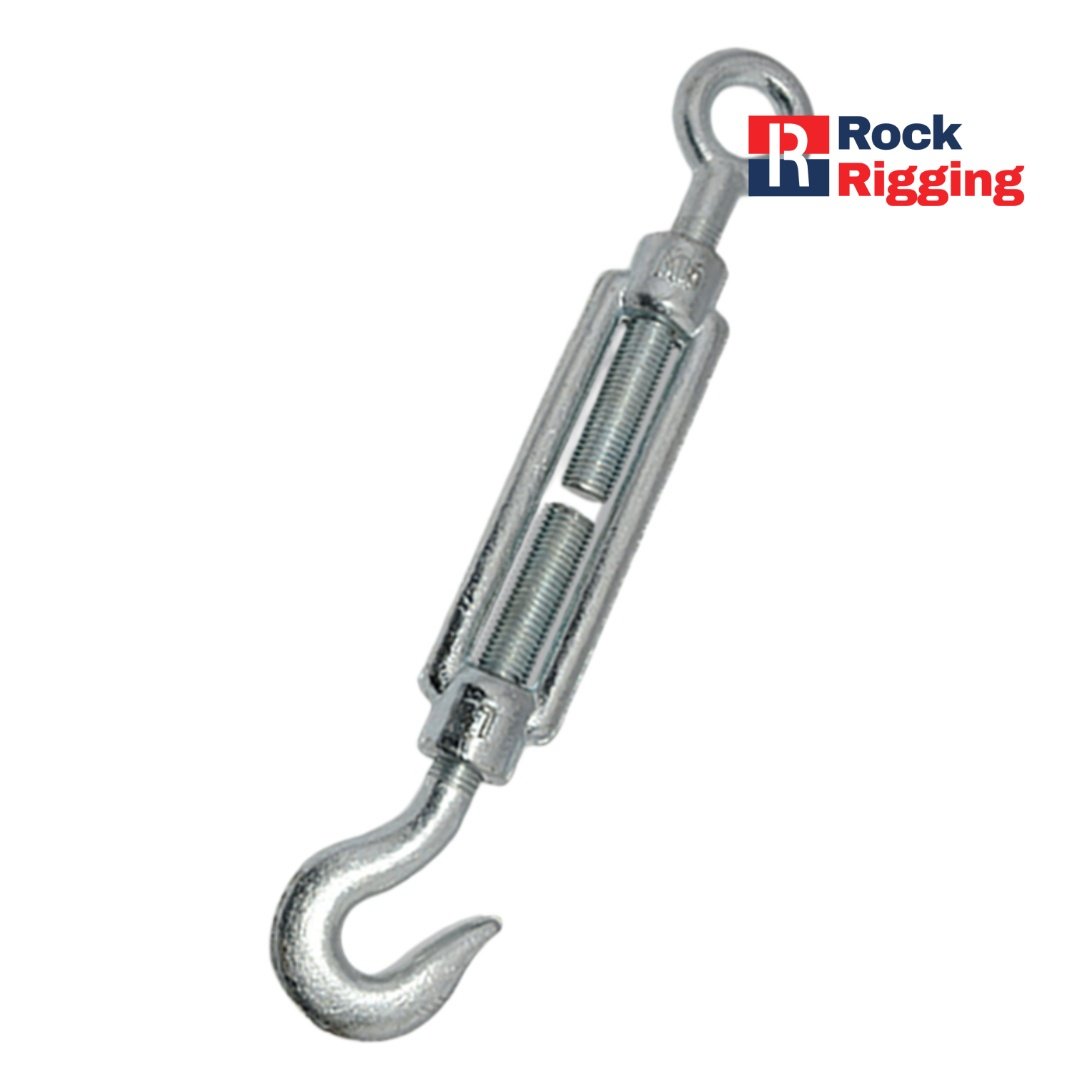

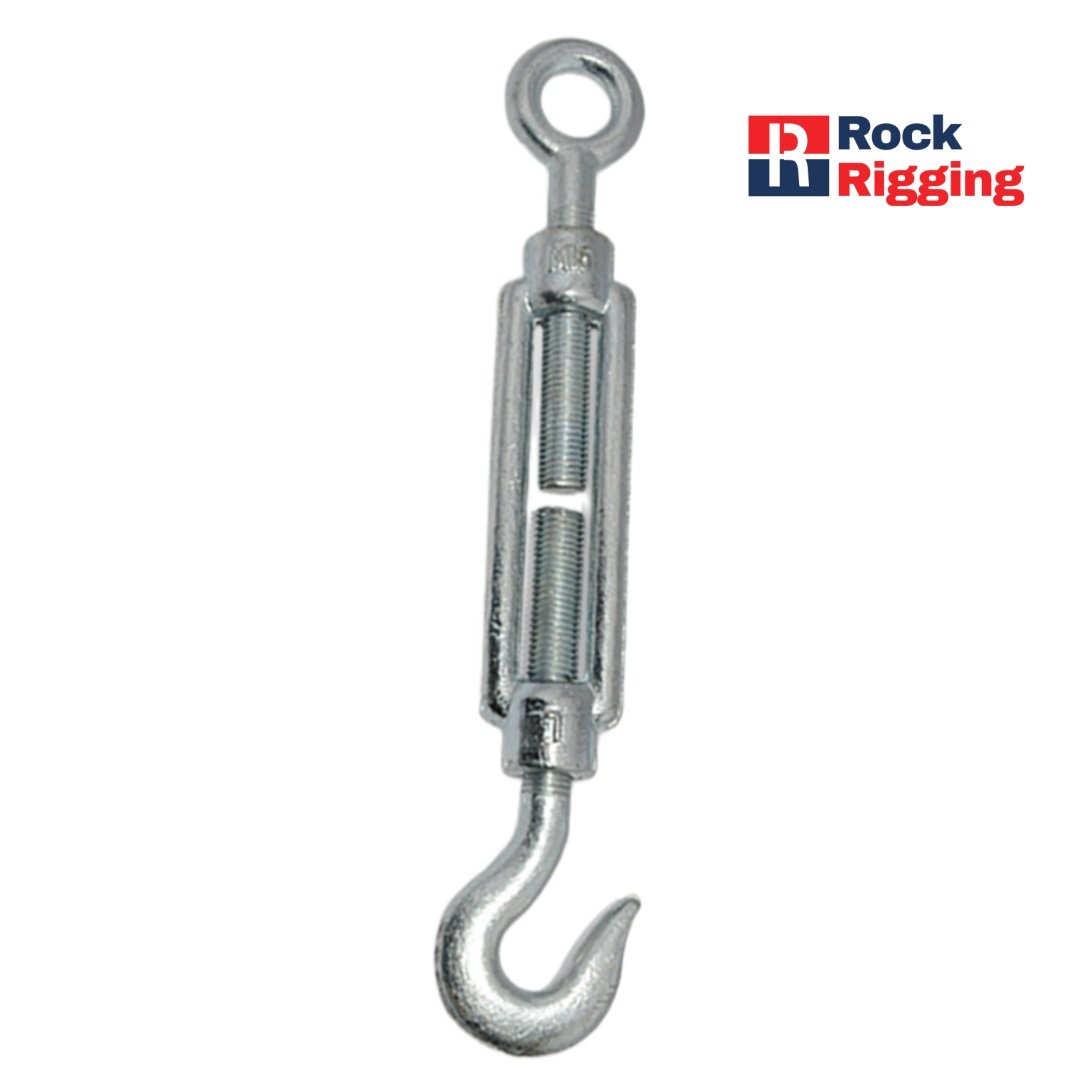

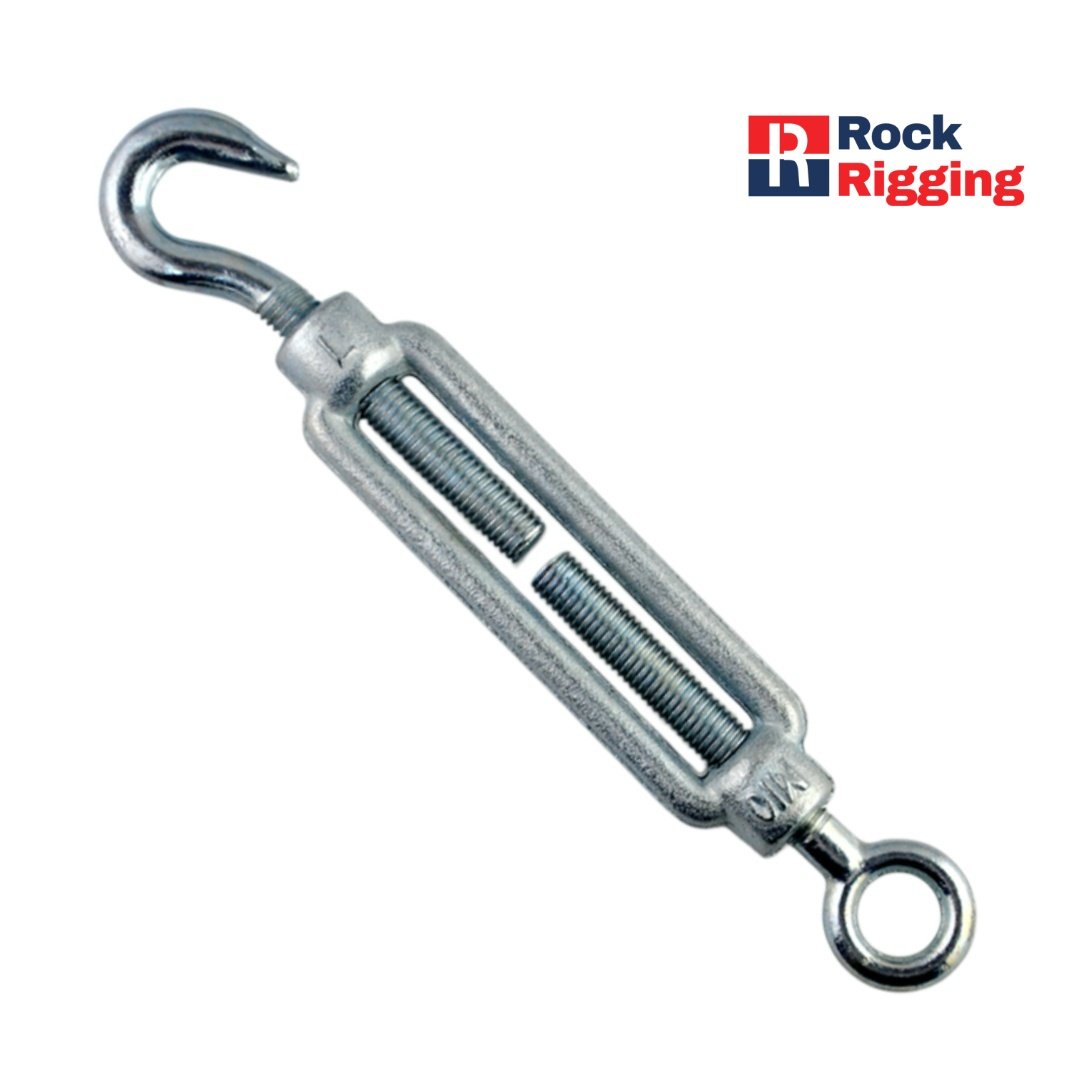

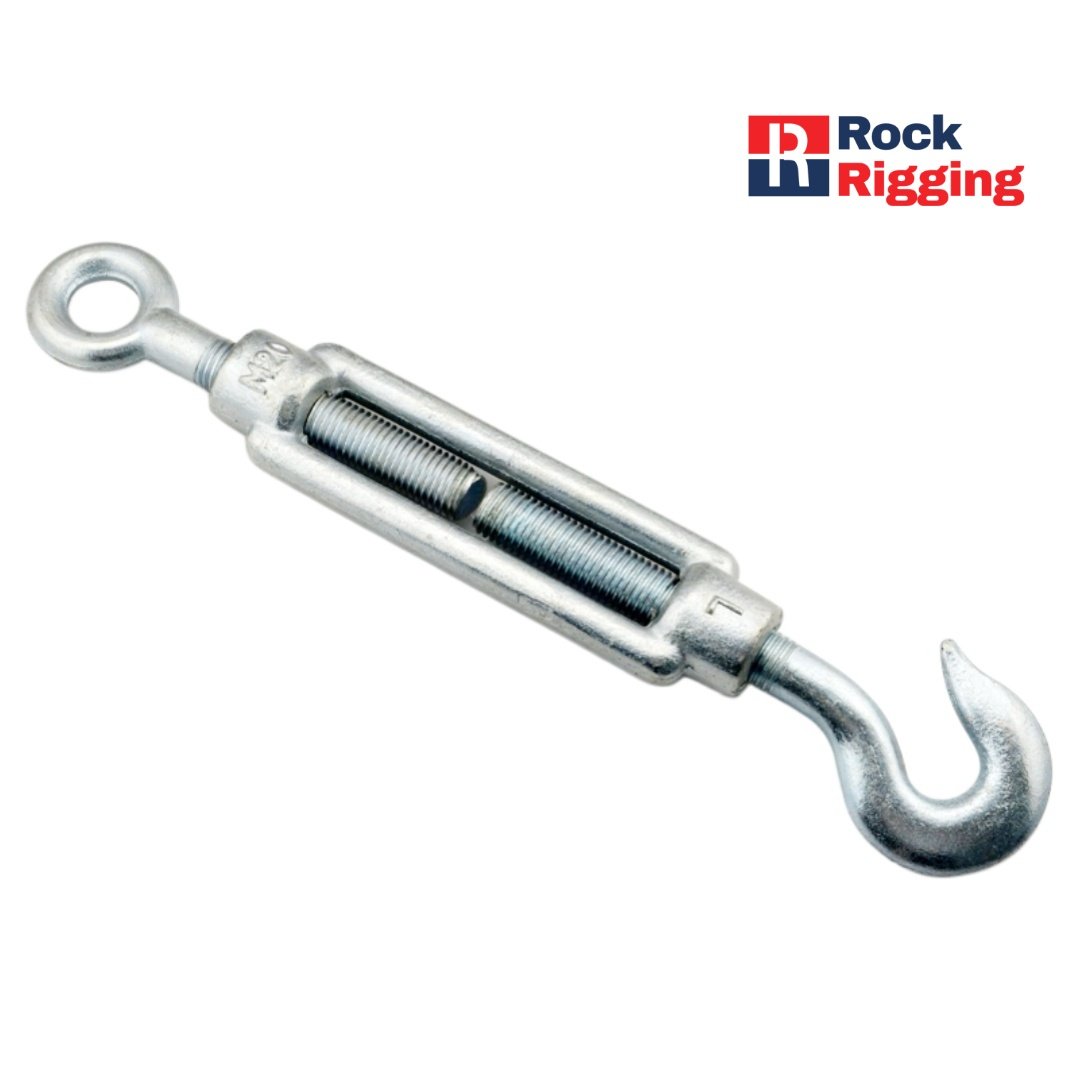

DIN1840 Electro Galvanized Turnbuckle with Hook & Eye (OC Style) #RRTB006

Low MOQ: Small trial orders are welcome.
Fast Lead Time: Quick production &amp; delivery.
OEM &amp; Customization: Logo, packaging, and special sizes available.
Strict Quality Control: 100% inspection before shipment
Global Export Experience: Serving 30+ countries
24H Quick Response: Professional sales support.

Features:

Wire Rope Tensioning – Adjust and maintain proper tension in wire rope systems.
Fencing & Cable Railing – Keep cables tight and stable.
Construction & Structural Support – Provide tension and stabilization for structural cables.
Marine & Boat Rigging – Tension cables and rigging components.
Agricultural & Greenhouse Structures – Secure and tension support wires.
General Rigging Applications – Used for cable adjustment, bracing, and stabilization.

SKU： RRTB006 分类： Turnbuckles 品牌： ROCK RIGGING

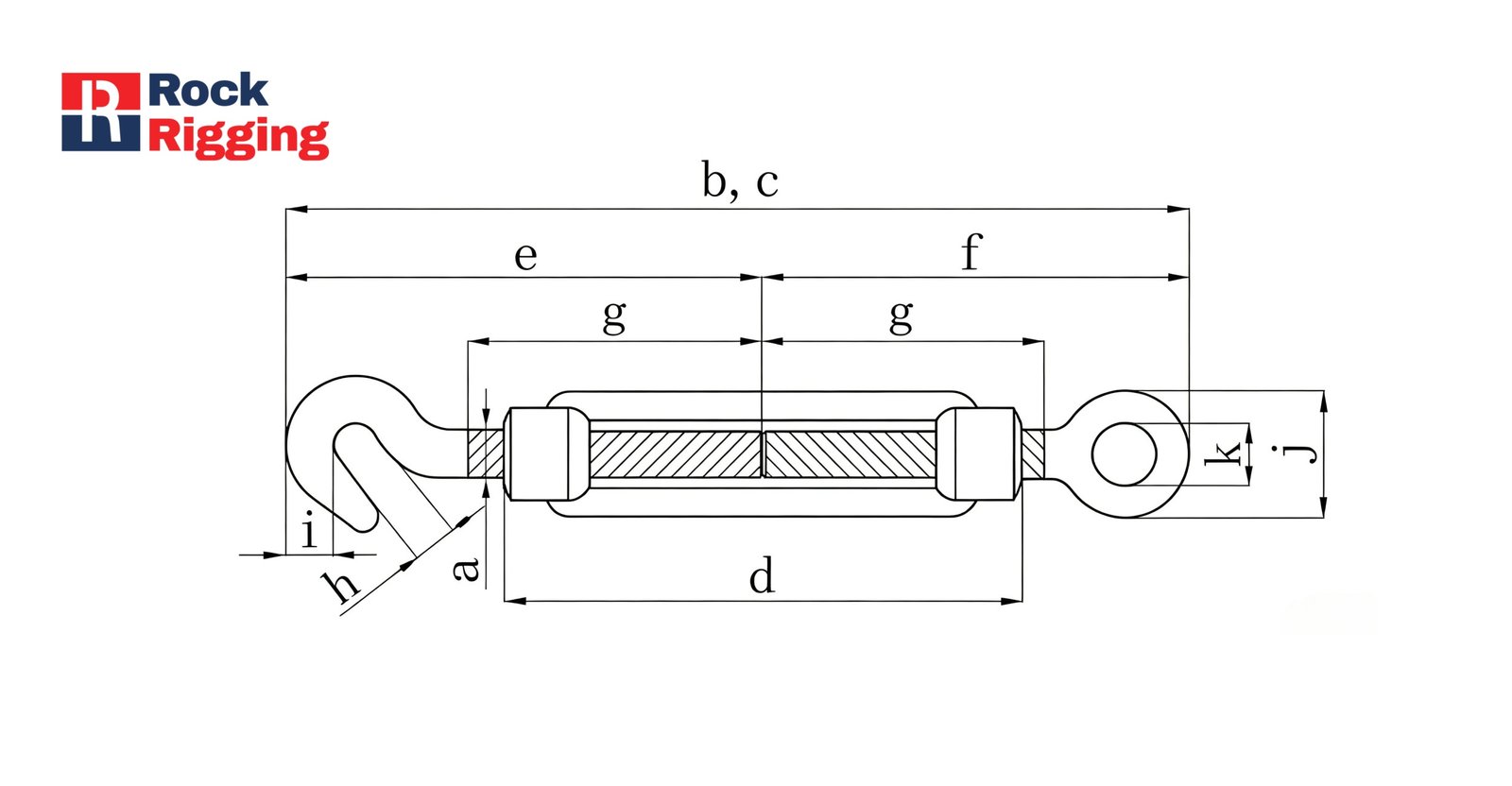

Size(a)(mm)	b	c	d	e	f	g	h	i	j	k	Weight(kg)
M5	125	180	70	56	57	35	7	12	16	8	0.07
M6	172	258	110	77	80	55	8	15	20	9	0.11
M8	184	264	110	85	84	57	10.5	15	22	10	0.20
M10	222	311	125	106	105	68	13	11	31	14	0.28
M12	241	324	125	117	111	70	16	13	35	16	0.43
M14	261	351	140	124	122	75	18	15	40	18	0.61
M16	311	427	170	144	150	88	20	17	47	22	1.00
M20	358	490	200	170	167	105	21	21	52	24	1.60
M22	414	559	220	200	186	118	24	28	60	27	2.20
M24	453	630	255	215	205	135	26	33	65	27	2.80
M30	495	660	255	240	220	135	34	35	71	31	4.10
M33	545	744	295	260	245	148	38	40	88	36	6.00
M36	597	782	295	275	277	158	46	45	94	38	8.40

Noted:

Units: Dimensions in inches (mm); weight in pounds (Kg)
