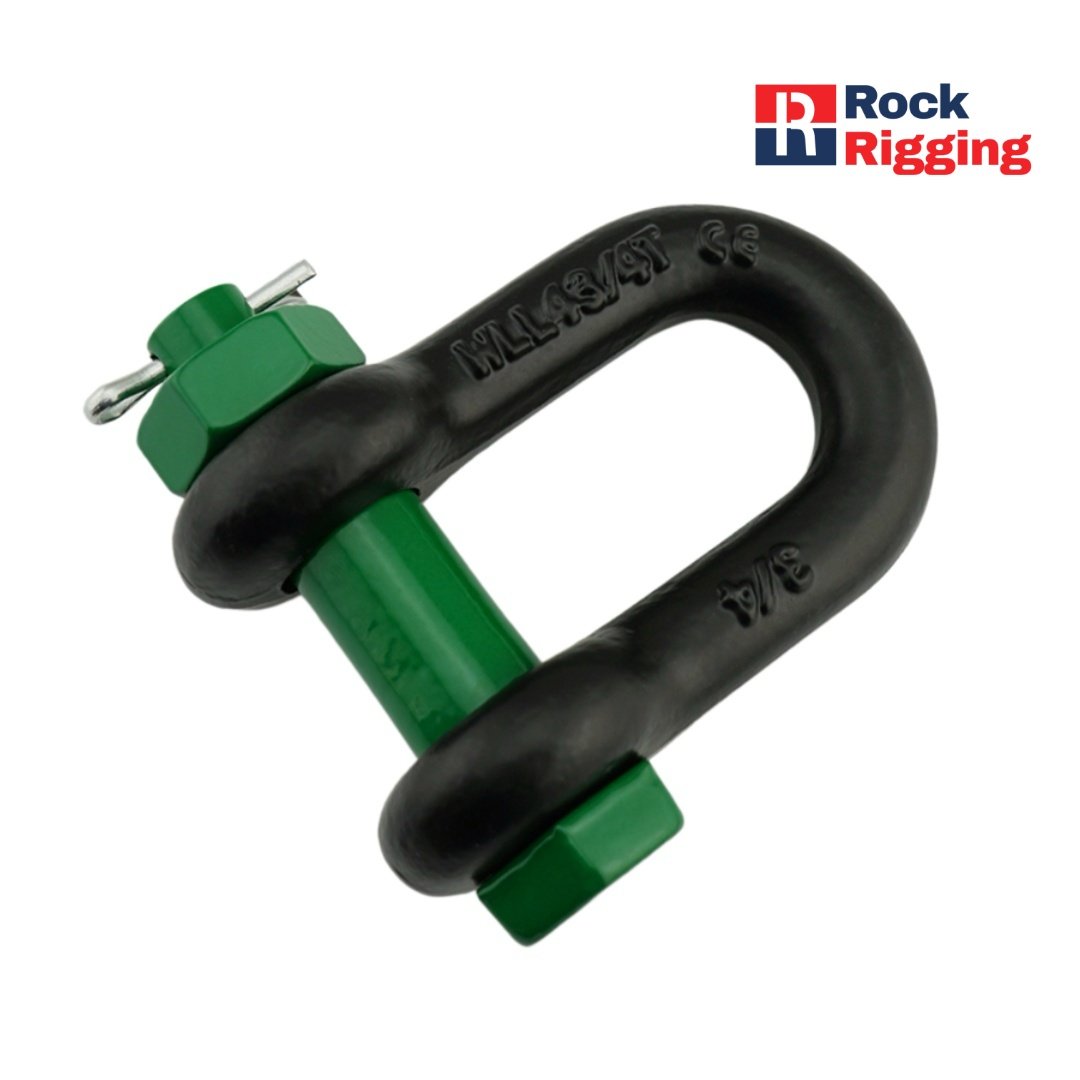

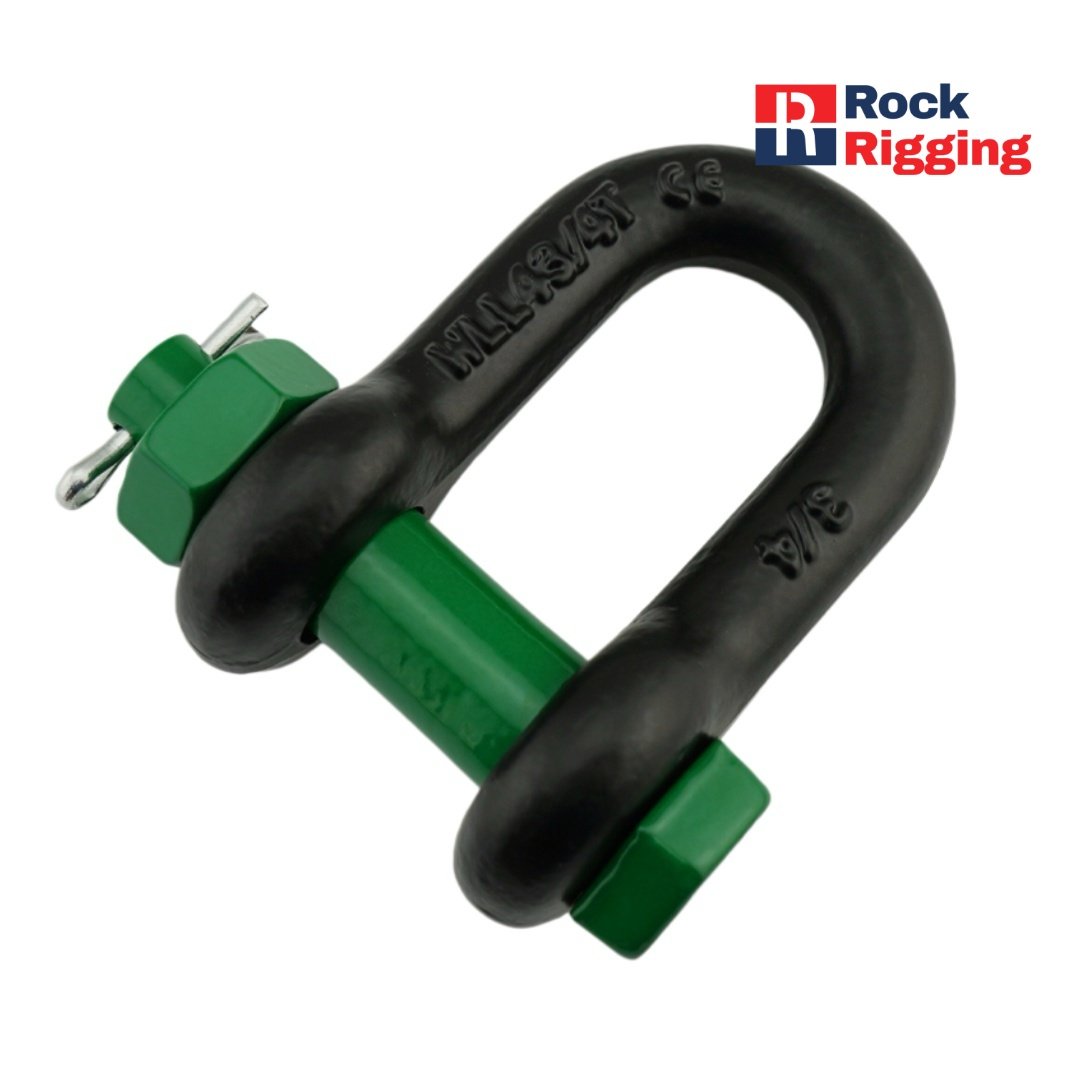

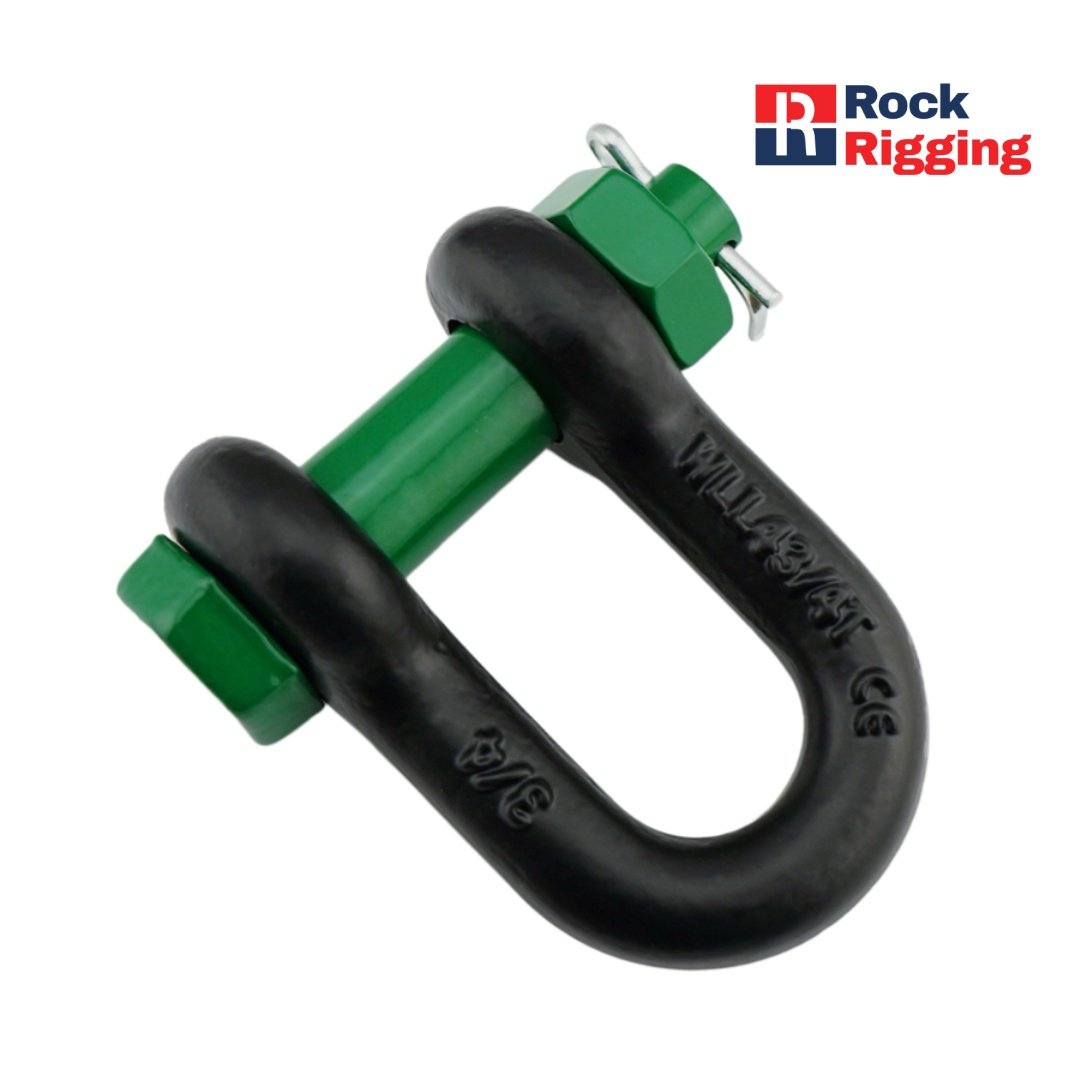

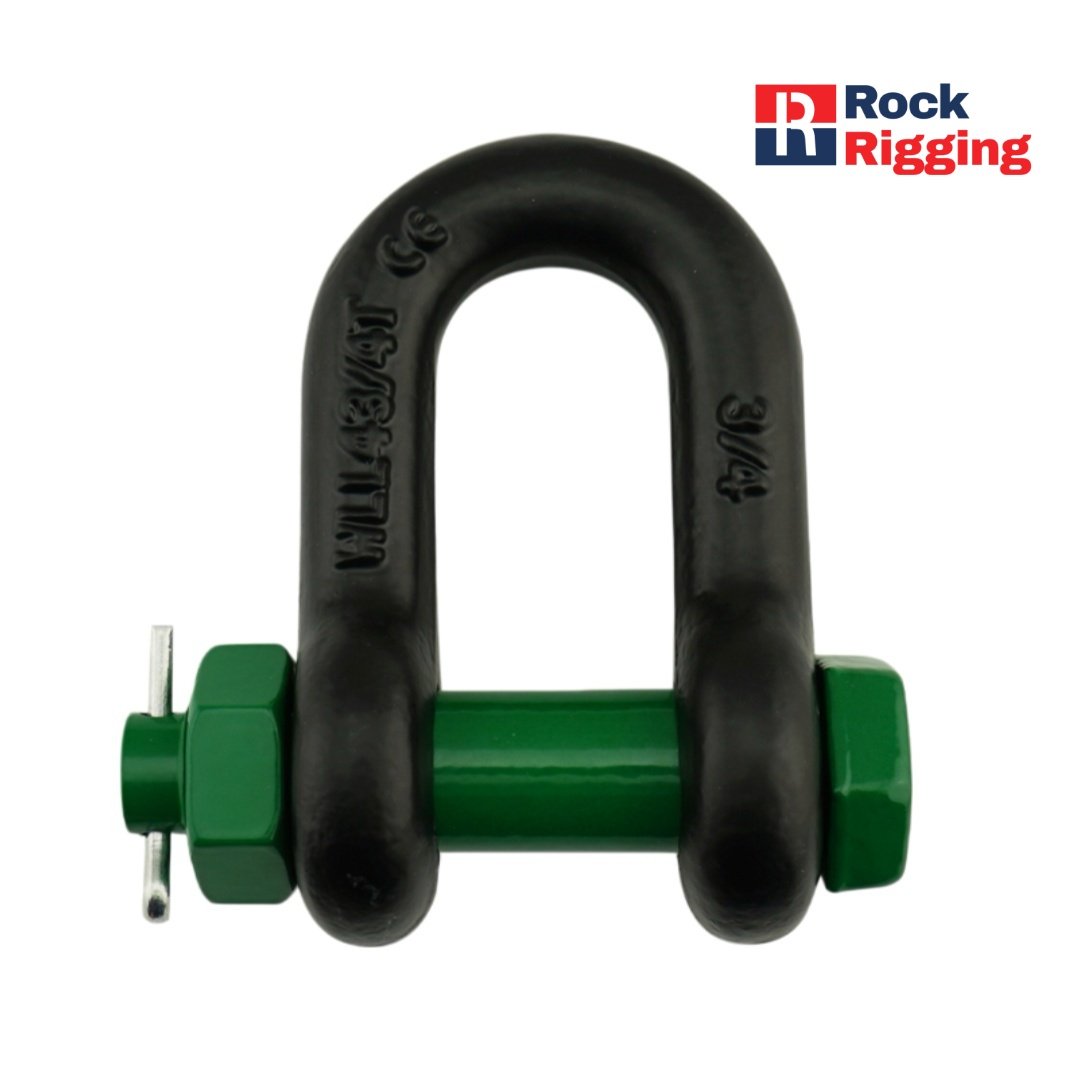

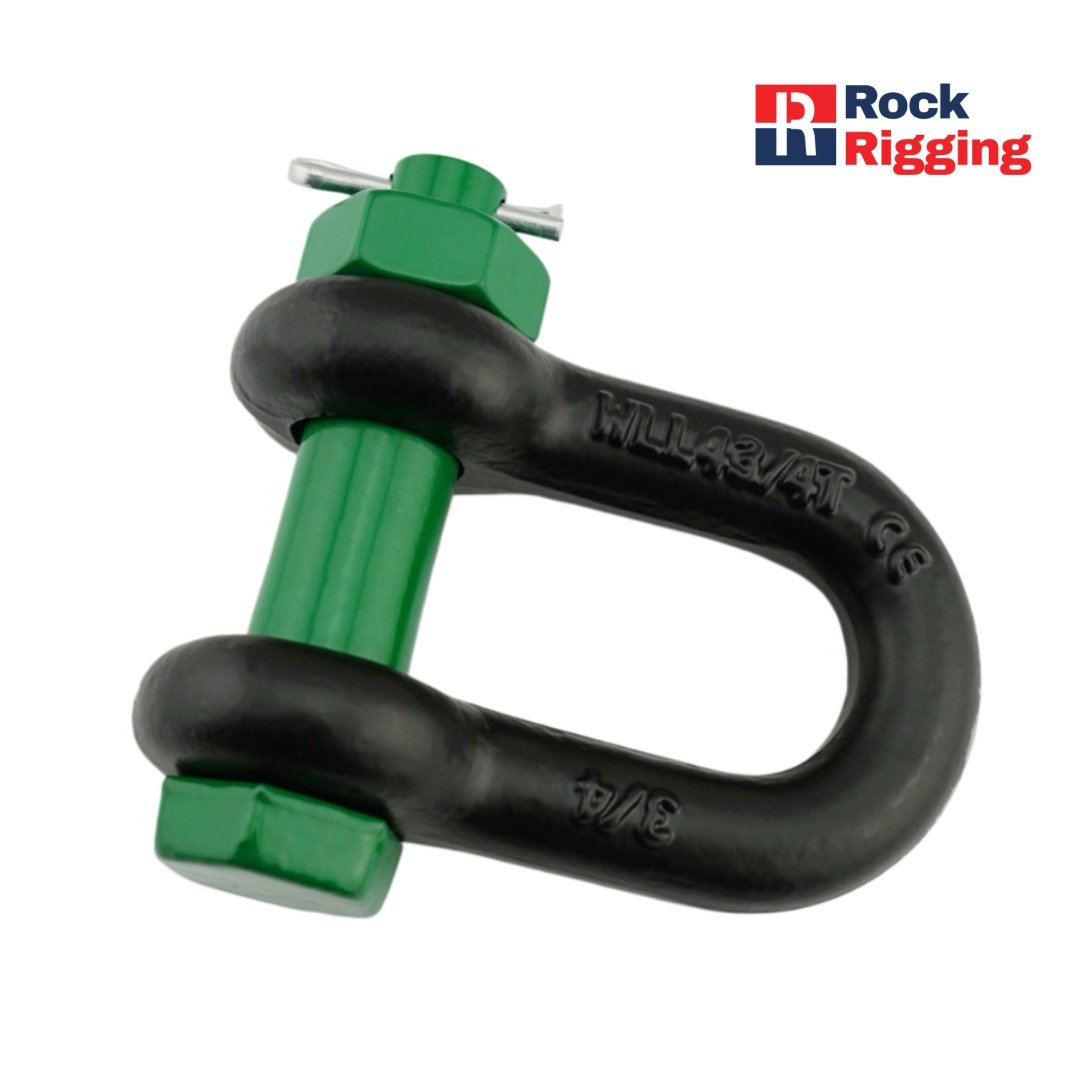

US Type Dee Shackle Powder Coating G2150 #RRSH008
US Type Dee Shackle Powder Coating G2150 #RRSH008 - 图片 2
US Type Dee Shackle Powder Coating G2150 #RRSH008 - 图片 3
US Type Dee Shackle Powder Coating G2150 #RRSH008 - 图片 4
US Type Dee Shackle Powder Coating G2150 #RRSH008 - 图片 5

US Type Dee Shackle Powder Coating G2150 #RRSH008

Features:

  • Material: Body 45#Carbon Steel, Pin 40Cr Alloy Steel
  • Technology: Drop Forged
  • Surface Finish: Powder Coated (Also available in Hot Dip Galvanized, Electro Galvanized, Dacromet )
  • Ultimate Load:4 times or 6 times the WLL
  • Heat Treatment:6 times

Main Applications:

        Lifting & Hoisting (Primary Use)
  • Factory equipment moving, mold and steel structure hoisting;
  • Port & marine cargo handling, ship rigging and vessel securing;
  • Construction engineering, bridge and steel frame installation.
       Towing & Securing
  • Truck, trailer and flatbed cargo binding;
  • Off-road vehicle recovery, heavy machinery towing.
        Industrial Rigging
  • Stage truss setup, event suspension systems;
  • Oil & gas platform, mining heavy-duty connection;
  • Wind turbine and power transmission equipment installation.
       Marine & Offshore
  • Boat mooring, anchor line connection, marine salvage lifting;
  • Offshore platform load connection with saltwater anti-rust performance.



用于产品页面
SKU： RRSH008 分类： 品牌：

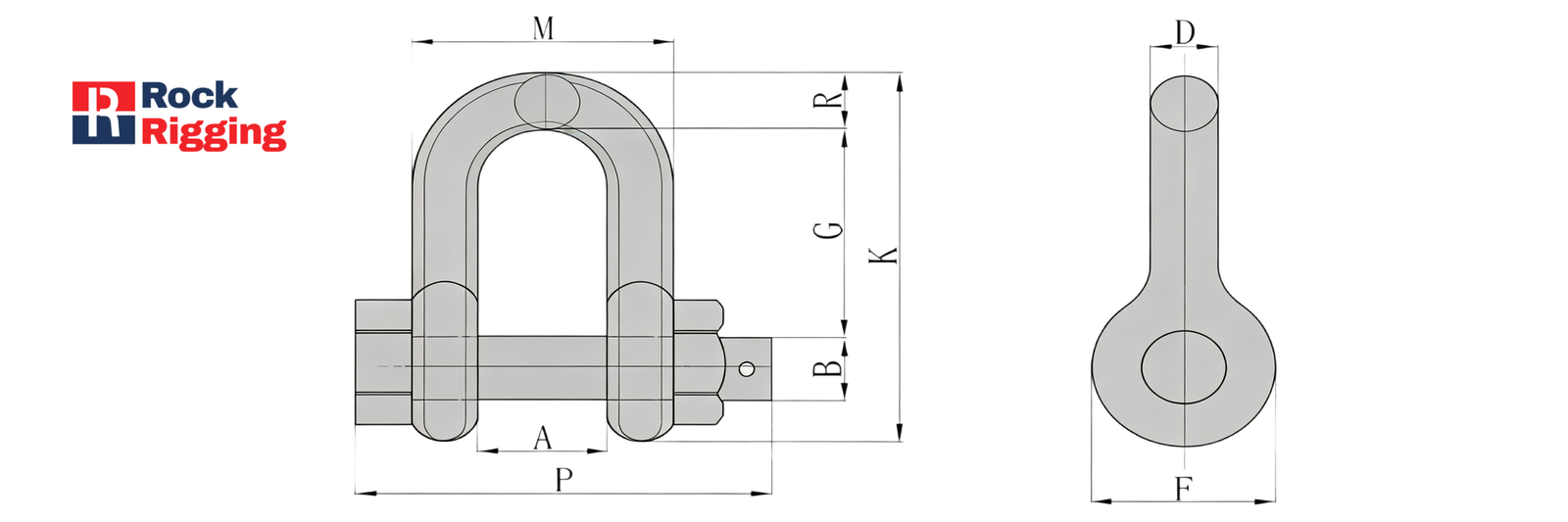

Size (in) WLL (t) A B D F G K M P R Weight(lbs)
1/4 1/2 0.47 0.31 0.25 0.62 0.91 1.59 0.97 1.56 0.25 0.13
5/16 3/4 0.53 0.38 0.31 0.75 1.07 1.91 1.15 1.82 0.31 0.23
3/8 1 0.66 0.44 0.38 0.92 1.28 2.31 1.42 2.17 0.38 0.33
7/16 1-1/2 0.75 0.50 0.44 1.06 1.48 2.67 1.63 2.51 0.44 0.49
1/2 2 0.81 0.64 0.50 1.18 1.66 3.03 1.81 2.80 0.50 0.75
5/8 3-1/4 1.06 0.77 0.63 1.50 2.04 3.76 2.32 3.56 0.63 1.47
3/4 4-3/4 1.25 0.89 0.75 1.81 2.40 4.53 2.75 4.15 0.81 2.52
7/8 6-1/2 1.44 1.02 0.88 2.10 2.86 5.33 3.20 4.82 0.97 3.85
1 8-1/2 1.69 1.15 1.00 2.38 3.24 5.94 3.69 5.39 1.00 5.55
1-1/8 9-1/2 1.81 1.25 1.13 2.68 3.61 6.78 4.07 5.90 1.25 7.60
1-1/4 12 2.03 1.40 1.25 3.00 3.97 7.50 4.53 6.69 1.38 10.81
1-3/8 13-1/2 2.25 1.53 1.38 3.31 4.43 8.28 5.01 7.21 1.50 13.75
1-1/2 17 2.38 1.66 1.50 3.62 4.87 9.05 5.38 7.73 1.62 18.50
1-3/4 25 2.88 2.04 1.75 4.19 5.82 10.97 6.38 9.33 2.21 31.40
2 35 3.25 2.30 2.10 5.00 6.82 12.74 7.25 10.41 2.36 46.75
2-1/2 55 4.12 2.80 2.63 5.68 8.07 14.85 9.38 13.58 2.63 85.00
3 85 5.00 3.25 3.00 6.50 8.56 16.87 11.00 15.13 3.50 124.25

Noted:

Units: Dimensions in inches (in); WLL in tons (t); weight in pounds (lbs)
