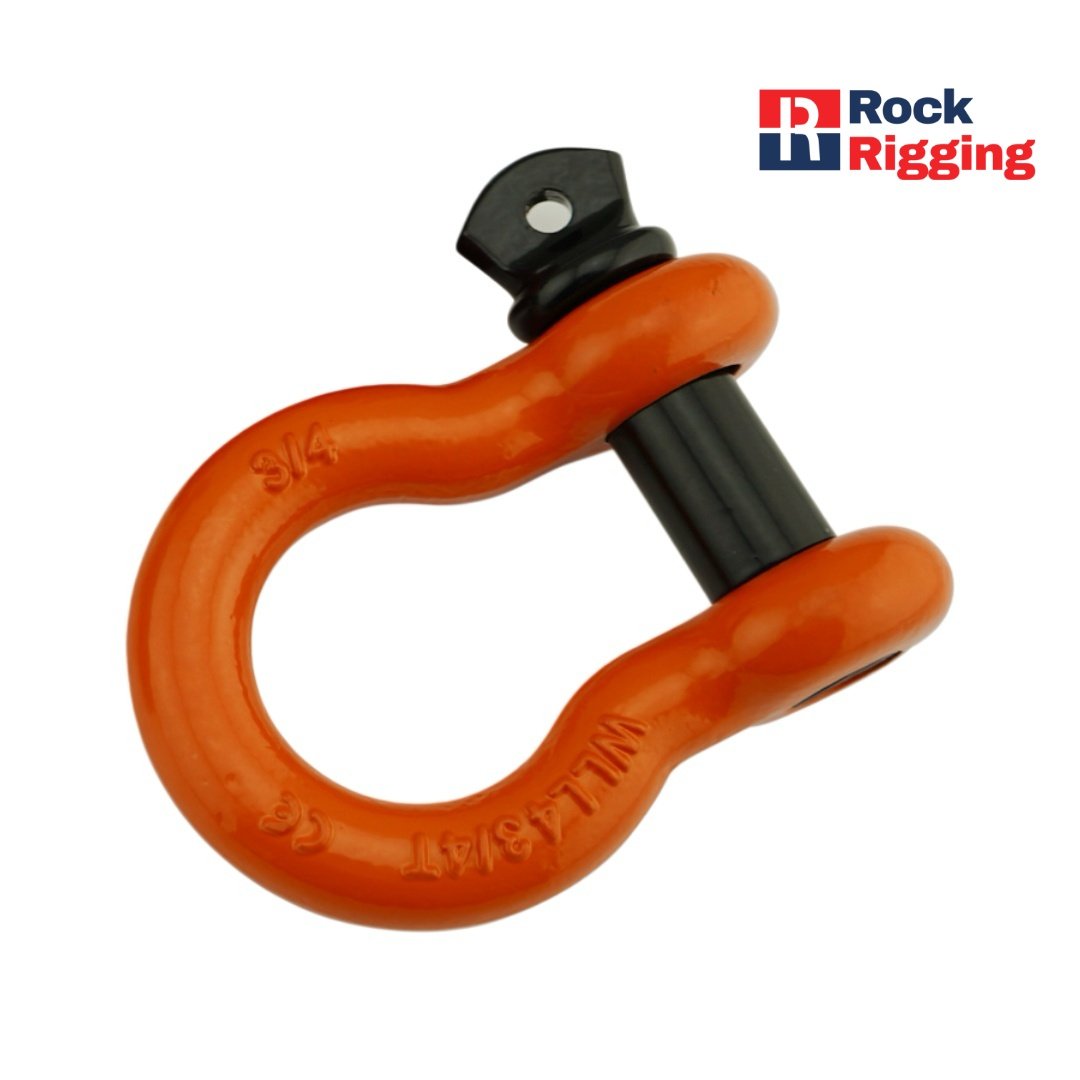

US Type Bow Shackle Powder Coating G209/G213 Orange #RRSH004O

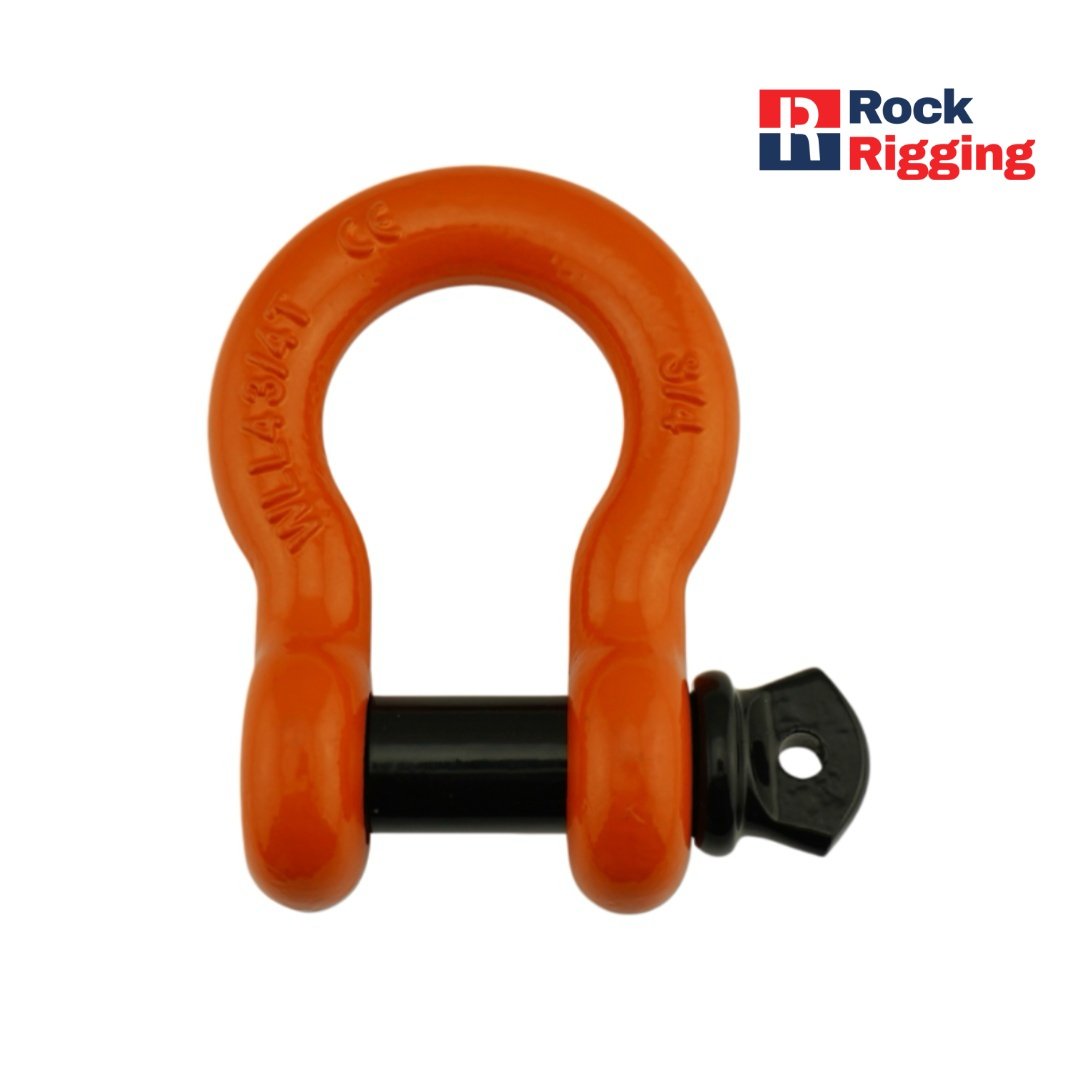

US Type Bow Shackle Powder Coating G209/G213 Orange #RRSH004O - 图片 2

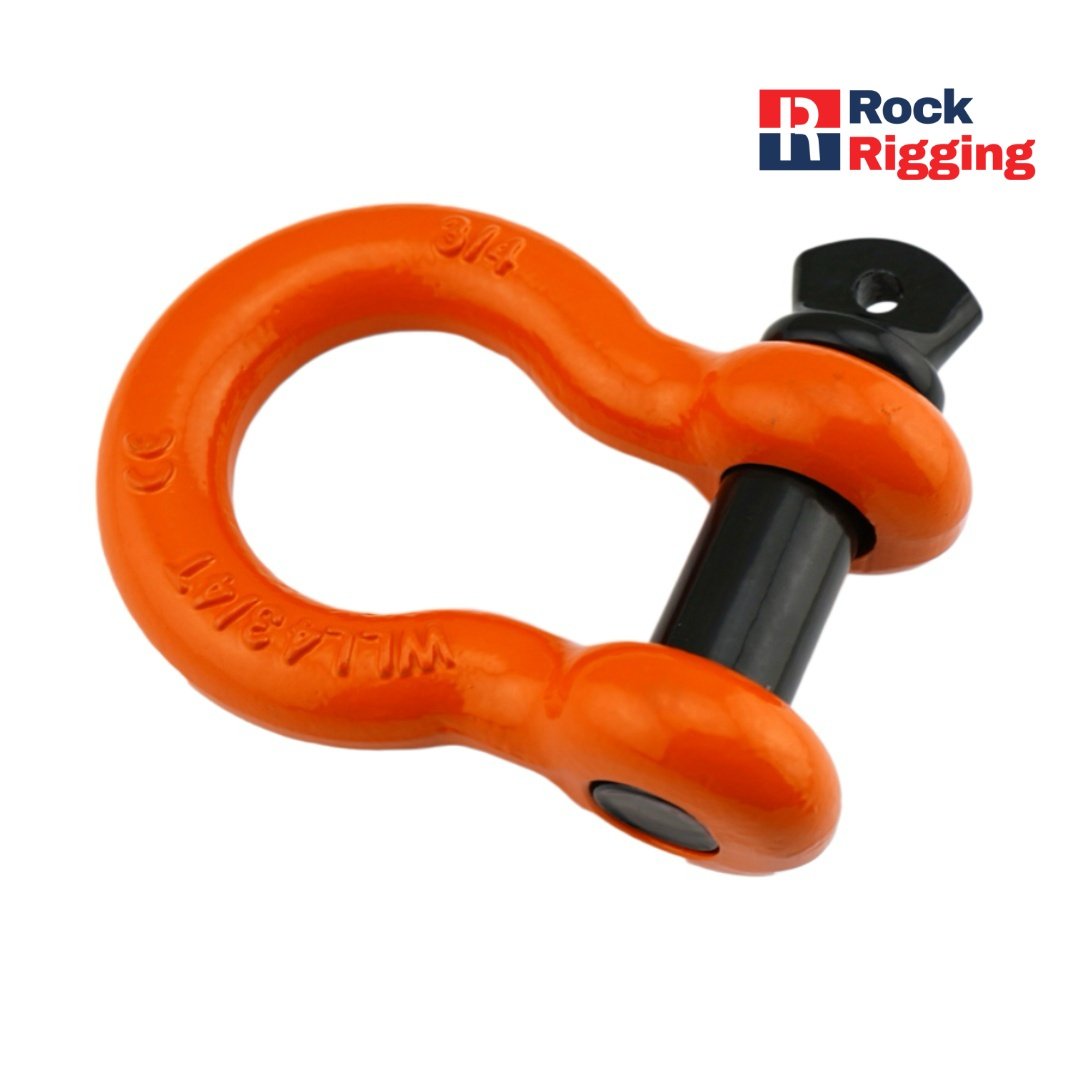

US Type Bow Shackle Powder Coating G209/G213 Orange #RRSH004O - 图片 3

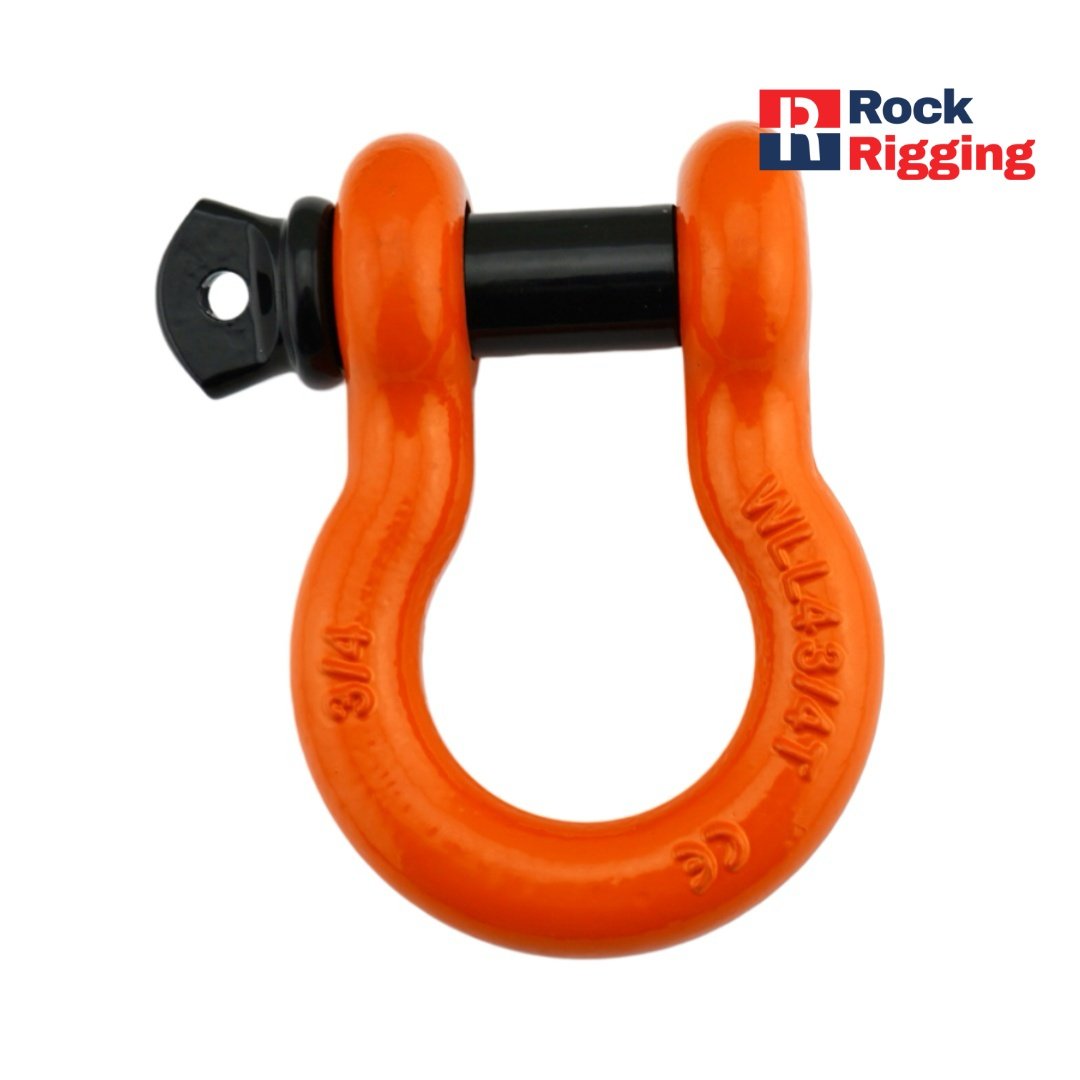

US Type Bow Shackle Powder Coating G209/G213 Orange #RRSH004O - 图片 4

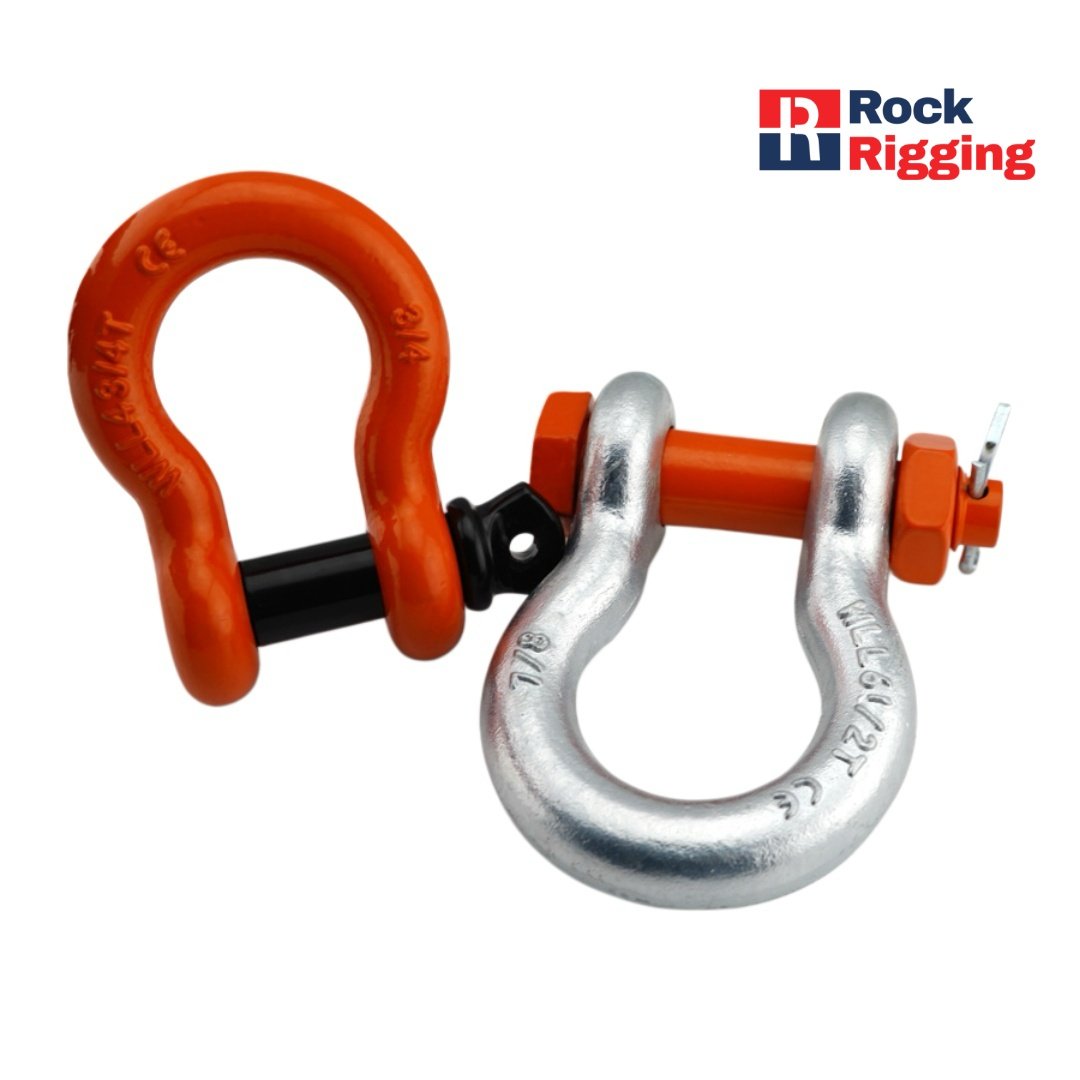

US Type Bow Shackle Powder Coating G209/G213 Orange #RRSH004O - 图片 5

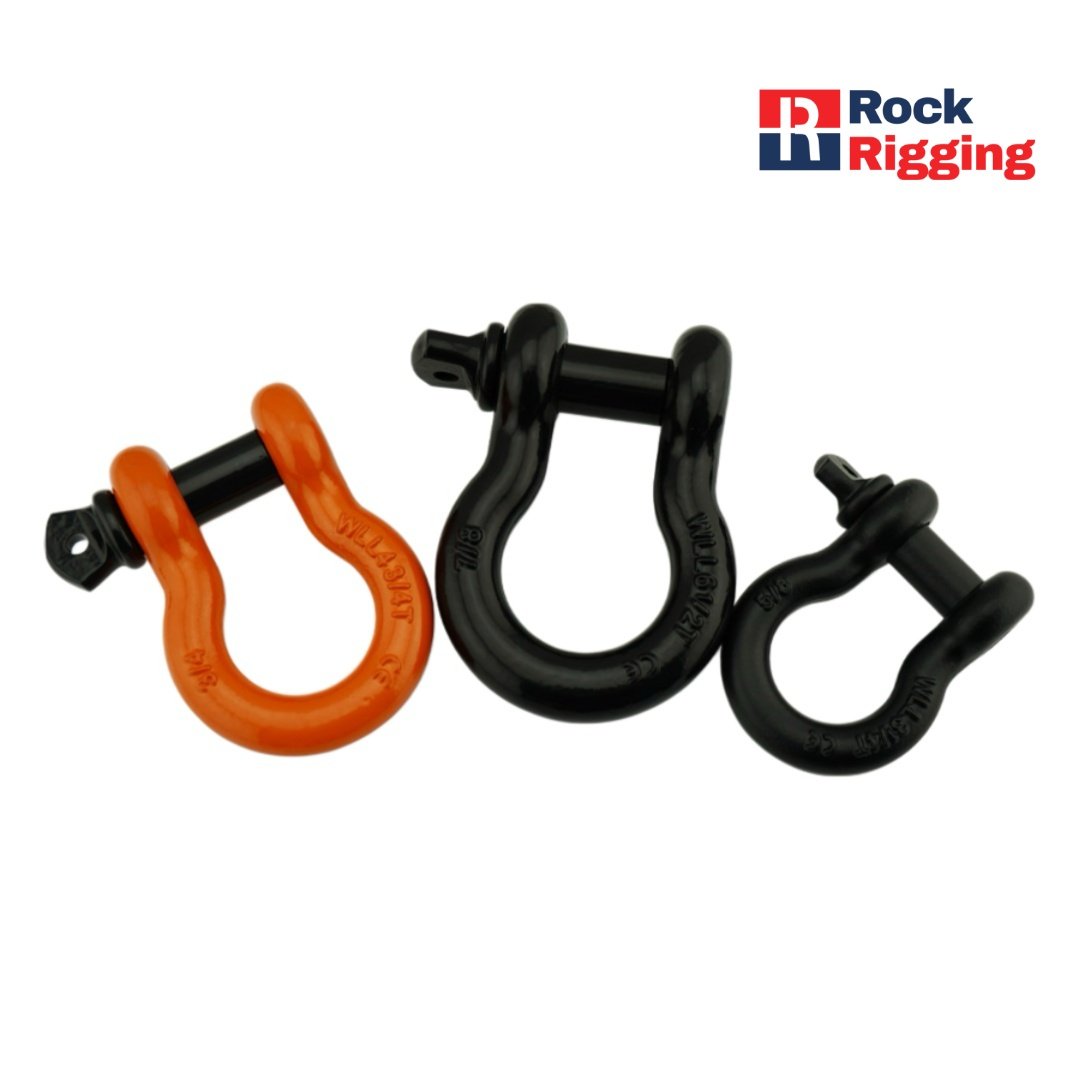

US Type Bow Shackle Powder Coating G209/G213 Orange #RRSH004O - 图片 6

US Type Bow Shackle Powder Coating G209/G213 Orange #RRSH004O

Features:

  • Material: Body 45#Carbon Steel, Pin 40Cr Alloy Steel
  • Technology: Drop Forged
  • Surface Finish: Powder Coated (Also available in Hot Dip Galvanized, Electro Galvanized, Dacromet )
  • Ultimate Load:4 times or 6 times the WLL
  • Heat Treatment:6 times

Main Applications:

        Lifting & Hoisting (Primary Use)
  • Factory equipment moving, mold and steel structure hoisting;
  • Port & marine cargo handling, ship rigging and vessel securing;
  • Construction engineering, bridge and steel frame installation.
       Towing & Securing
  • Truck, trailer and flatbed cargo binding;
  • Off-road vehicle recovery, heavy machinery towing.
        Industrial Rigging
  • Stage truss setup, event suspension systems;
  • Oil & gas platform, mining heavy-duty connection;
  • Wind turbine and power transmission equipment installation.
       Marine & Offshore
  • Boat mooring, anchor line connection, marine salvage lifting;
  • Offshore platform load connection with saltwater anti-rust performance.



用于产品页面
SKU： RRSH004O 分类： 品牌：

Size (in) WLL (t) A B C D E F G H L M N P G-209 (lbs) G-213 (lbs)
1/4 1/2 0.47 0.31 1.13 0.25 0.78 0.61 1.28 1.84 0.19 1.38 1.34 0.25 0.12 0.13
5/16 3/4 0.53 0.38 1.22 0.31 0.84 0.75 1.47 2.09 0.22 1.66 1.59 0.31 0.19 0.18
3/8 1 0.66 0.44 1.44 0.38 1.03 0.91 1.78 2.49 0.25 2.03 1.86 0.38 0.31 0.29
7/16 1 -1/2 0.75 0.50 1.69 0.44 1.16 1.06 2.03 2.91 0.31 2.38 2.13 0.44 0.38 0.38
1/2 2 0.81 0.63 1.88 0.50 1.31 1.19 2.31 3.28 0.38 2.69 2.38 0.50 0.63 0.71
5/8 3- 1/4 1.06 0.75 2.38 0.63 1.69 1.50 2.94 4.19 0.44 3.34 2.91 0.69 1.38 1.50
3/4 4 -3/4 1.25 0.88 2.81 0.75 2.00 1.81 3.50 4.97 0.50 3.97 3.44 0.81 2.25 2.32
7/8 6 -1/2 1.44 1.00 3.31 0.88 2.28 2.09 4.03 5.83 0.50 4.50 3.81 0.97 3.38 3.49
1 8 -1/2 1.69 1.13 3.75 1.00 2.69 2.38 4.69 6.56 0.56 5.07 4.53 1.06 5.32 5.00
1 -1/8 9 -1/2 1.81 1.25 4.25 1.16 2.91 2.69 5.16 7.47 0.63 5.59 5.13 1.25 6.81 6.97
1 -1/4 12 2.03 1.38 4.69 1.29 3.25 3.00 5.75 8.25 0.69 6.16 5.50 1.38 9.50 9.75
1 -3/8 13 -1/2 2.25 1.50 5.25 1.42 3.63 3.31 6.38 9.16 0.75 6.84 6.13 1.50 13.25 13.25
1 -1/2 17 2.38 1.63 5.75 1.54 3.88 3.63 6.88 10.00 0.81 7.35 6.50 1.62 17.20 17.25
1- 3/4 25 2.88 2.00 7.00 1.84 5.00 4.19 8.86 12.34 1.00 9.08 7.75 2.25 30.38 29.46
2 35 3.25 2.25 7.75 2.08 5.75 4.81 9.97 13.68 1.22 10.34 8.75 2.40 45.00 45.75
2 -1/2 55 4.13 2.75 10.50 2.71 7.25 5.69 12.87 17.84 1.38 13.00 – 3.13 85.75 –

Noted:

Units: Dimensions in inches (in); WLL in tons (t); weight in pounds (lbs)
2 1/2 Specification: No data for Series N and Series G-213; marked as “-”
