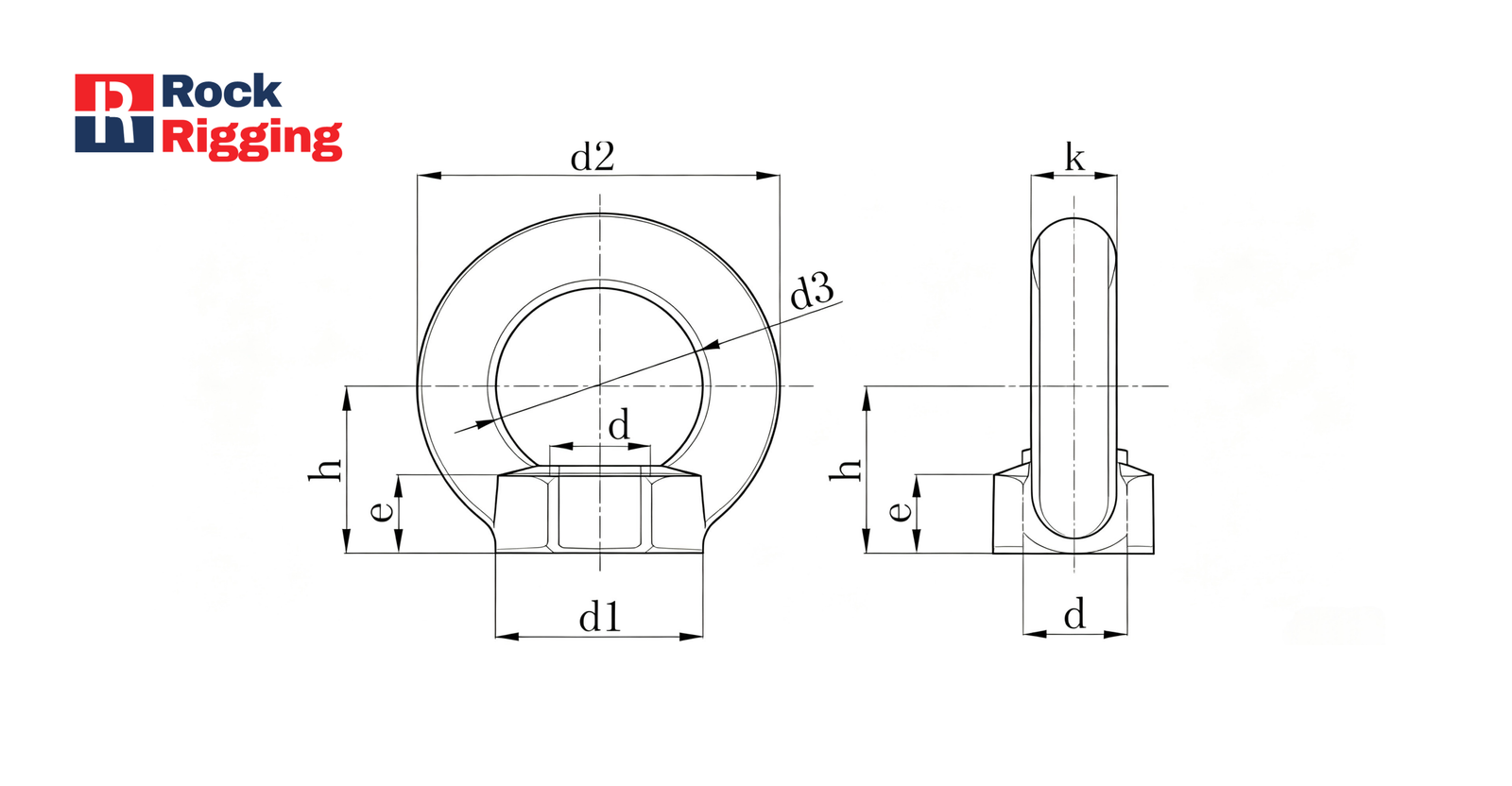

| Size(d)(mm) | WLL(t) | Weight(kg) | d1(mm) | d2(mm) | d3(mm) | e(mm) | h(mm) | k(mm) |
|---|---|---|---|---|---|---|---|---|
| M6 | 0.14 | 0.05 | 20.00 | 36.00 | 20.00 | 8.50 | 18.00 | 8.00 |
| M8 | 0.14 | 0.05 | 20.00 | 36.00 | 20.00 | 8.50 | 18.00 | 8.00 |
| M10 | 0.23 | 0.10 | 25.00 | 45.00 | 25.00 | 10.00 | 22.00 | 10.00 |
| M12 | 0.34 | 0.16 | 30.00 | 54.00 | 30.00 | 11.00 | 26.00 | 12.00 |
| M16 | 0.70 | 0.24 | 35.00 | 63.00 | 35.00 | 13.00 | 31.00 | 14.00 |
| M20 | 1.20 | 0.35 | 40.00 | 72.00 | 40.00 | 16.00 | 35.00 | 16.00 |
| M22 | 1.50 | 0.32 | 45.00 | 81.00 | 45.00 | 18.00 | 40.00 | 18.00 |
| M24 | 1.80 | 0.75 | 50.00 | 90.00 | 50.00 | 20.00 | 45.00 | 20.00 |
| M27 | 2.50 | 0.73 | 50.00 | 90.00 | 50.00 | 20.00 | 45.00 | 20.00 |
| M30 | 3.60 | 1.40 | 65.00 | 108.00 | 60.00 | 25.00 | 55.00 | 24.00 |
| M33 | 4.30 | 1.30 | 65.00 | 108.00 | 60.00 | 25.00 | 55.00 | 24.00 |
| M36 | 5.10 | 2.20 | 75.00 | 126.00 | 70.00 | 30.00 | 64.00 | 28.00 |
| M42 | 7.00 | 3.10 | 85.00 | 144.00 | 80.00 | 35.00 | 74.00 | 32.00 |
| M48 | 8.60 | 5.01 | 100.00 | 166.00 | 90.00 | 40.00 | 84.00 | 38.00 |
| M56 | 11.50 | 6.69 | 110.00 | 184.00 | 100.00 | 45.00 | 94.00 | 42.00 |
| M64 | 16.00 | 9.30 | 120.00 | 206.00 | 110.00 | 50.00 | 104.00 | 48.00 |
Noted:
Units: Dimensions in millimeters (mm); WLL in tons (t); weight in pounds (Kg)
