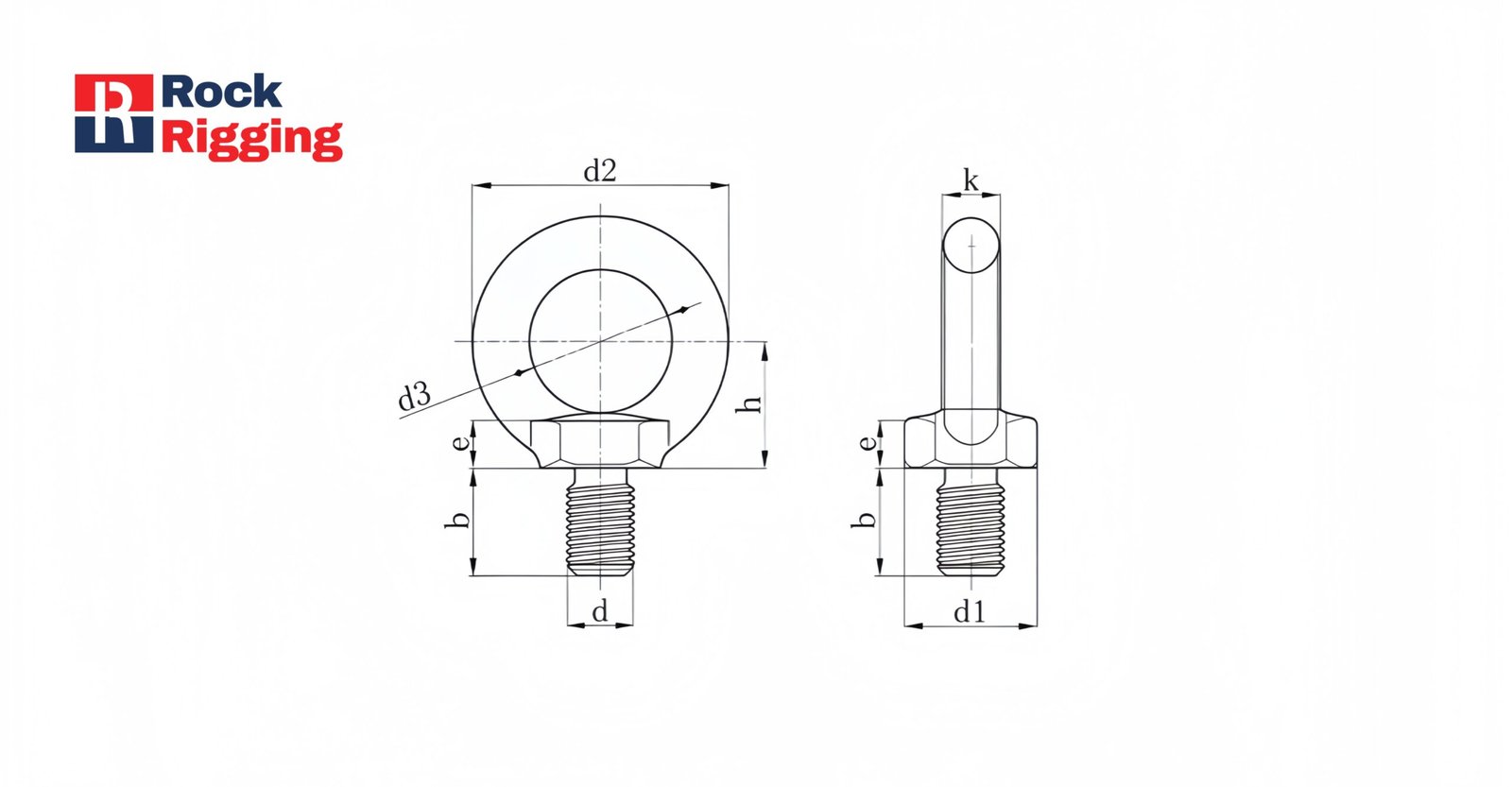

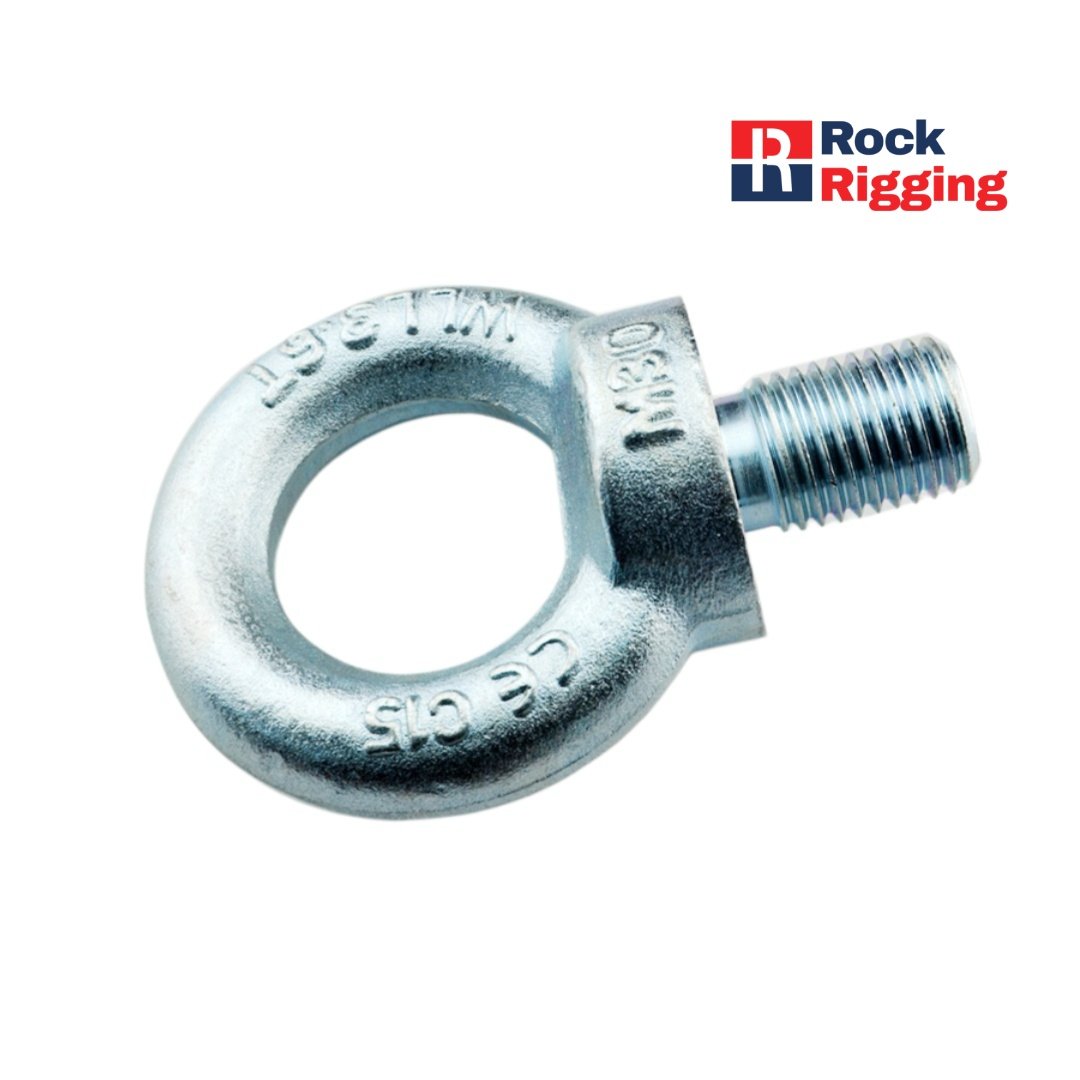

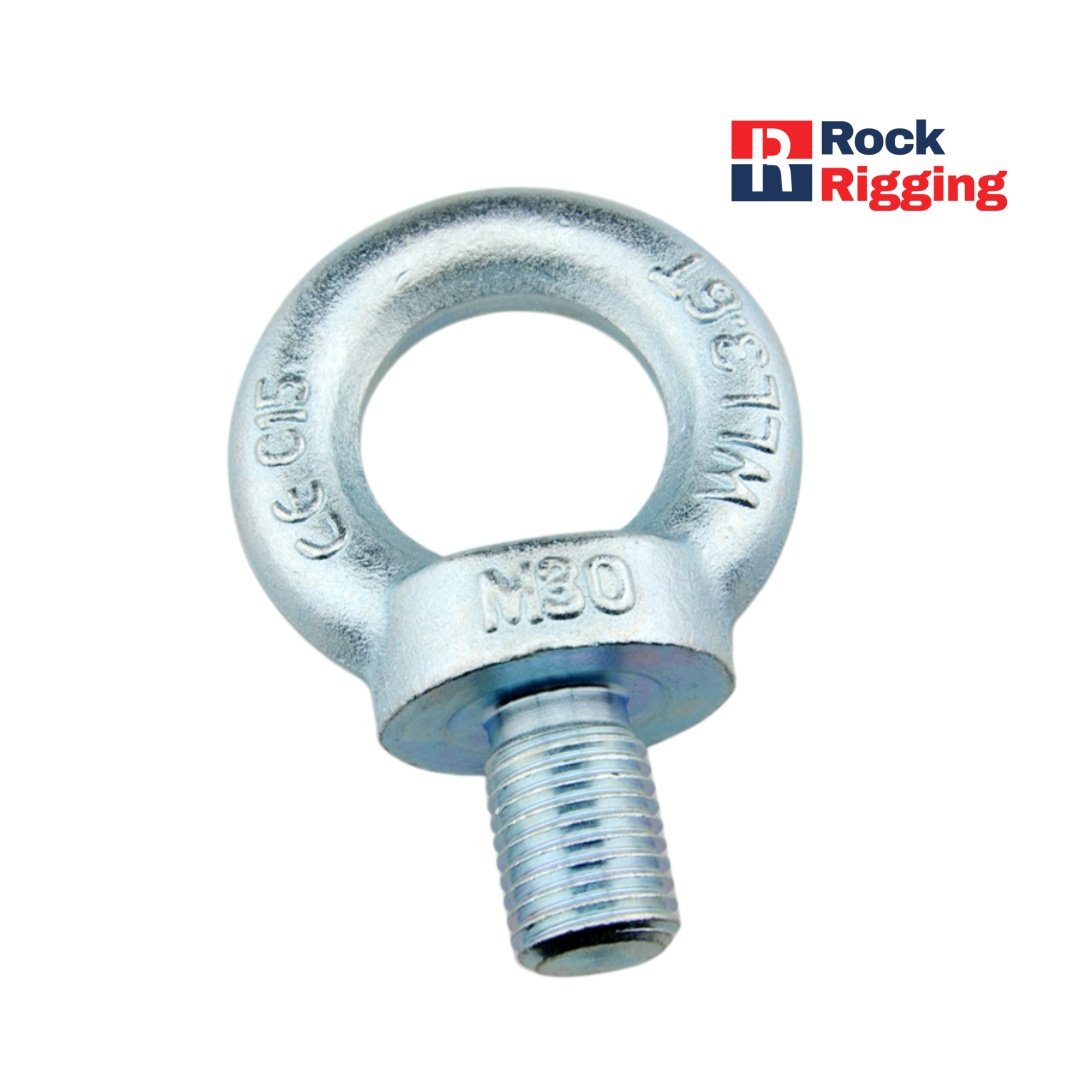

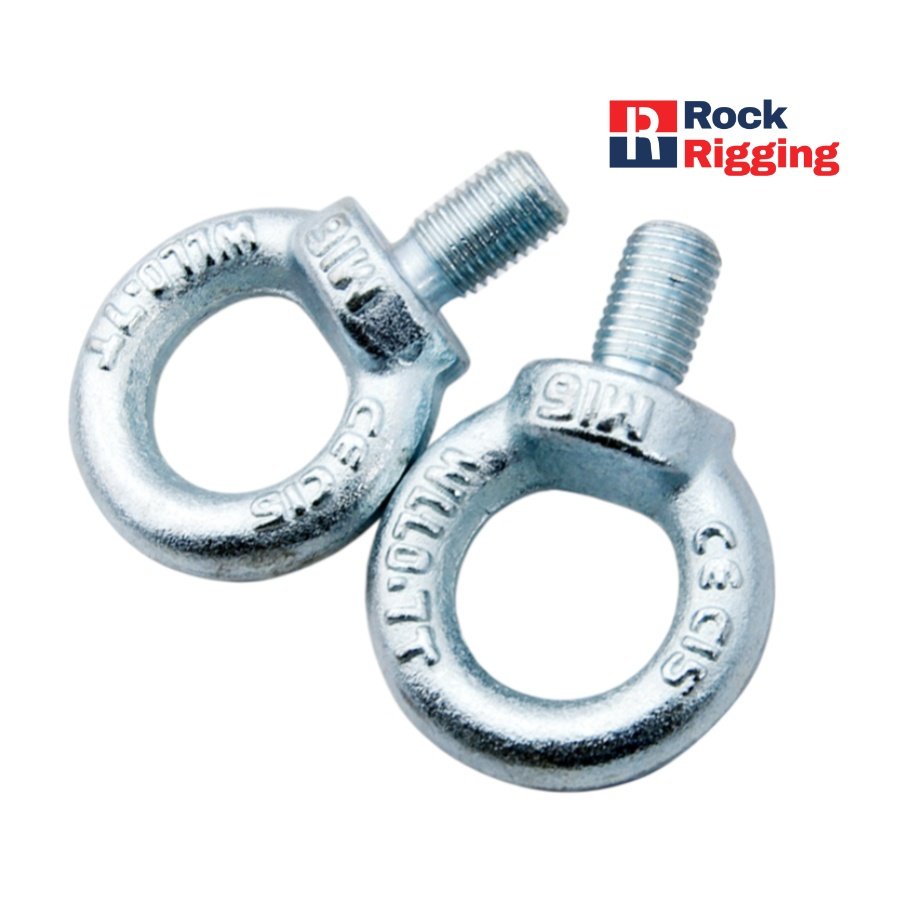

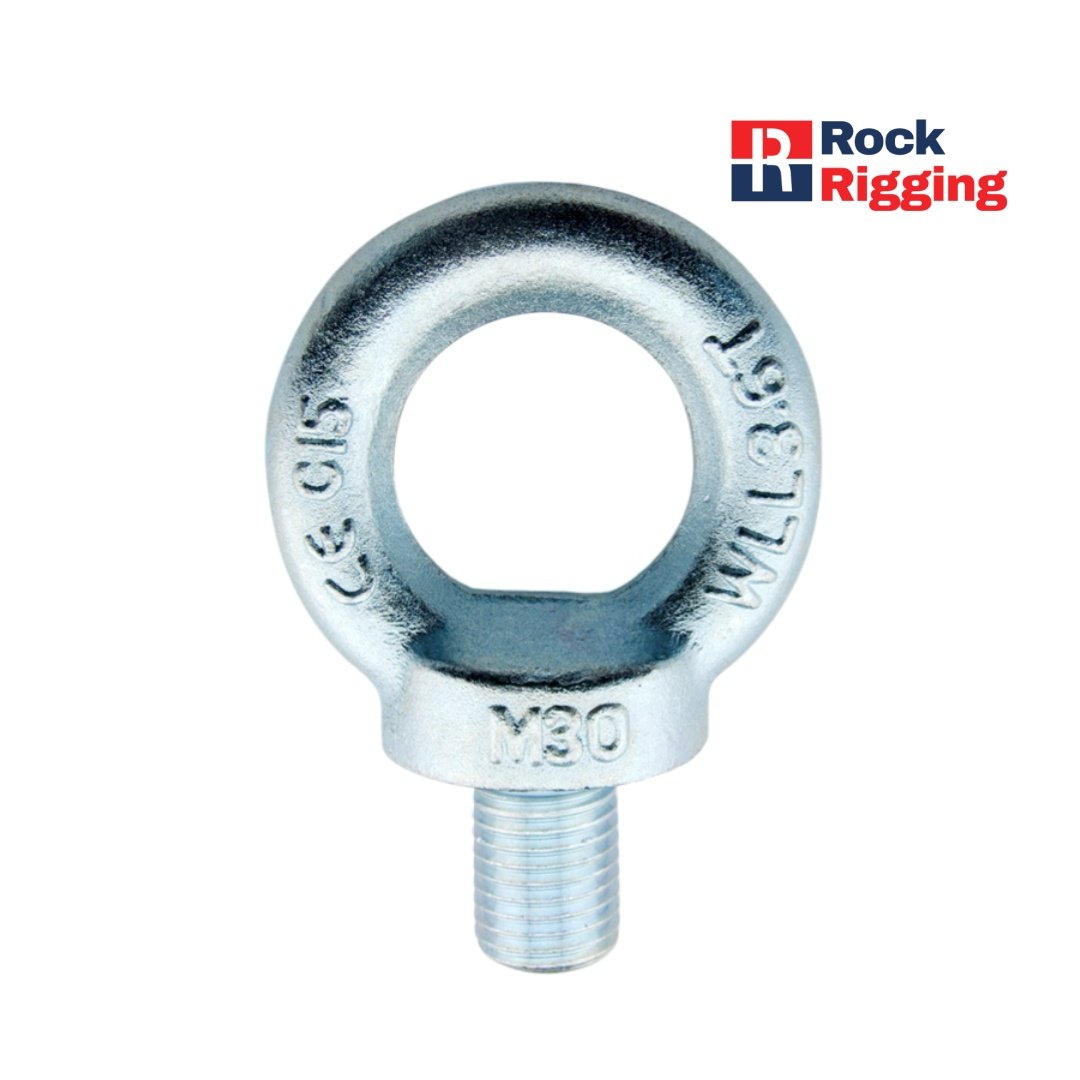

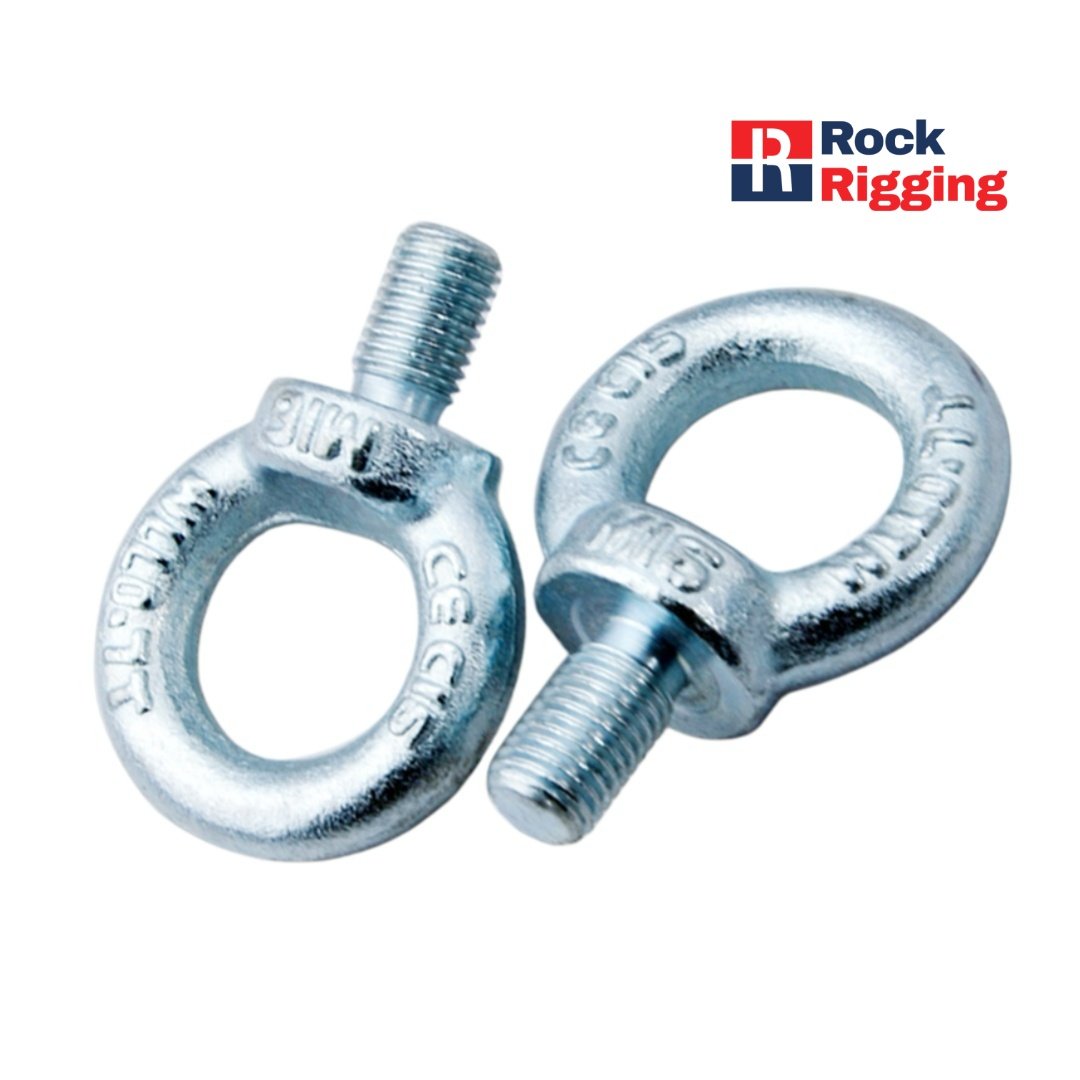

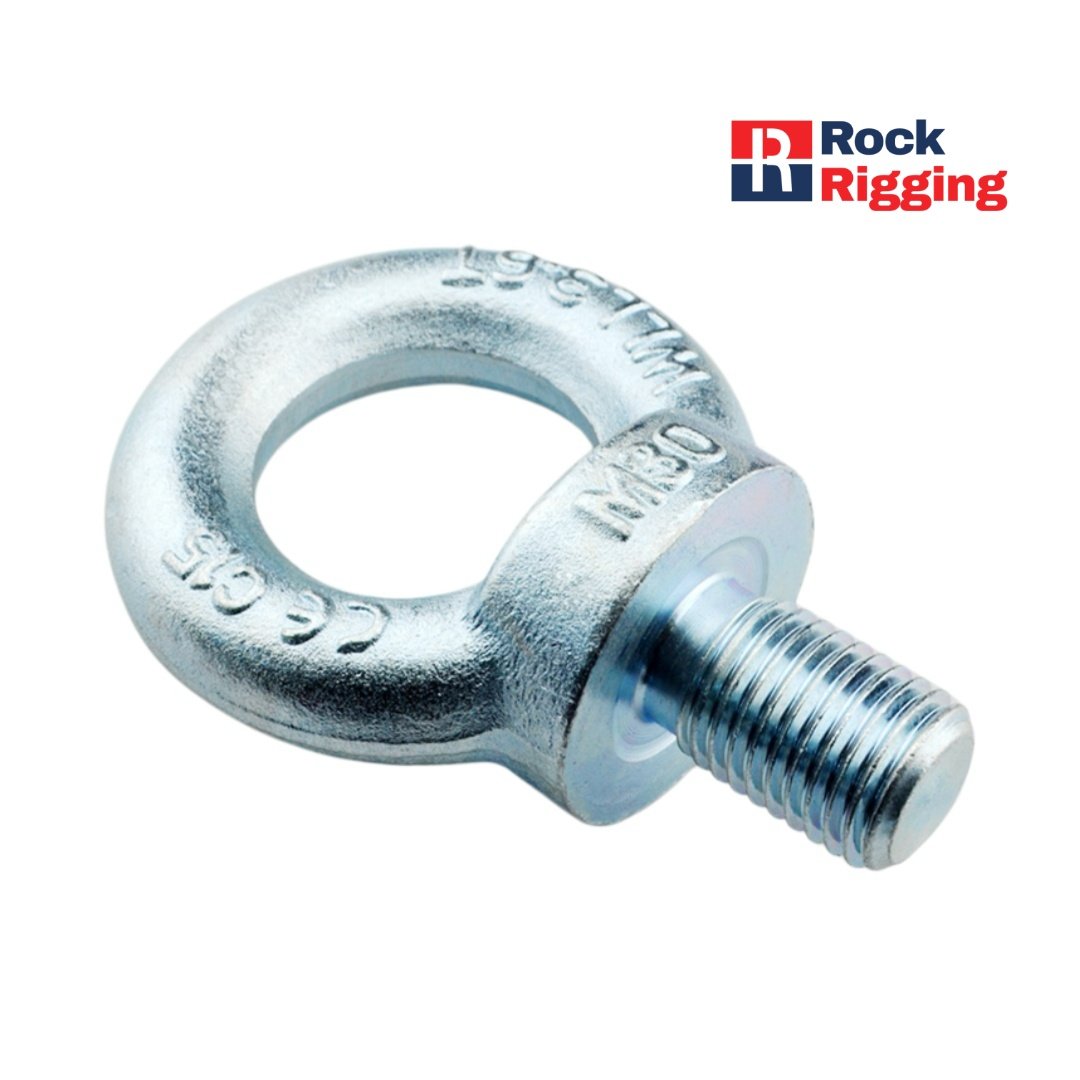

| Size(d)(mm) | WLL(t) | Weight(kg) | d1 | d2 | d3 | b | e | h | k |
|---|---|---|---|---|---|---|---|---|---|
| M6 | 0.14 | 0.06 | 17.00 | 28.00 | 16.00 | 13.00 | 6.00 | 17.00 | 6.00 |
| M8 | 0.14 | 0.06 | 20.00 | 36.00 | 20.00 | 13.00 | 6.00 | 18.00 | 8.00 |
| M10 | 0.23 | 0.11 | 25.00 | 45.00 | 25.00 | 17.00 | 8.00 | 22.00 | 10.00 |
| M12 | 0.34 | 0.17 | 30.00 | 54.00 | 30.00 | 20.50 | 10.00 | 26.00 | 12.00 |
| M14 | 0.49 | 0.19 | 35.00 | 63.00 | 35.00 | 28.00 | 12.00 | 30.00 | 14.00 |
| M16 | 0.70 | 0.28 | 35.00 | 63.00 | 35.00 | 27.00 | 12.00 | 31.00 | 14.00 |
| M20 | 1.20 | 0.45 | 40.00 | 72.00 | 40.00 | 30.00 | 14.00 | 35.00 | 16.00 |
| M22 | 1.50 | 0.49 | 45.00 | 81.00 | 45.00 | 35.00 | 14.00 | 40.00 | 18.00 |
| M24 | 1.80 | 0.88 | 50.00 | 90.00 | 50.00 | 38.00 | 18.00 | 45.00 | 20.00 |
| M27 | 2.50 | 0.93 | 50.00 | 90.00 | 50.00 | 38.00 | 18.00 | 45.00 | 20.00 |
| M30 | 3.60 | 1.60 | 65.00 | 108.00 | 60.00 | 45.00 | 22.00 | 55.00 | 24.00 |
| M33 | 4.30 | 1.70 | 65.00 | 108.00 | 60.00 | 45.00 | 22.00 | 55.00 | 24.00 |
| M36 | 5.10 | 2.67 | 75.00 | 126.00 | 70.00 | 54.00 | 26.00 | 64.00 | 28.00 |
| M42 | 7.00 | 4.14 | 85.00 | 144.00 | 80.00 | 63.00 | 30.00 | 74.00 | 32.00 |
| M48 | 8.60 | 6.70 | 100.00 | 166.00 | 90.00 | 70.00 | 35.00 | 84.00 | 38.00 |
| M56 | 11.50 | 8.70 | 110.00 | 184.00 | 100.00 | 78.00 | 38.00 | 94.00 | 42.00 |
| M64 | 16.00 | 12.50 | 120.00 | 206.00 | 110.00 | 90.00 | 42.00 | 104.00 | 48.00 |
Noted:
Units: Dimensions in millimeters (mm); WLL in tons (t); weight in pounds (Kg)
